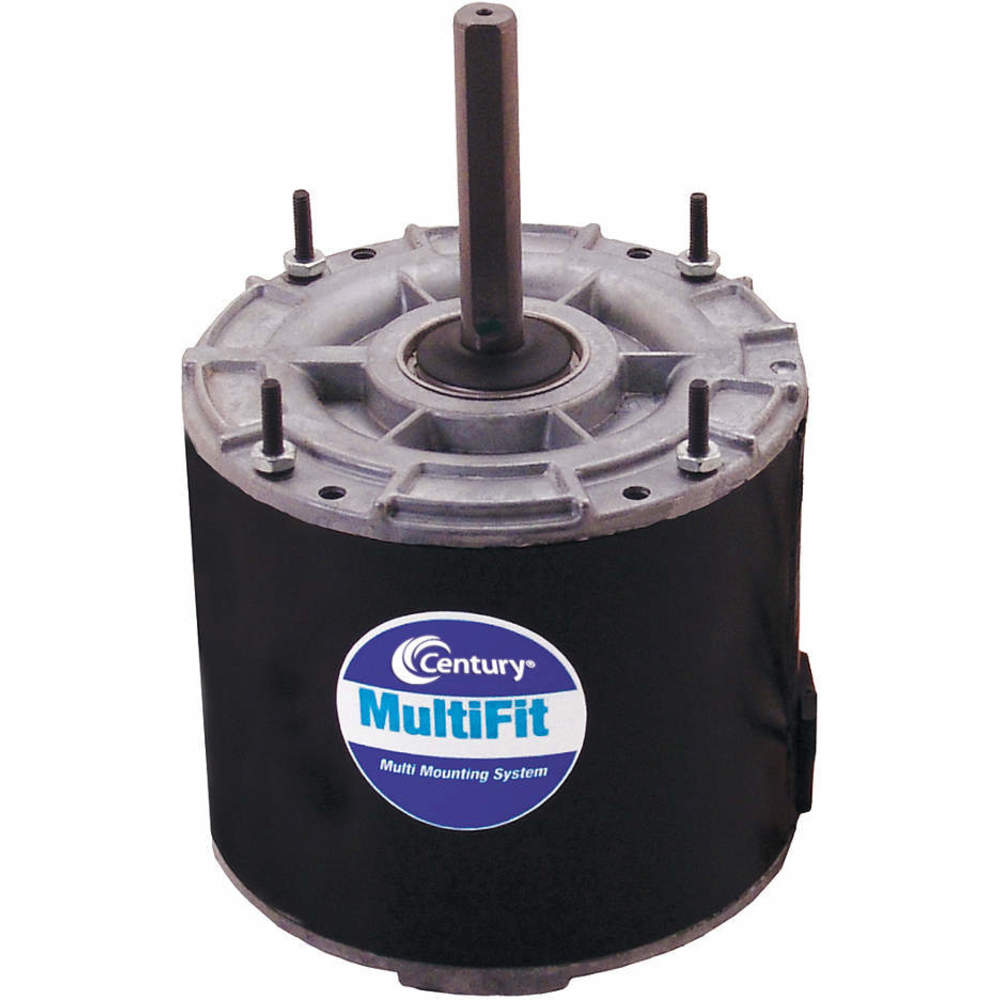

CENTURY 9724 Condenser Fan Motor 1/6 To 1/4hp 1625 Rpm
Get it by Wednesday, Dec 24
10.00% off
€295.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Condenser Fan Motor |
| Ambient Temp. | 60°C |
| Bearing Type | Ball |
| Body Dia. | 5" |
| Bolt Circle Dia. | 4 5/8" |
| Capacitor Required | 2MDV4 |
| Dia. | 5" |
| Diameter | 5" |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure Type | Totally Enclosed Air Over |
| Features | Extend Studs Shaft End And Opposite Shaft End, Thermally Protected |
| Frame | 42 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.6A |
| Hp | 1/6 hp to 1/4 hp |
| Insulation Class | Class B |
| Lead Length | 36" |
| Length | 7 1/2" |
| Length Less Shaft | 4 1/2" |
| Max. Ambient Temp. | 60°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Stud |
| Motor Mounting Type | Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Length | 1/2" |
| Mounting Stud Size | #8-32 |
| Mounting Type | Stud |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Number Of Studs | 4 |
| Output Wattage | 100 W |
| Overall Length | 7 1/2" |
| Phase | 1 |
| Power | 100 W |
| Power | 0.1 kW |
| Rpm | 1625 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 3" |
| Shaft Orientation | All Angle |
| Shaft Type | Flat |
| Stud Quantity | 4 |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
| Weight | 11 lbs. |
Shipping Info:
| Ship weight (kg) | 11 |
| Ship height (cm) | 14.76 |
| Ship length (cm) | 22.53 |
| Ship width (cm) | 14.76 |
| HS code | 8501404040 |
| Country of Origin | IN |
Product Variants
| Product | Model | Voltage | Motor Design | Motor Mounting Type | Motor Mounting Position | Shaft Length | No. Of Speeds | Phase | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FE1016SF | 208-230V AC | Permanent Split Capacitor | Stud | All Angle | 6" | 1 | 1 | 1/6 hp | €215.92 | |
 |
FE1018SF | 208-230V AC | Permanent Split Capacitor | Stud | All Angle | 6 1/2" | 1 | 1 | 1/6 hp | €353.82 | |
|
FE1028SF | 208-230V AC | Permanent Split Capacitor | Stud | All Angle | 6 1/2" | 1 | 1 | 1/4 hp | €363.43 | |
|
FE1058SF | 208-230V AC | Permanent Split Capacitor | Stud | All Angle | 6 1/2" | 1 | 1 | 1/2 hp | €469.51 | |
 |
FEH1056SF | 460V AC | Permanent Split Capacitor | Stud | All Angle | 6 1/2" | 1 | 1 | 1/2 hp | €338.83 | |
 |
FC3056F | 200-230/460V AC | 3-Phase | Band | Vertical Shaft Up | 3 7/8" | 1 | 3 | 1/2 hp | €611.12 | |
 |
3LU93 | 208-230V AC | Permanent Split Capacitor | Stud | All Angle | 6" | 2 | 1 | 1/6 hp | €315.80 |
