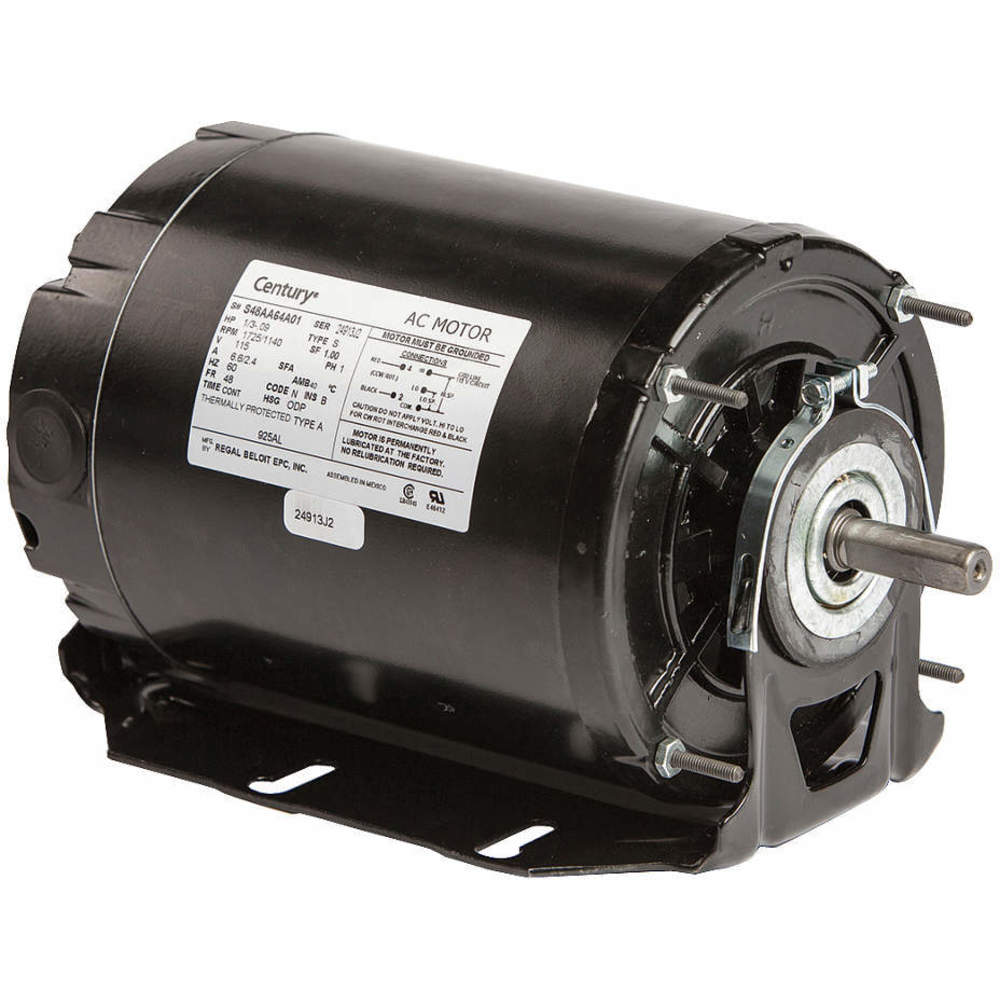

CENTURY 925AL Motor Split Phase 1/3 Hp 1725/1140 115v 48 Odp
Get it by Wednesday, Dec 24
10.00% off
€357.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Belt Drive Motor |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Footnotes | 26 |
| Frame | 48 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6.6/2.4A |
| Hp | 1/3 hp, 1/11 hp |
| Insulation Class | Class B |
| Length Less Shaft | 8 3/4" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725/1140 RPM |
| No. Of Speeds | 2 |
| Number Of Speeds | 2 |
| Overall Length | 10 5/16" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/2" |
| Ring To Ring Center | 8 3/16" |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 9/16" |
| Standards | Csa, Ul Recognized |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Weight | 18 lbs. |
Shipping Info:
| Ship weight (kg) | 18 |
| Ship height (cm) | 18.57 |
| Ship length (cm) | 30.18 |
| Ship width (cm) | 14.76 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Rpm Range | Nameplate Rpm | Motor Enclosure Design | No. Of Speeds | Motor Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
889A | 115V AC | 1/3 hp | 1701-1800 RPM | 1725 RPM | Open Dripproof | 1 | Rigid Base | 48 | - | RFQ
|
 |
AR2054 | 115V AC | 1/2 hp | 1701-1800 RPM | 1725 RPM | Open Dripproof | 1 | Ring | 48 | €344.04 | |
 |
RS2014 | 115V AC | 1/6 hp | 1701-1800 RPM | 1725 RPM | Open Dripproof | 1 | Cradle Base | 56Z | €347.71 | |
 |
F344V1 | 115/230V AC | 1/3 hp | 3001-3600 RPM | 3450 RPM | Open Dripproof | 1 | Cradle Base | 48Z | €351.51 | |
 |
RB2014 | 115V AC | 1/6 hp | 1701-1800 RPM | 1725 RPM | Open Dripproof | 1 | Cradle Base | 48Z | €262.40 | |
 |
GF2014 | 115V AC | 1/6 hp | 1701-1800 RPM | 1725 RPM | Open Dripproof | 1 | Cradle Base | 48 | €304.03 | |
 |
ARB2024L2 | 115V AC | 1/4 hp, 1/12 hp | 1701-1800 RPM | 1725/1140 RPM | Totally Enclosed Air Over | 2 | Cradle Base | 56Z | €683.49 |
