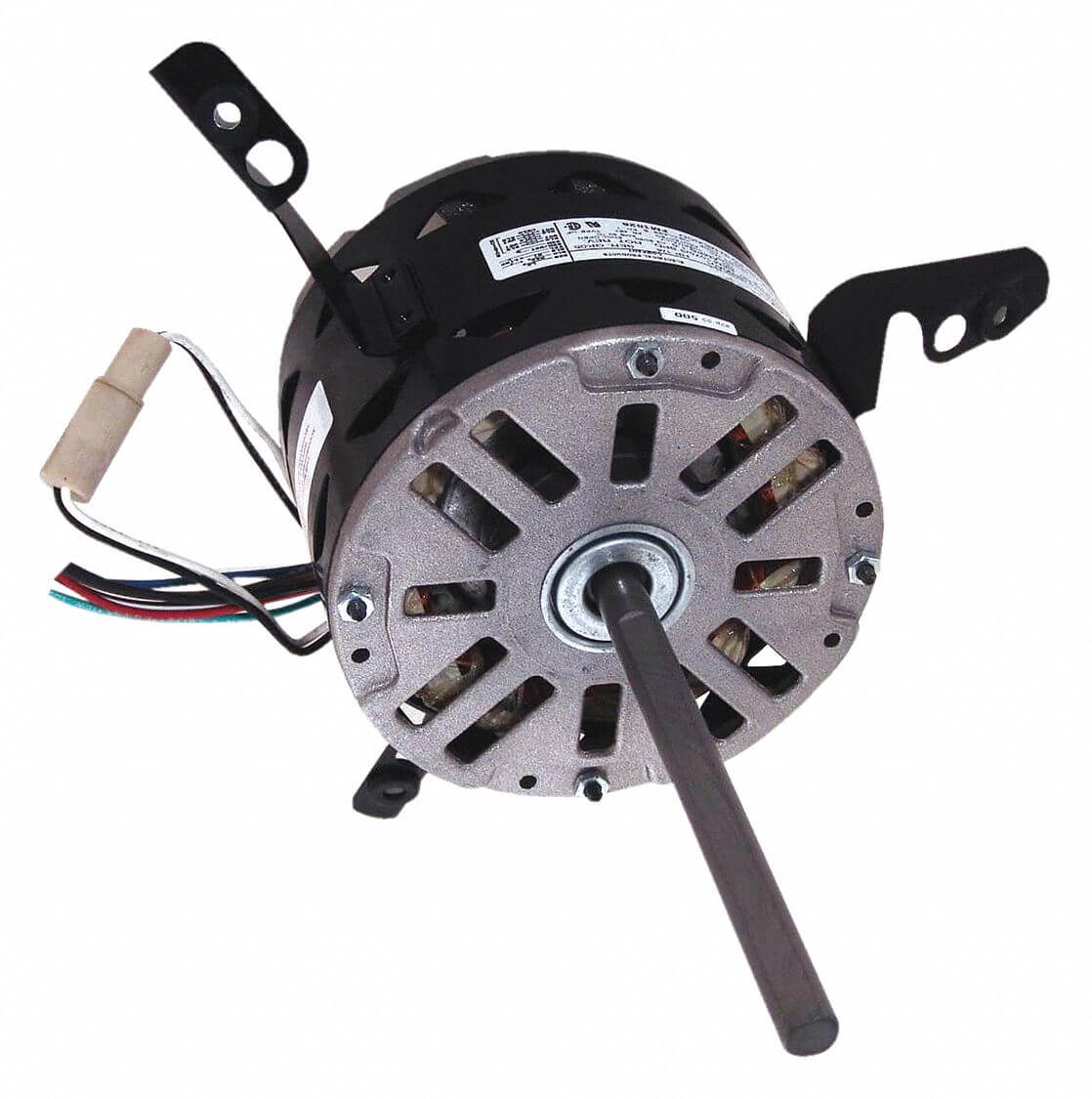

CENTURY 753A Motor Psc 1/3 Hp 1075 Rpm 115v 48y Oao
Get it by Wednesday, Dec 24
10.00% off
€275.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Bearing Type | Sleeve |
| Body Dia. | 5 5/8" |
| Capacitor Included | No |
| Capacitor Required | 2MDV4 |
| Duty Cycle | Continuous |
| Frame | 48 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 5.06A |
| Hp | 1/3 hp |
| Includes | Reversing Plug |
| Insulation Class | Class B |
| Lead Length | 25" |
| Length Less Shaft | 4 7/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | T Flex |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Room Air Conditioner |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting | Torsion Flex Bracket |
| Mounting Holes | 4 |
| Mounting Type | Torsion Flex Bracket |
| Nameplate Rpm | 1075 RPM |
| No. Of Mounting Holes | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 4 |
| No. Of Studs | 4 |
| Number Of Shafts | 1 |
| Number Of Studs | 4 |
| Overall Length | 10 3/8" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 5 1/2" |
| Shaft Type | Flat |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Weight | 17 lbs. |
Shipping Info:
| Ship weight (kg) | 17 |
| Ship height (cm) | 32.54 |
| Ship length (cm) | 32.69 |
| Ship width (cm) | 32.54 |
| HS code | 8501404040 |
| Country of Origin | IN |
Product Variants
| Product | Model | Voltage | Hp | No. Of Speeds | Frame | Shaft Length | Phase | Motor Application | Motor Sub Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

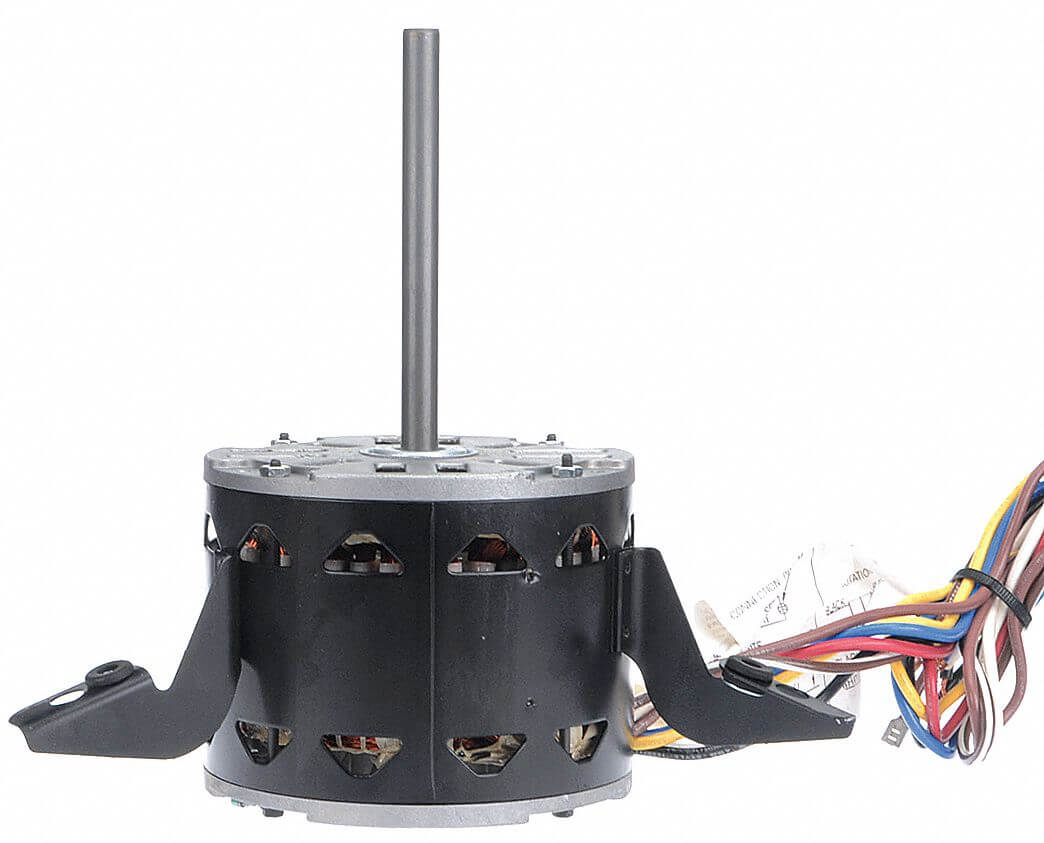

752A | 115V AC | 1/4 hp | 4 | 48 | 5 1/2" | Single | OEM Replacement | Direct Drive Fan/Blower | €281.81 | |
 |

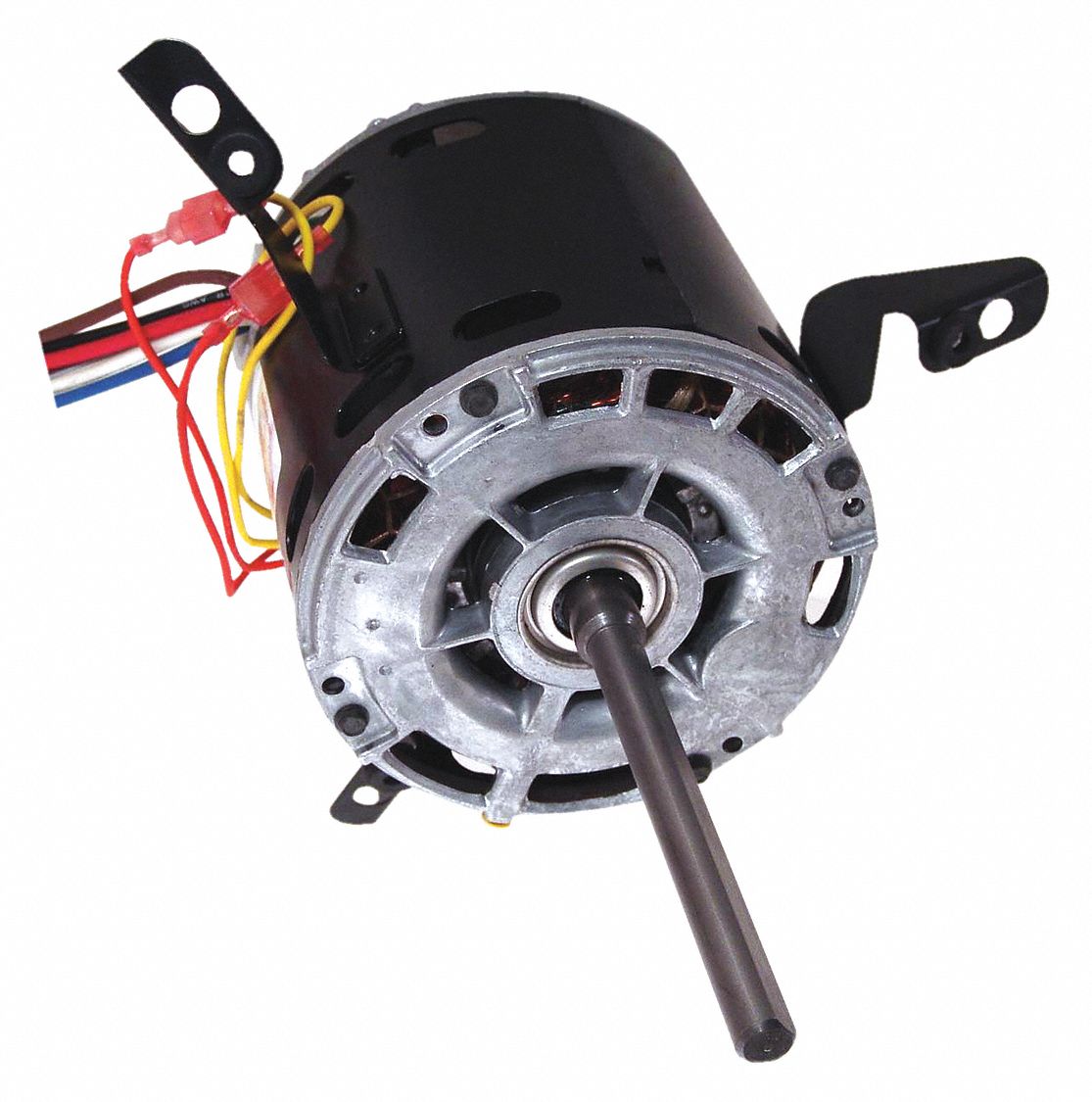

9647 | 115V AC | 1/6 hp | 3 | 48Y | 5 1/2" | 1 | HVAC/R | Room Air Conditioner | €264.93 | |
 |
FM1026 | 208-230V AC | 1/4 hp | 3 | 48Y | 6" | 1 | HVAC/R | Room Air Conditioner | €291.22 | |
 |
FM1036 | 208-230V AC | 1/3 hp | 3 | 48Y | 6" | 1 | HVAC/R | Room Air Conditioner | €349.19 | |
 |
FM1056 | 208-230V AC | 1/2 hp | 3 | 48Y | 6" | 1 | HVAC/R | Room Air Conditioner | €385.00 |
