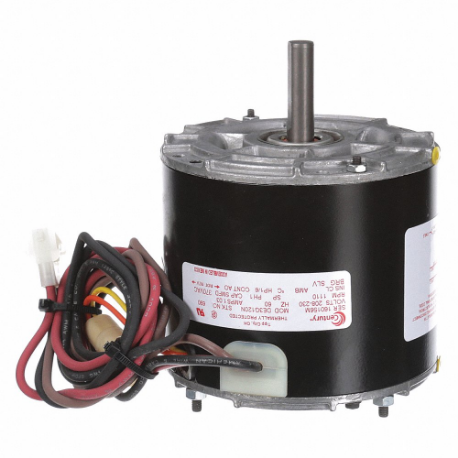

CENTURY 690 Direct Drive Motor, Heil Quaker Oem Repl, 1/6 Hp, 1, 100 Nameplate Rpm, 208-230VAC
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€396.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Sleeve |
| Body Dia. | 5" |
| Bolt Circle Dia. | 4 5/8" |
| Capacitor Required | 2MDV4 |
| Duty Cycle | Continuous |
| Extended Thru-bolts | No |
| Frame | 42Y |
| Frame Material | Steel |
| Full Load Amps | 1.03A |
| Hp | 1/6 hp |
| Insulation Class | Class A |
| Length Less Shaft | 4 9/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | OEM Replacement |
| Motor Bearings | Sleeve |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Type | Lug |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Length | Not Applicable |
| Mounting Type | Lug |
| Nameplate Rpm | 1100 RPM |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Oem Replacement Brand | Heil Quaker |
| Overall Length | 6 1/4" |
| Phase | Single |
| Replacement For | 48HXCLW-1562 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 3/4" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
| Weight | 10 lbs. |
Shipping Info:
| Ship weight (kg) | 10 |
| Ship height (cm) | 17.3 |
| Ship length (cm) | 22.38 |
| Ship width (cm) | 17.48 |
| Country of Origin | MX |
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Phase | Full Load Amps | Nameplate Rpm | Hp | Mounting Type | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
H845 | Dripproof | 200-230/460V AC | 3 | 4.3/9-8.6A | 3450 RPM | 3 hp | Cushion Base | 1.15 | €922.36 | |
 |
BK3074 | - | - | - | - | - | - | - | - | €736.91 | |
 |
RB3154AV1 | Open Dripproof | 208-230/460V AC | 3 | 4.6/2.3A | - | 1 1/2 hp | Resilient Base | 1.15 | €819.92 | |
 |
H852L | Open Dripproof | 200-230/460V AC | 3 | 2/3.7-4A | - | - | Resilient Base | 1.15 | €696.41 | |
 |
RB3204AV1 | Open Dripproof | 208-230/460V AC | 3 | 5.8/2.9A | 1725 RPM | 2 hp | Resilient Base | 1.15 | €822.75 | |
 |
OB3204V1 | - | - | - | - | - | - | - | - | €697.80 | |
 |
H847 | Dripproof | 208-230/460V AC | 3 | 6.6/13.4-13.2A | 3450 RPM | 5 hp | Rigid Base | 1.15 | €1,109.87 |
