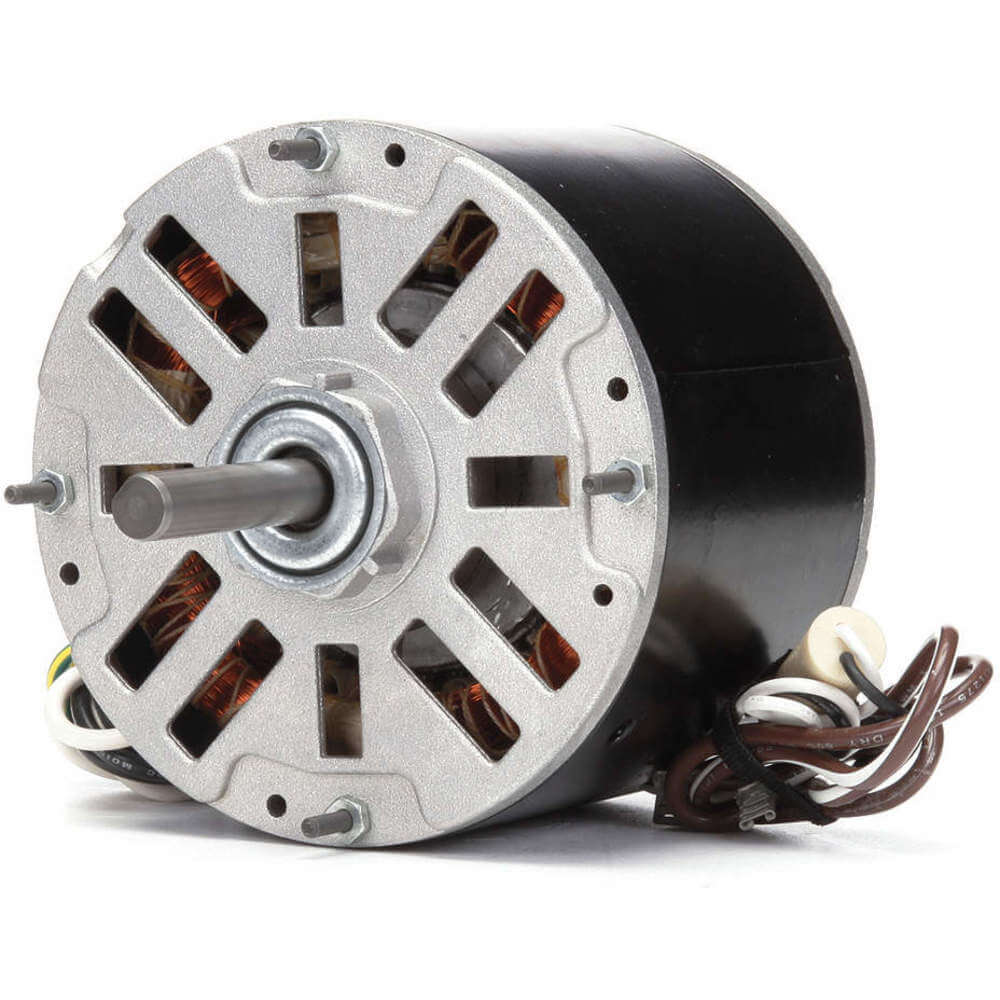

CENTURY 174A Motor Psc 1/6 Hp 1625 Rpm 208-230v 48y Oao
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€257.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Condenser Fan Motor |
| Bearing Type | Ball |
| Body Dia. | 5.7" |
| Bolt Circle Dia. | 5 3/16" |
| Capacitor Required | 2MDV4 |
| Conduit Box Position | F3 |
| Frame | 48Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1A |
| Hp | 1/6 hp |
| Ins. Class | Class B |
| Length Less Shaft | 5 11/16" |
| Max. Ambient Temp. | 60°C |
| Motor Application | OEM Replacement |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Pattern | 3 5/8" x 3 5/8" |
| Mounting Stud Pattern Size | 3.63" x 3.63" |
| Mounting Type | Stud |
| Nameplate Rpm | 1625 RPM |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Oem Replacement Brand | Copeland |
| Overall Length | 7 1/16" |
| Phase | Single |
| Replacement For | 050-0103-00 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 5/8" |
| Standards | Csa, Ul |
| Stud Pattern | 3 5/8" x 3 5/8" |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
| Weight | 10 lbs. |
Shipping Info:
| Ship weight (kg) | 10 |
| Ship height (cm) | 17.3 |
| Ship length (cm) | 22.2 |
| Ship width (cm) | 16.28 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Frame | Motor Design | Motor Application | Motor Mounting Type | Motor Thermal Protection | Full Load Amps | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

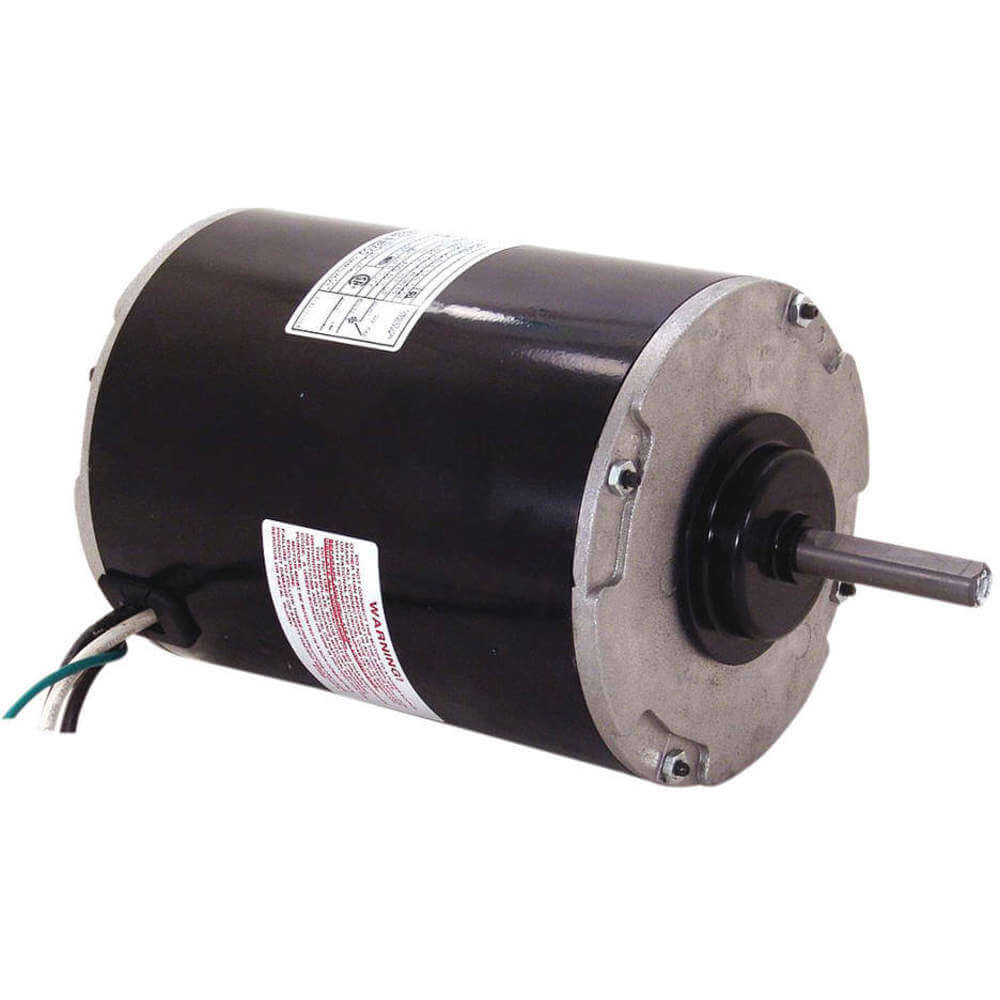

OAN1076V1 | 460V AC | 48Y | Permanent Split Capacitor | OEM Replacement | Band | Automatic | 2.8A | 3/4 hp | €577.12 | |
 |

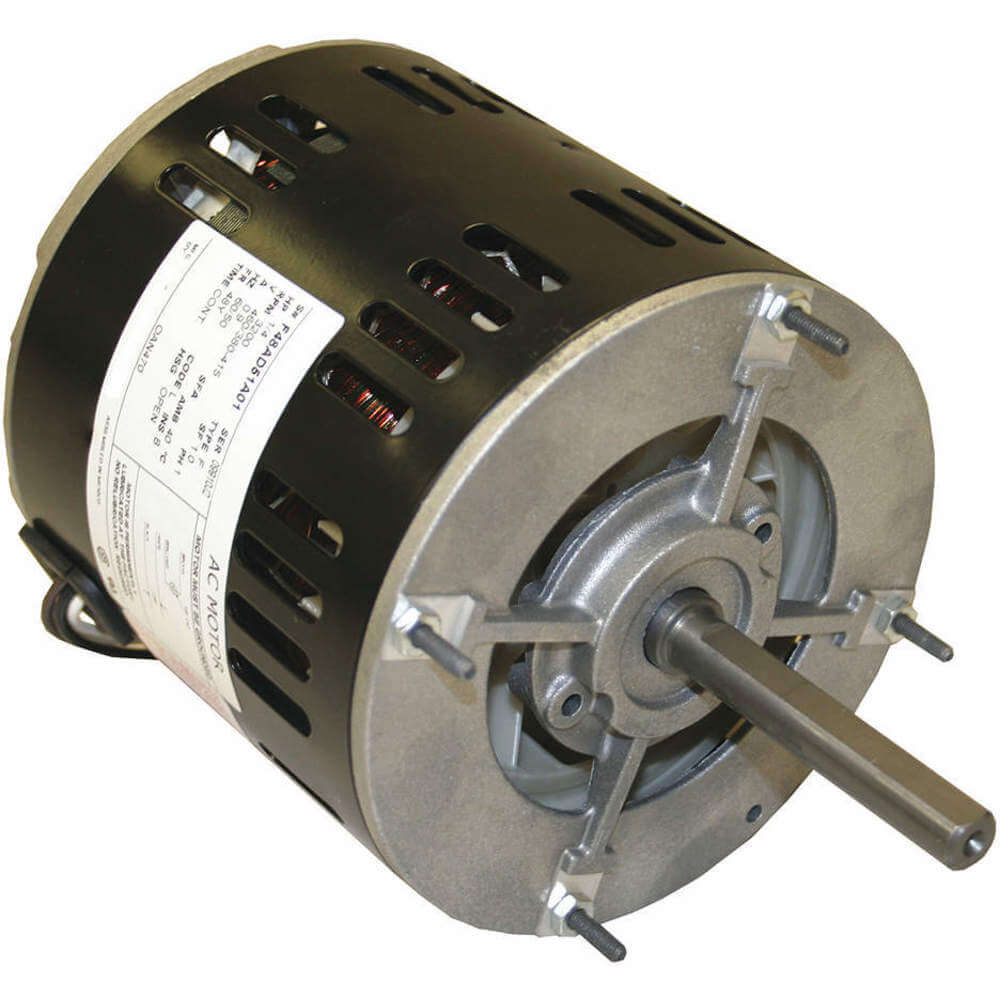

OAN470 | 460V AC | 48Y | Permanent Split Capacitor | OEM Replacement | Band | Auto | 0.9A | 1/4 hp | €620.29 | |
 |

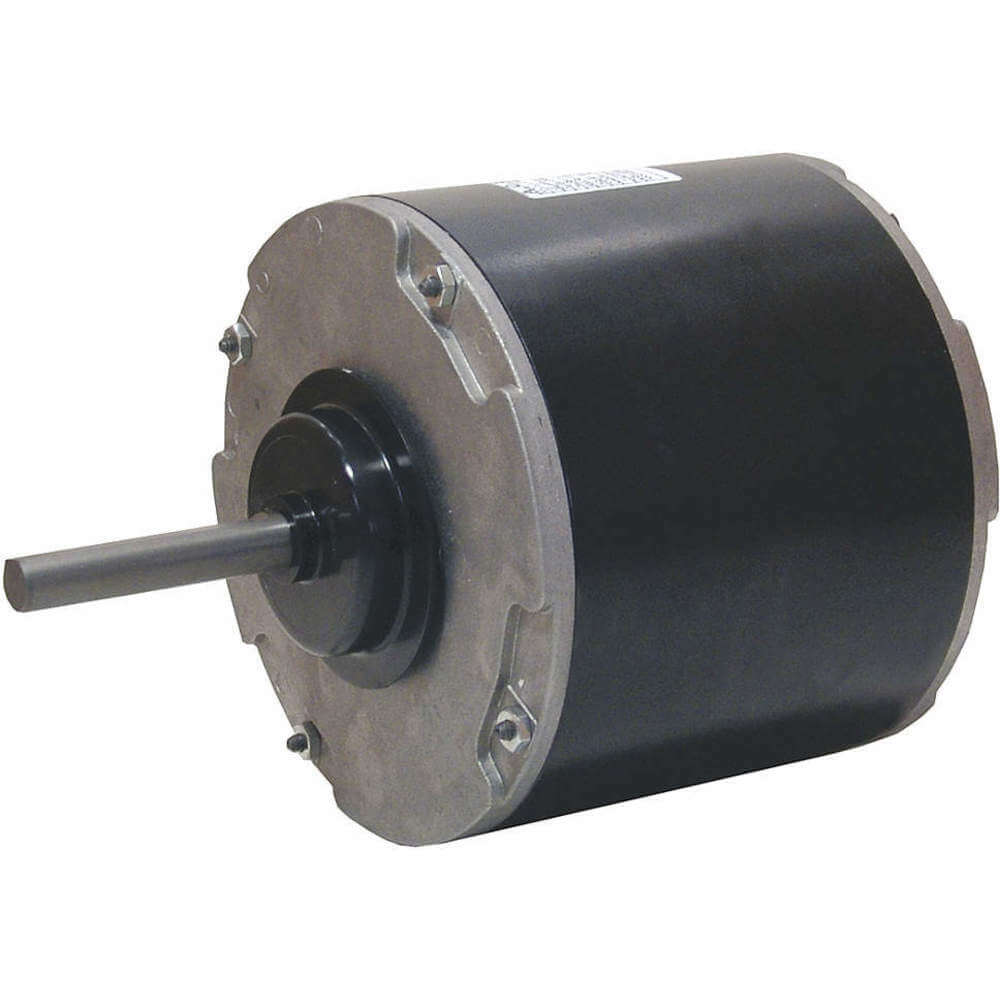

OAN010 | 460V AC | 48Y | Permanent Split Capacitor | OEM Replacement | Band | Automatic | 1A | 1/3 hp | €541.83 | |
 |

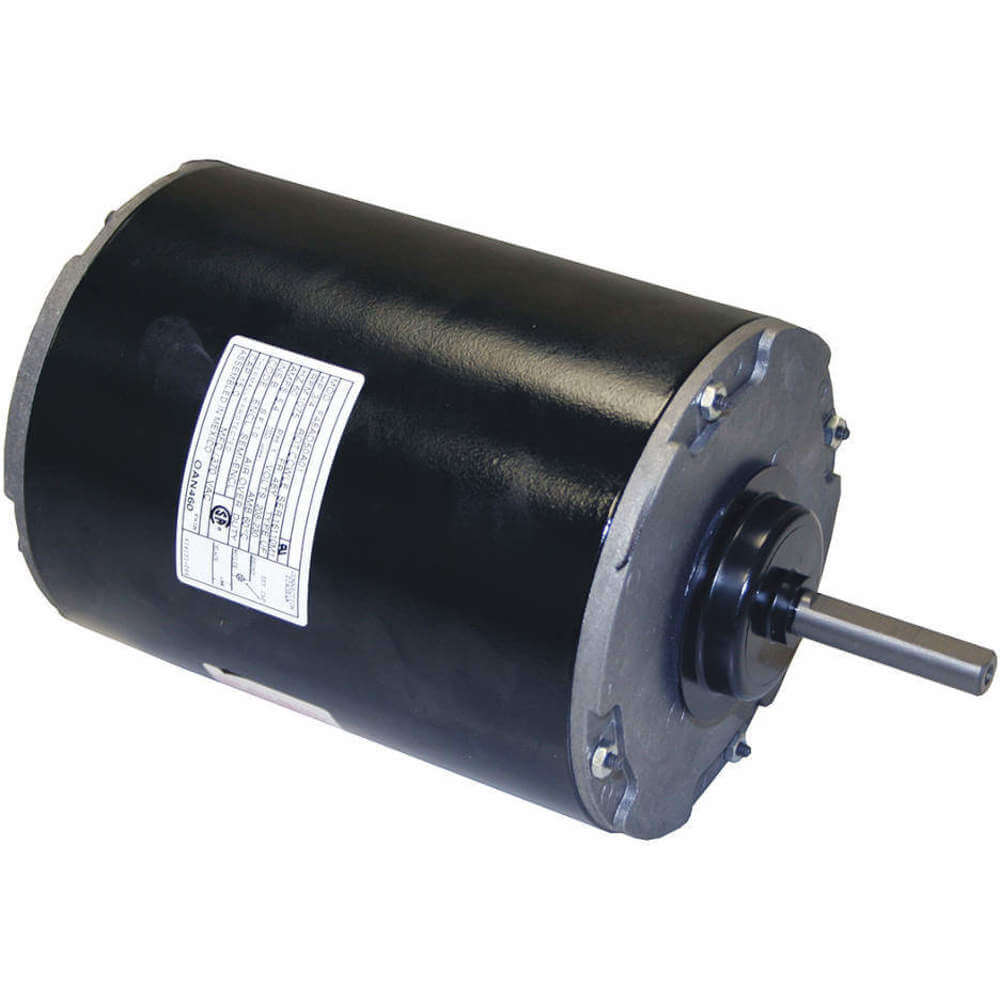

OAN460 | 208-230V AC | 48Y | Permanent Split Capacitor | OEM Replacement | Band | Automatic | 5.4A | 3/4 hp | €561.13 | |
 |

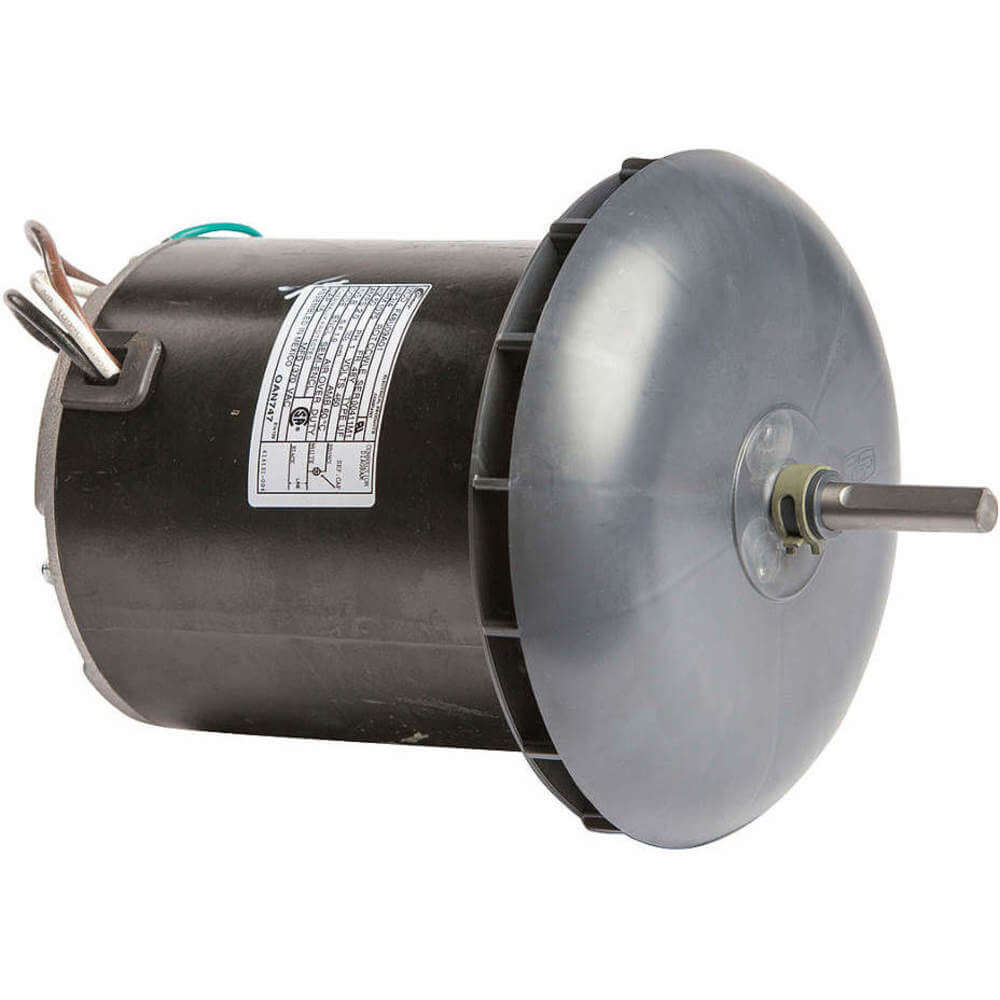

OAN747 | 460V AC | 48Y | Permanent Split Capacitor | OEM Replacement | Band | Automatic | 2A | 3/4 hp | €747.82 | |
 |

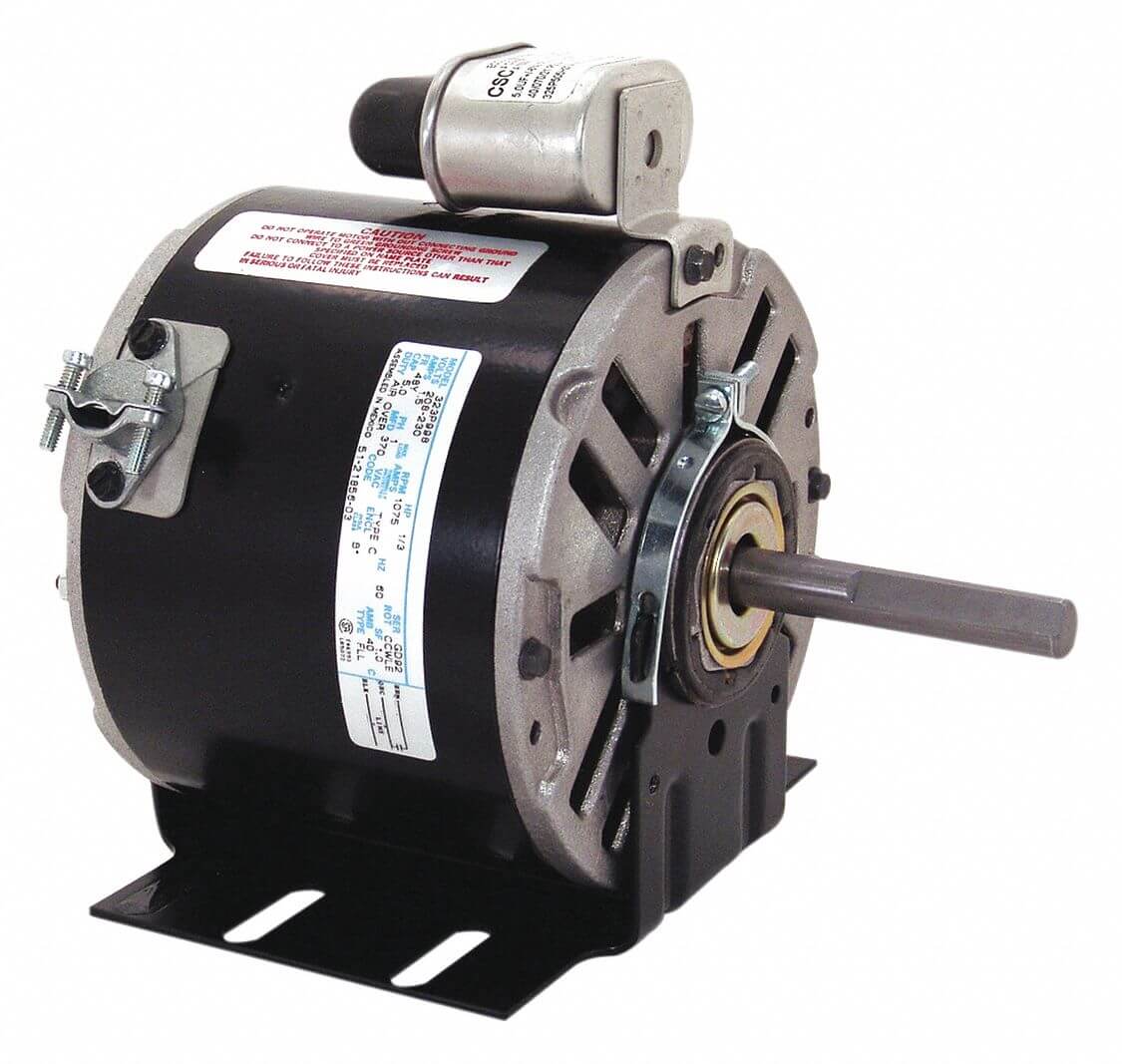

160A | 208-230V AC | 48Y | Permanent Split Capacitor | OEM Replacement | Cradle Base | Automatic | 3A | 1/3 hp | €316.96 | |
 |

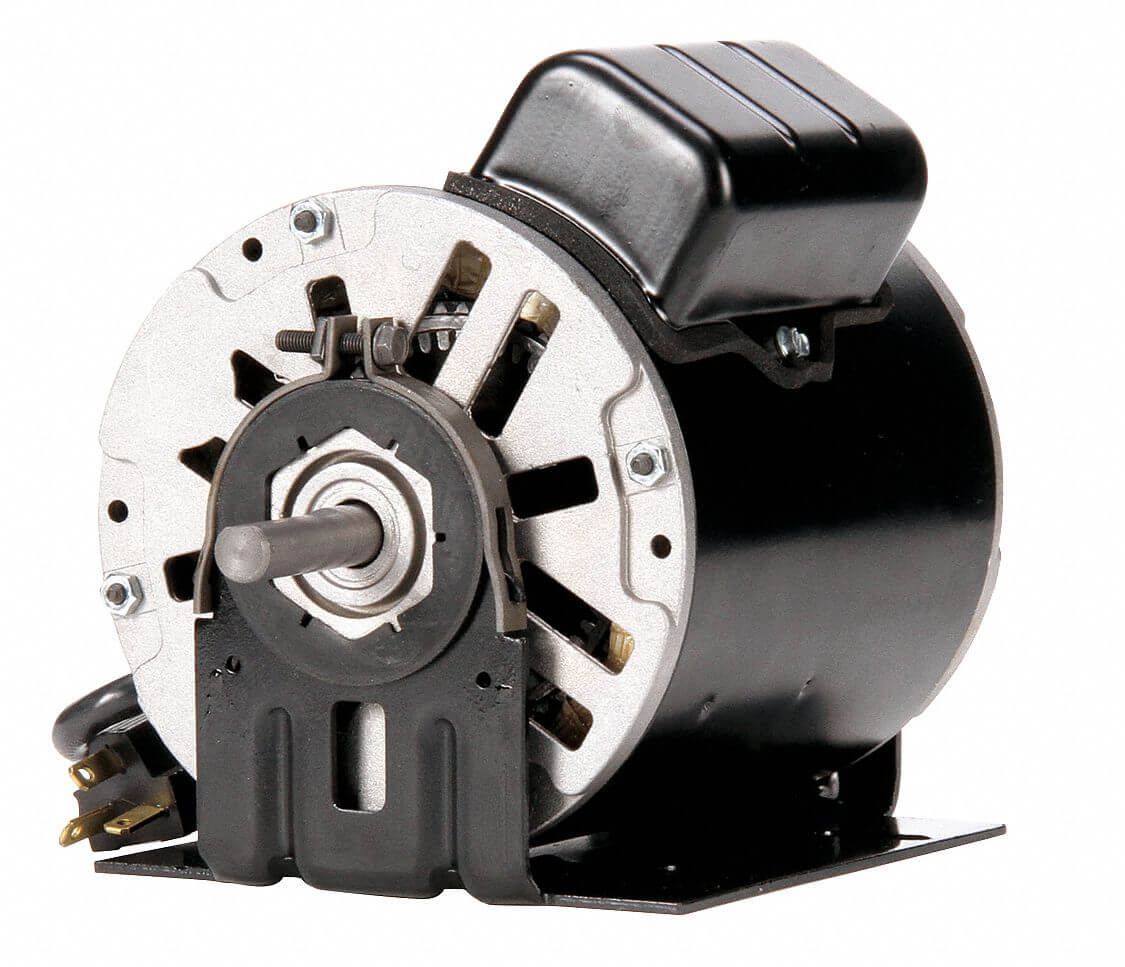

0547A | 115V AC | 48Y | Permanent Split Capacitor | OEM Replacement | Cradle Base | Automatic | 2.1A | 1/8 hp | €350.57 |
