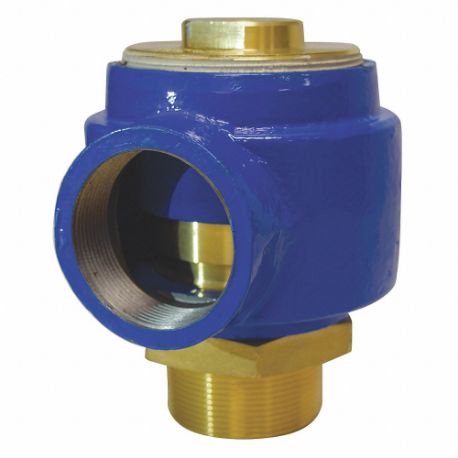

CDI CONTROL DEVICES NVR20-0A014 Blower Relief Valve, Vacuum, 190 Inch wc Preset Limit, 5 Inch Outside Dia
Item: CR2LUBModel: NVR20-0A014Cross Ref: 492T21
7 In Stock
Ships within 2 days via
5.00% off
€456.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blower Relief Valve |
| Compatible Manufacturer Part Number | 2VFB50-6.16-7W |
| For Use With Grainger Item Number | 38UW82 |
| For Use With Mfr. Model Number | 2VFB50-6.16-7W |
| Inlet Size | 2" |
| Inlet Type | NPT |
| Length | 5.81" |
| Max. Operating Pressure | 28 in. hg |
| Max. Temp. | 400°F |
| Min. Operating Pressure | 1 in. hg |
| Min. Operating Temp. | -20°F |
| Outside Dia. | 5" |
| Overall Length | 5.81" |
| Preset Limit | 190 in. wc |
| Vacuum Capabilities | Vacuum |
Shipping Info:
| Ship weight (kg) | 4.3 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 14.73 |
| Ship width (cm) | 12.7 |
Product Variants
| Model | Max. Operating Pressure | Min. Operating Pressure | Vacuum Capabilities | Preset Limit | For Use With Grainger Item Number | Compatible Grainger Part No | Mfr. Series | Inlet Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NBR20-0T004 | 15 psi | 1 psi | Pressure | 111 in. wc | 4Z75153WC0753WC085JEP15Z1875Z649 | 4Z751, 53WC07, 53WC08, 5JEP1, 5Z187, 5Z649 | - | NPT | €480.74 | |
| NBR20-0T005 | 15 psi | 1 psi | Pressure | 139 in. wc | 53WC0953WC1053WC145Z6506JD196JD24 | 53WC09, 53WC10, 53WC14, 5Z650, 6JD19, 6JD24 | - | NPT | €303.10 | |
| NBR20-0T006 | 15 psi | 1 psi | Pressure | 166 in. wc | 22NX8822NX8922NX9022NX9153WC1353WC1553WC16 | 22NX88, 22NX89, 22NX90, 22NX91, 53WC13, 53WC16 | - | NPT | €480.68 | |
| NBR20-0T008 | 15 psi | 1 psi | Pressure | 222 in. wc | 22NX9222NX9338UW83 | 22NX92, 22NX93, 38UW83 | - | NPT | €480.74 | |
| NBR30-0T008 | 15 psi | 1 psi | Pressure | 222 in. wc | 2EPU32EPU4 | 2EPU3, 2EPU4 | - | NPT | €636.92 | |
| NBR20-0T009 | 15 psi | 1 psi | Pressure | 249 in. wc | 2EPP22EPP32EPP62EPP72EPR32EPR438UW8138UW82 | 2EPP2, 2EPP3, 2EPP6, 2EPP7, 2EPR3, 2EPR4, 38UW81, 38UW82 | - | NPT | €303.14 | |
| NBR20-0T010 | 15 psi | 1 psi | Pressure | 277 in. wc | 38UW80 | - | - | NPT | €303.14 |
