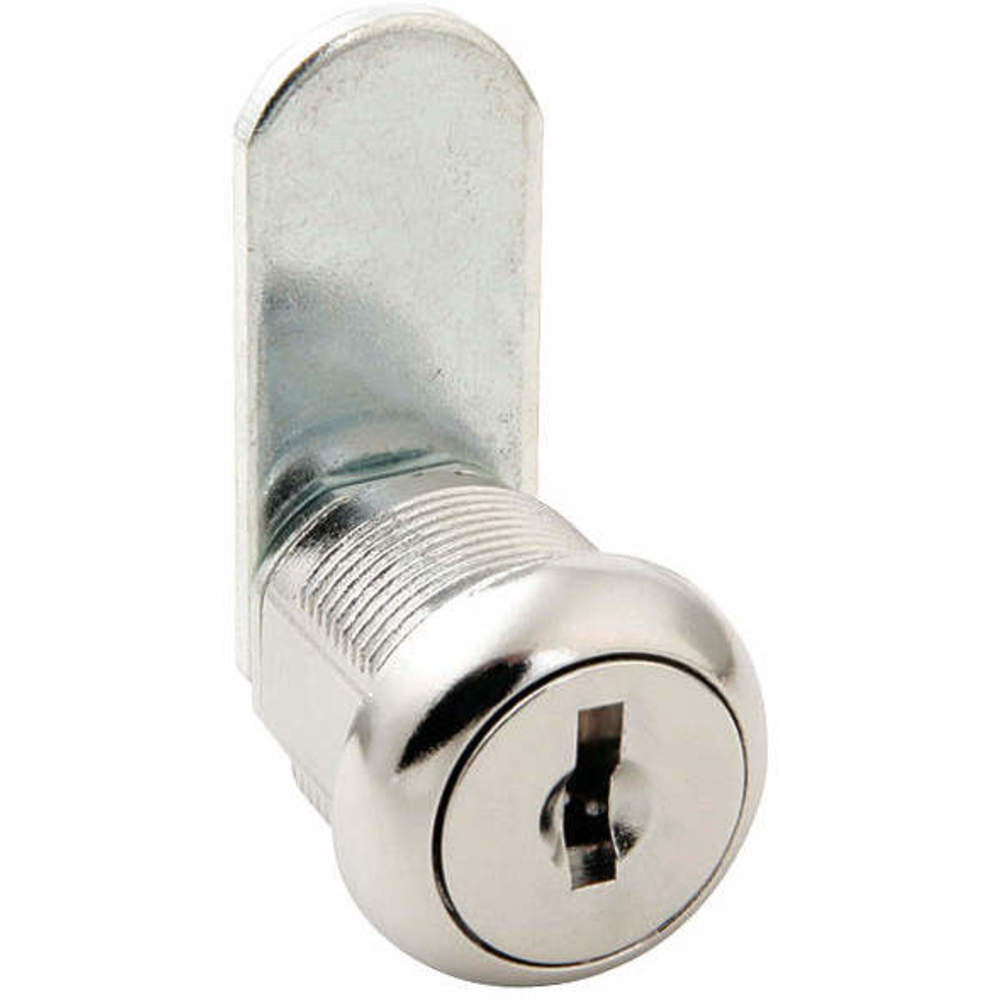

CCL 65002 Disc Tumbler Cam Lock Bright Chrome
Item: AH7ZHDModel: 65002Cross Ref: 38EW54
7 In Stock
Ships within 2 days via
5.00% off
€17.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cam Lock |
| Body Color | Silver |
| Cam Length (in.) | 1-1/8, 1-1/4 |
| Cam Type | Offset, Straight |
| Cam Width | 0.625" |
| Cam Width (in.) | 5/8 |
| Cylinder Length | 7/8" |
| Finish | Bright Chrome |
| For Door Thickness | 0.875" |
| For Material | Metal |
| For Material Thickness | 7/8" |
| Included Mounting Hardware | Yes |
| Interchangeable Core | No |
| Key Number | C415A |
| Key Retaining | No |
| Key Type | Alike |
| Keyed Cam Lock Type | Disc Tumbler Keyed Cam Lock |
| Keying | Keyed Alike |
| Keyway Type | Ccl C415A |
| Latching Distance | 1 1/8" |
| Lock Body Finish | Chrome Plated |
| Lock Body Material | Zinc Die Cast |
| Lock Type | Standard Keyed Cam Lock |
| Master Key Code | Ka-C415A |
| Max. Latching Distance (in.) | 1-1/8 |
| Mounting Hardware Required | Yes |
| Mounting Hole Dia. | 3/4" |
| No. Of Keys | 2 |
| No. Of Pins | 5 |
| Offset | 1/4" |
| Offset Cam Length | 1 1/8" |
| Offset Cam Width | 5/8" |
| Opens With | Key |
| Security Level | General Security |
| Series | 650/651 Series |
| Straight Cam Length | 1 1/4" |
| Straight Cam Width | 5/8" |
| Unlock Turn Direction | CW, CCW |
| Unlock Turn Direction | Left/Right |
| Unlocking Radius | Quarter Turn |
| Unlocking Radius (deg.) | 90 or 180 |
| Weather Resistance | No |
| Weather Resistant | No |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 12.7 |
| Country of Origin | CN |
Product Details:
- Opens With : Key
Product Variants
| Model | For Material Thickness | For Door Thickness | Cylinder Length | Key Number | Latching Distance | Keyway Type | Master Key Code | Max. Latching Distance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 65101 | 7/16" | 0.1875" | 7/16" | C415A | 7/16" | Ccl C415A | Ka-C415A | 0.6875" | €17.93 | |
| 65001 | 5/8" | 0.625" | 5/8" | C415A | 5/8" | Ccl C415A | Ka-C415A | 0.875" | €17.93 | |
| 65003 | 1 1/8" | 1.125" | 1 1/8" | C415A | 1 3/8" | Ccl C415A | Ka-C415A | - | €17.93 | |
| 65104 | 7/16" | 0.1875" | 5/8" | CH751 | 7/16" | Ccl C415A | Ka-Ch751 | 0.6875" | €17.36 | |
| 65010 | 5/8" | 0.625" | 5/8" | CH751 | 5/8" | Ccl C751 | Ka-Ch751 | 0.875" | €17.36 | |
| 65011 | 7/8" | 0.875" | 7/8" | CH751 | 1 1/8" | Ccl C415A | Ka-Ch751 | - | €17.36 | |
| 65012 | 1 1/8" | 1.125" | 1 1/8" | CH751 | 1 3/8" | Ccl Ch751 | Ka-Ch751 | - | €17.36 |
