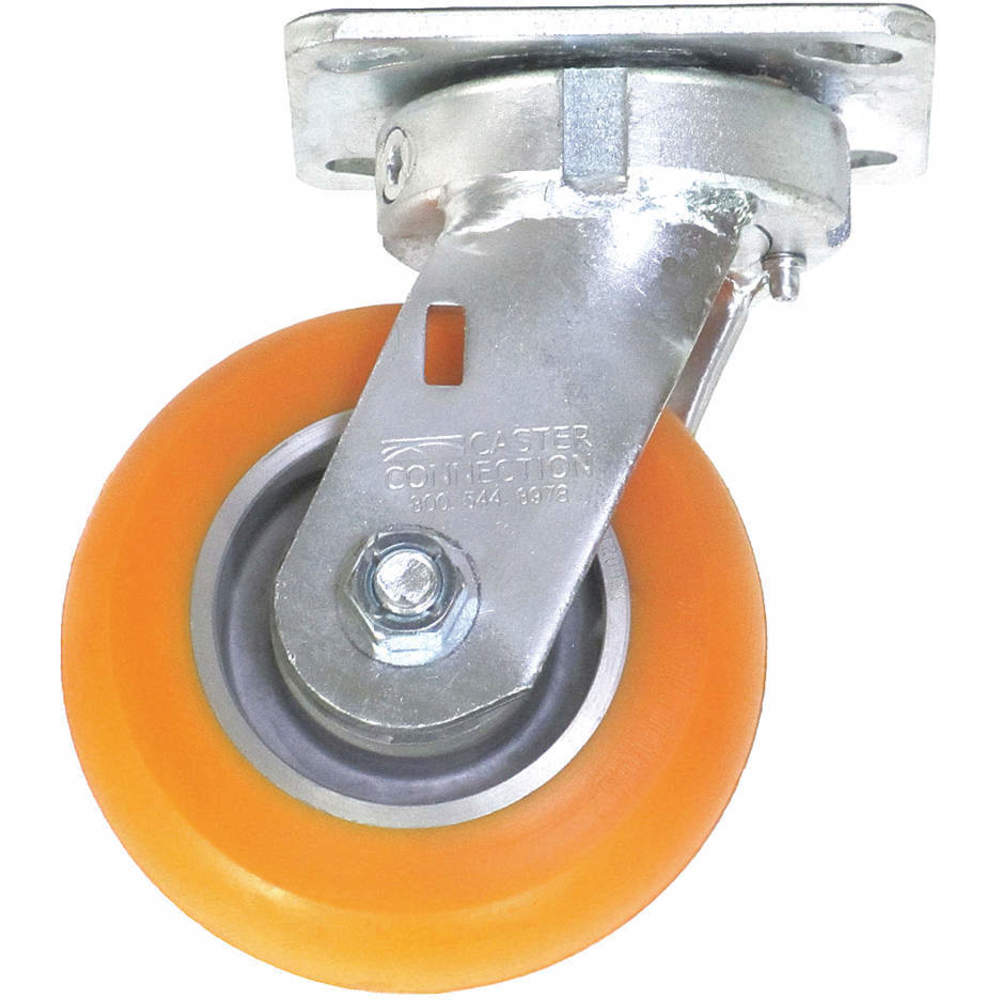

CASTER CONNECTION CDP-G-8 Swivel Plate Caster 750 Lb.
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€126.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Application | Commercial Laundries, Educational Institutions, Engineering And Design, Factory Floor Towlines, Green Houses, Healthcare Facilities, Institutional Kitchens, Manufacturing, Material Handling, Metal Fabrication, Waste Removal |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Aluminum |
| Caster Load Rating Range | 300 lbs. to 999 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Kingpinless Caster |
| Caster Sub-type | Swivel |
| Caster Type | Kingpinless Swivel |
| Caster Wheel Material | Polyurethane |
| Caster Wheel Shape | Standard |
| Core Color | Silver |
| Core Material | Aluminum |
| Durometer | 87 Shore A |
| Extended Lead | No |
| Features | Floor Protective, Noise Reduction, Push/Pull Force Reduction |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | B |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Load Rating | 750 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 6 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3" x 3" |
| Overall Height | 6 1/2" |
| Plate Caster Core Material | Aluminum |
| Plate Caster Core Material | Aluminium |
| Plate Caster Lock | No Lock Included |
| Plate Caster Wheel Material | Polyurethane |
| Plate Size | 4" x 4 1/2" |
| Plate Thickness | 3/8" |
| Plate Type | B |
| Raceway Type | Kingpinless |
| Replacement Wheel | CDP-G-2 |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Roller |
| Tread Shape | Donut |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Precision Ball |
| Wheel Color | Orange |
| Wheel Core Material | Aluminum |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Wheel/tread Color | Orange |
| Wheel/tread Hardness | 87 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 2.56 |
| Ship height (cm) | 17.27 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 11.43 |
| HS code | 8302200000 |
Product Details:
- Plate Caster Brake (No)
- Thread Guard (No)
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Load Rating | Mounting Plate Bolt Hole Pattern | Caster Load Rating Range | Mounting Height | Mounting Plate Size | Plate Thickness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

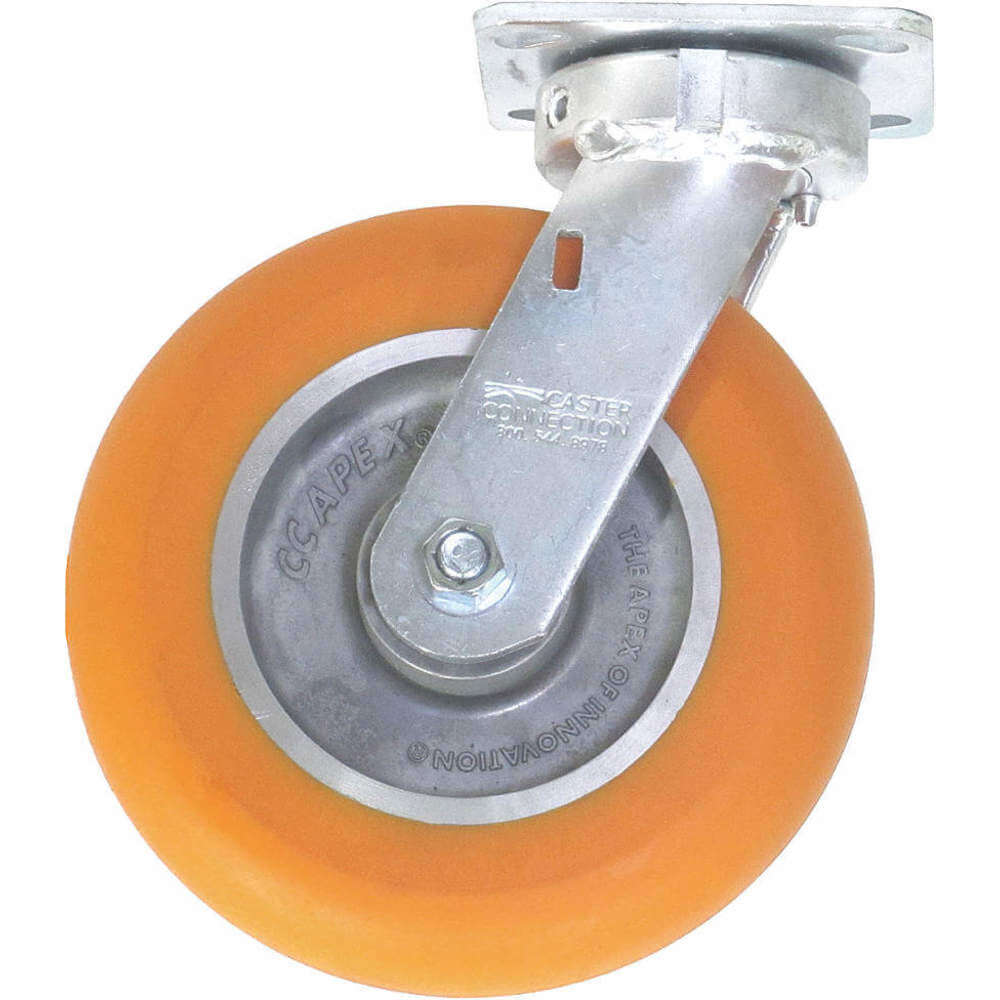

CDP-G-17 | 2 3/8" x 3" | 3" x 3 5/8" | 1200 lbs. | - | 1000 lbs. to 2999 lbs. | - | - | 1/4" | €236.27 | |
 |

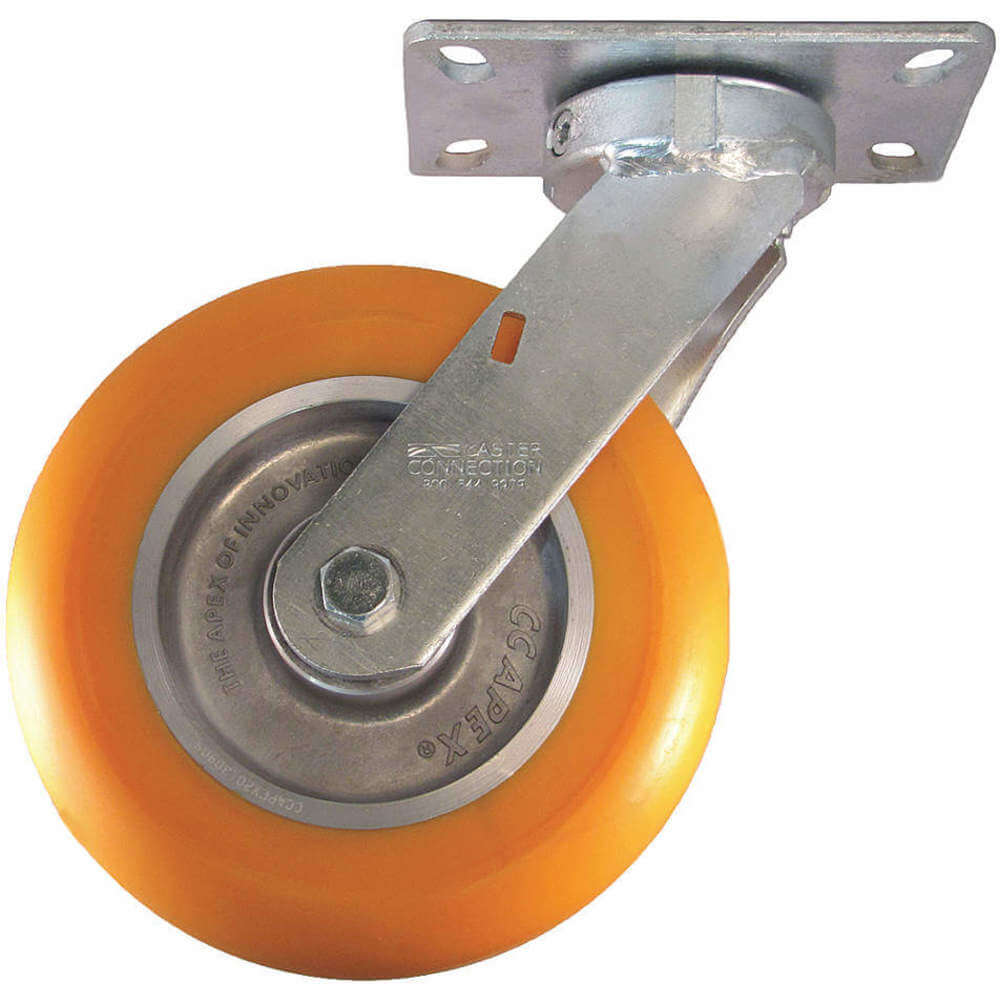

CDP-G-19 | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 1200 lbs. | A | 1000 lbs. to 2999 lbs. | 10 1/8" | 4 1/2" x 6 1/4" | 1/4" | €222.86 | |
 |

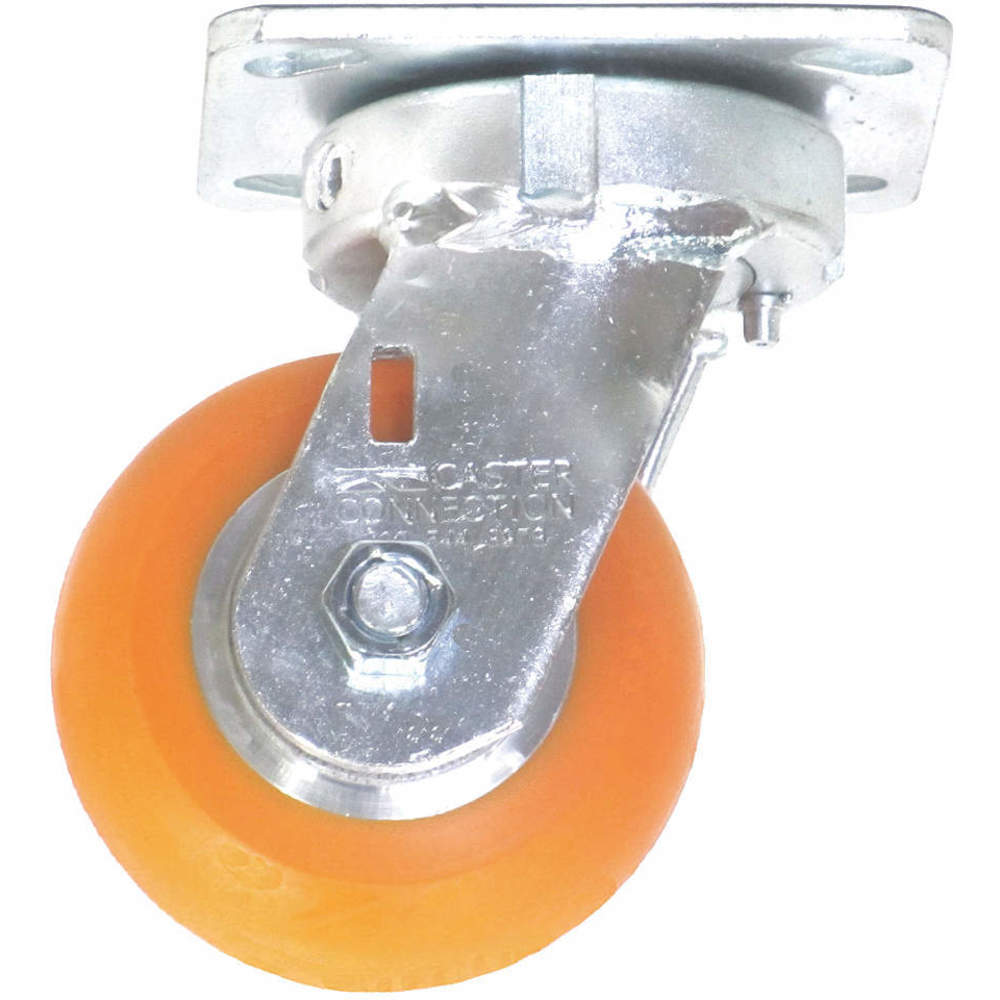

CDP-G-5 | 2 5/8" x 3 5/8" | 3" x 3" | 650 lbs. | B | 300 lbs. to 999 lbs. | 5 5/8" | 4" x 4 1/2" | 3/8" | €123.74 | |
 |

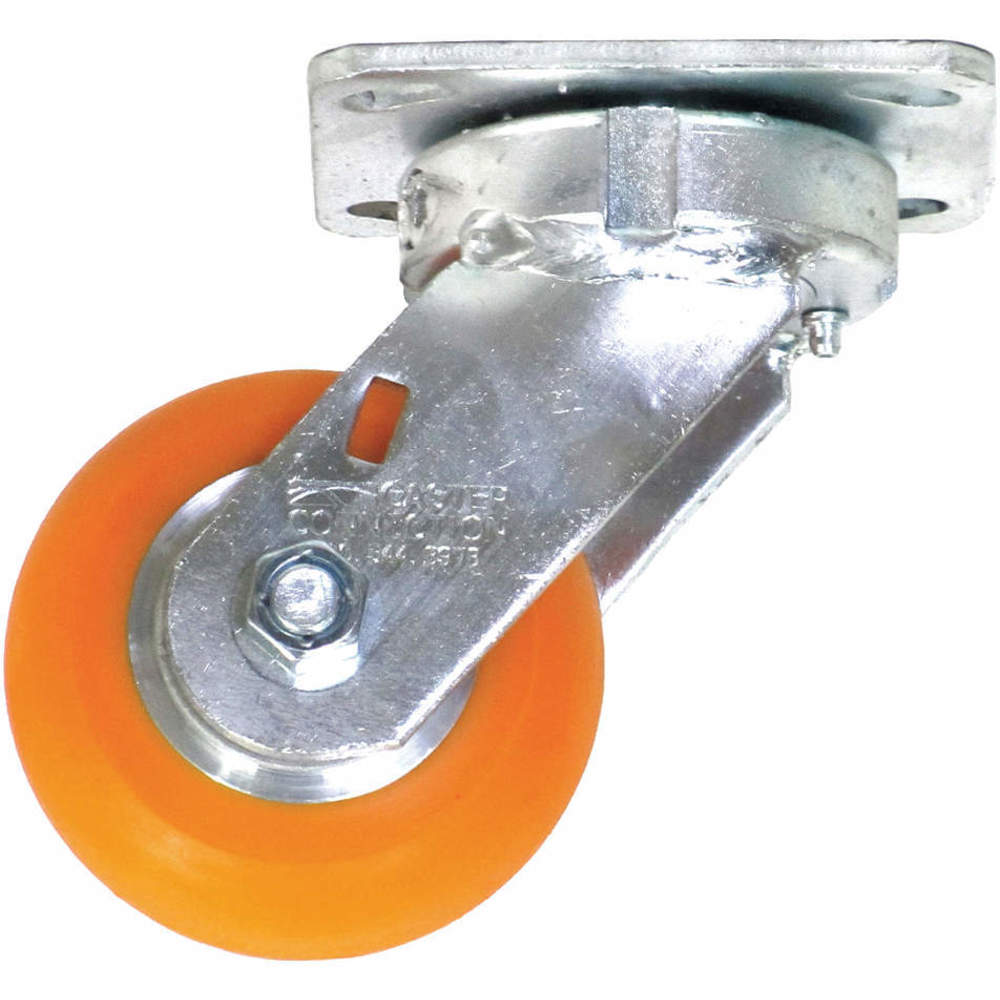

CDP-G-6 | 2 5/8" x 3 5/8" | 3" x 3" | 650 lbs. | B | - | 5 5/8" | 4" x 4 1/2" | 3/8" | €118.96 | |
 |
CDP-G-11 | 3" x 3" | 2 5/8" x 3 5/8" | 1000 lbs. | B | 1000 lbs. to 2999 lbs. | 7 1/2" | 4" x 4 1/2" | 3/8" | €139.83 | |
 |

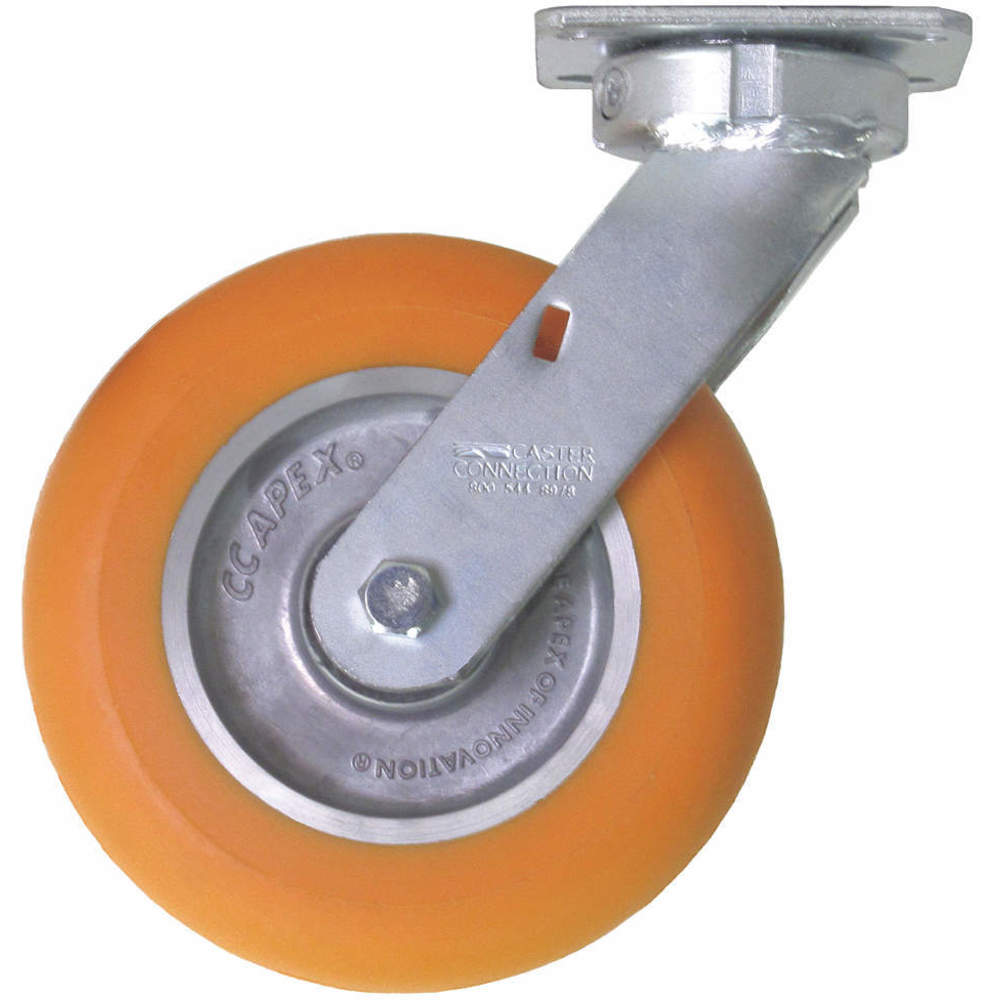

CDP-G-13 | 2 5/8" x 3 5/8" | 3" x 3" | 1200 lbs. | B | 1000 lbs. to 2999 lbs. | 10 1/8" | 4" x 4 1/2" | 3/8" | €212.18 | |
 |

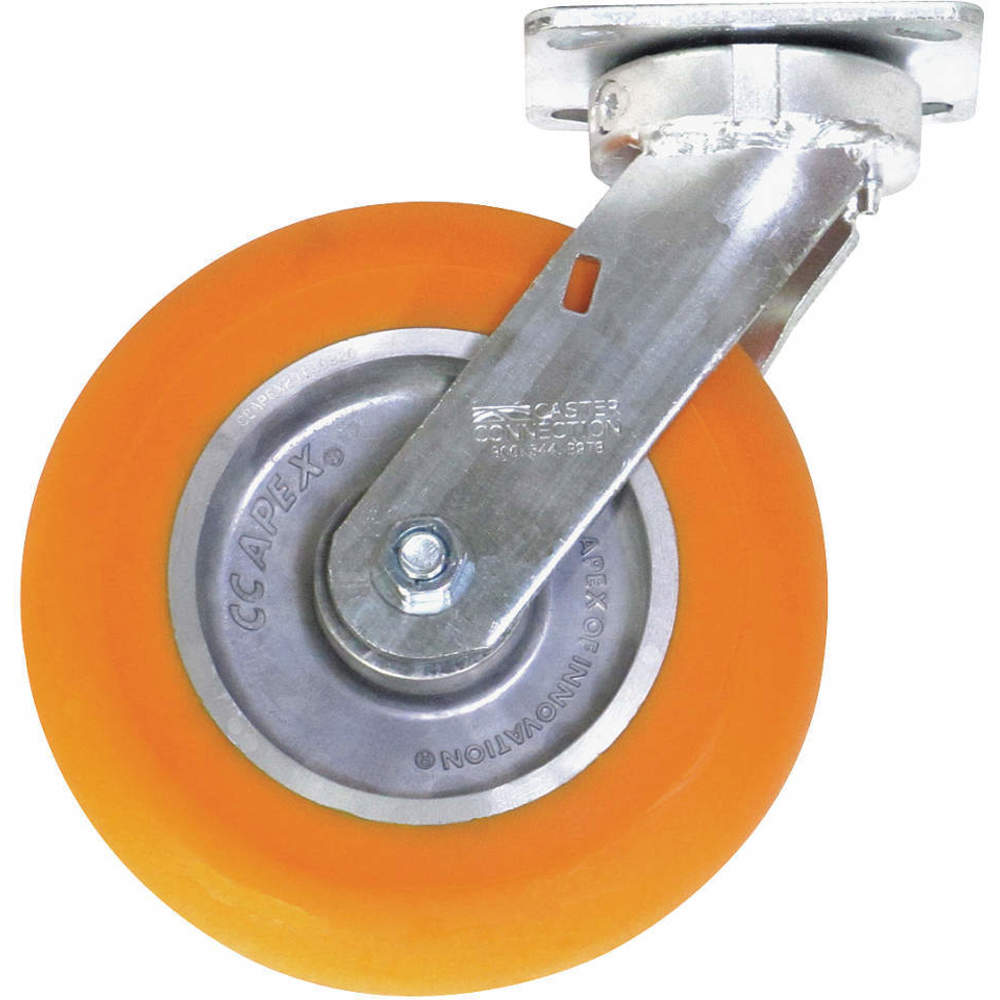

CDP-G-14 | 2 5/8" x 3 5/8" | 3" x 3" | 1200 lbs. | B | 1000 lbs. to 2999 lbs. | 9 1/2" | 4" x 4 1/2" | 3/8" | €218.89 |
