CASH VALVE LS1CSBS01-D3-0300 17112-0300 Pressure Regulator 1/2 Inch 40 To 500 Psi
Get it by Tuesday, Sep 1
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment
Delivery
Product Specifications:
| Item | Pressure Regulator |
| Body Material | Bronze |
| Connection Type | FNPT x FNPT |
| Factory Set Pressure | 300 psi |
| For Media | Air, Oil, Water |
| Height | 9 5/16" |
| Inlet Connection Size | 1/2" |
| Inlet Size | 1/2" |
| Length | 5 7/8" |
| Max. Operating Pressure | 2400 psi |
| Max. Pressure | 2400 psi |
| Max. Temp. | 180°F |
| Operating Temp. | 180°F |
| Outlet Size | 1/2" |
| Overall Height | 9 5/16" |
| Overall Width | 5 7/8" |
| Pipe Size | 1/2" |
| Pressure Adjustment Range | 40 psi to 500 psi |
Shipping Info:
| Ship weight (kg) | 7.73 |
| Ship height (cm) | 16 |
| Ship length (cm) | 21.08 |
| Ship width (cm) | 17.02 |
| HS code | 8481809015 |
| Country of Origin | US |
Product Details:
Cash Valve LS1CSBS01-D3 pressure regulator is used to maintain consistent pressure levels within systems, ensuring optimal performance and safety. It safeguards equipment from damage caused by regulating and stabilising pressure, mitigating the risk of leaks, bursts or system failures. This regulator is ideal for various industrial sectors, including oil & gas, chemical processing and power generation.
Features:
- It features a bronze body for structural rigidity and corrosion resistance.
- This regulator has an extensive pressure adjustment range of 40 to 500 psi.
- It has a maximum temperature rating of 180 degrees F.
- This 1/2-inch pressure regulator offers a maximum pressure rating of 2400 psi.
Frequently Asked Questions:
Q. What does Cash LS1CSBS01-D3 pressure regulator comply with?
A. This regulator meets ISO 9001 standards, ensuring enhanced reliability and improved performance.
Q. What distinguishes a valve from a pressure regulator?
A. A valve controls the flow of fluid, while a pressure regulator maintains a set pressure level by adjusting flow. Valves are primarily on / off devices, whereas pressure regulators provide continuous pressure control.
Q. What are the factors to consider while choosing a pressure regulator?
A. Major factors include the required pressure range, material compatibility, temperature considerations, flow capacity, ease of installation, regulatory compliance and maintenance requirements.
Product Variants
| Product | Model | Inlet Connection Size | Outlet Size | Pressure Adjustment Range | Overall Height | Height | Max. Pressure | Max. Operating Pressure | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

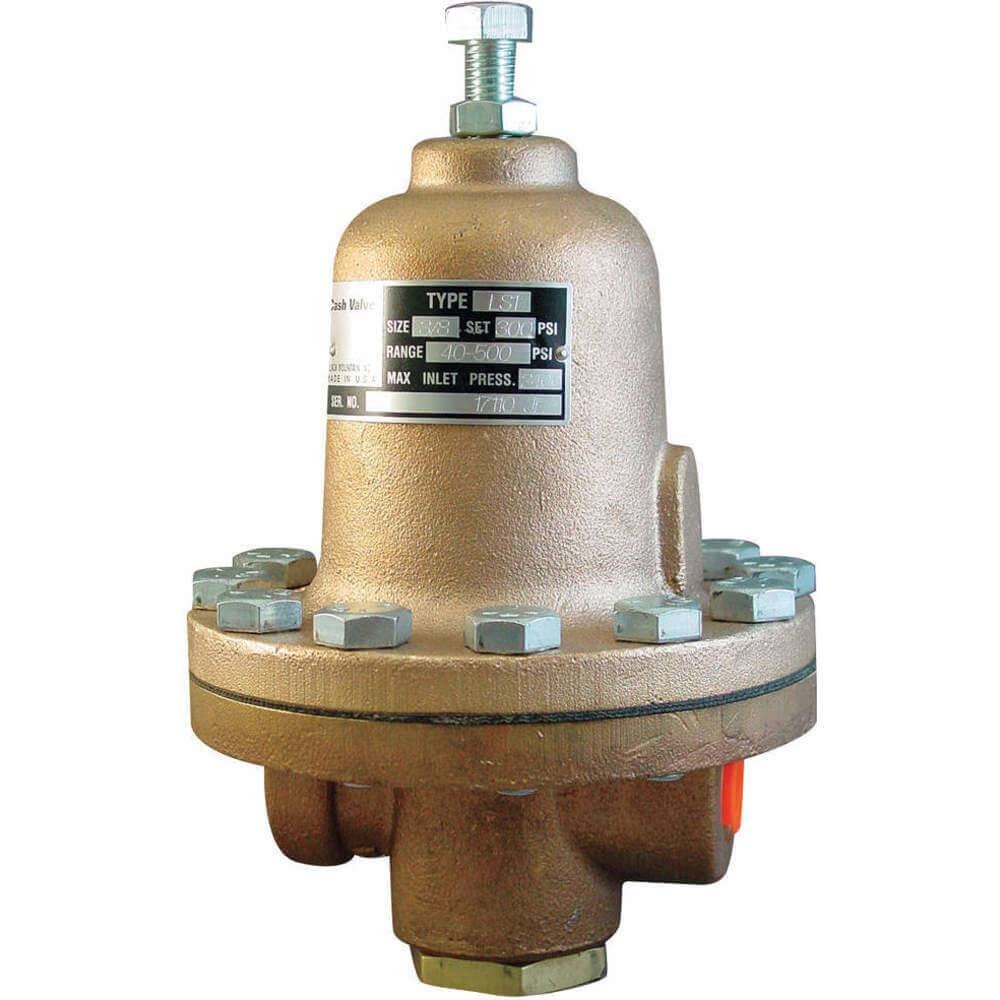

17110-0300 | 3/8" | - | 40 psi to 500 psi | 9 5/16" | 9 5/16" | 2400 psi | 2400 psi | 180°F | - | RFQ
|
|
LS1DSBS01-D3-0300 | 3/4" | 3/4" | 40 psi to 500 psi | 9 5/16" | 9 5/16" | 2400 psi | 2400 psi | 180°F | €3,081.39 |
