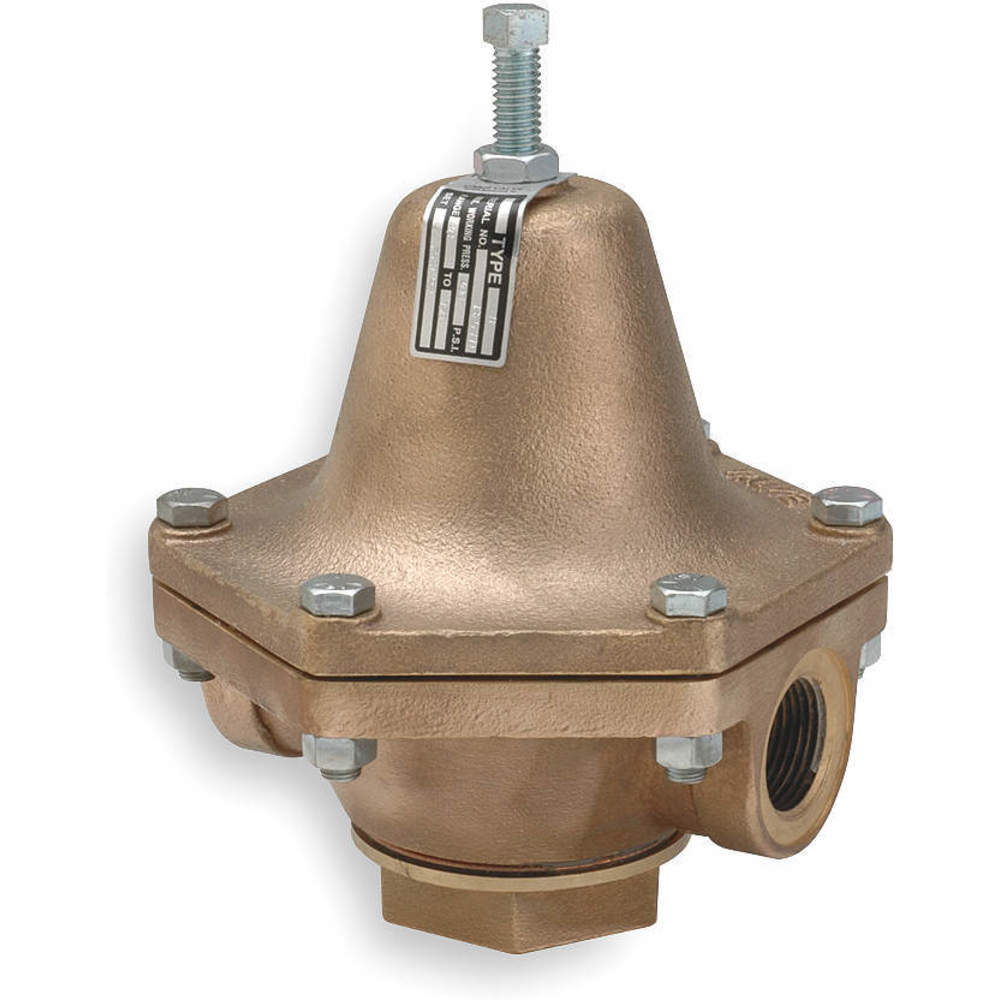

CASH VALVE 1875-0040 Pressure Regulator 1 Inch 20 To 60 Psi
Get it by Tuesday, Sep 1
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,118.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pressure Regulator |
| Adjustable Pressure | 20 psi to 60 psi |
| Body Material | Bronze |
| Connection Type | Fnptf x FNPTF |
| Factory Set Pressure | 40 psig |
| For Media | Air, Water |
| Height | 7 5/8" |
| Inlet Connection Size | 1" |
| Inlet Size | 1" |
| Length | 2 1/8" |
| Max. Operating Pressure | 400 psig |
| Max. Pressure | 400 psi |
| Max. Temp. | 180°F |
| Operating Temp. | 180°F |
| Outlet Size | 1" |
| Overall Height | 7 5/8" |
| Overall Width | 2 1/8" |
| Pipe Size | 1" |
| Pressure Adjustment Range | 20 psig to 60 psig |
| Series | B Series |
Shipping Info:
| Ship weight (kg) | 6.35 |
| Ship height (cm) | 24.64 |
| Ship length (cm) | 18.8 |
| Ship width (cm) | 16 |
| HS code | 8481809015 |
| Country of Origin | US |
Product Variants
| Model | Pressure Adjustment Range | Adjustable Pressure | Max. Pressure | Max. Temp. | Inlet Connection Size | Overall Height | Overall Width | For Media | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 12397-0028 | 10 psig to 45 psig | 10 psi to 45 psi | 250 psi | 400°F | 1" | 7 5/8" | 2 1/8" | Steam | €1,193.07 | |
| 12397-0040 | 20 psig to 60 psig | 20 psi to 60 psi | 250 psi | 400°F | 1" | 7 5/8" | 2 1/8" | Steam | €1,193.07 | |
| 12397-0011 | 2 psig to 20 psig | 2 psi to 20 psi | 250 psi | 400°F | 1" | 7 5/8" | 2 1/8" | Steam | €1,193.07 | |
| 12397-0078 | 55 psig to 100 psig | 55 psi to 100 psi | 250 psi | 400°F | 1" | 7 5/8" | 2 1/8" | Steam | €1,193.07 | |
| 12397-0120 | 90 psig to 150 psig | 90 psi to 150 psi | 250 psi | 400°F | 1" | 7 5/8" | 2 1/8" | Steam | €1,193.07 | |
| 15580-0030 | 10 psig to 50 psig | 10 psi to 50 psi | 250 psi | 400°F | 1/2" | 6 5/8" | 4 1/2" | Steam | €718.22 | |
| 15580-0016 | 2 psig to 30 psig | 2 psi to 30 psi | 250 psi | 400°F | 1/2" | 6 5/8" | 4 1/2" | Steam | €718.22 |
