CARLING TECHNOLOGIES 6FA54-73 Toggle Switch Spst 2 Connector Off/ On
Item: AE2EUGModel: 6FA54-73Cross Ref: 4X200
7 In Stock
Ships within 2 days via
13.00% off
€8.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Toggle Switch |
| Ac Contact Rating | 10A @ 250V, 15A @ 125V |
| Actuator Length | 17/25" |
| Actuator Material | Metal |
| Contact Form | SPST |
| Dc Contact Rating | Not Rated |
| Dia. | 1/2" |
| Features | Not Sealed |
| Hp | 3/4 hp |
| Included | Hex Nut, Ring Nut |
| Ip Rating | Not Rated |
| Max. Operating Temp. | 150°F |
| Min. Operating Temp. | 0°F |
| Nema Enclosure Rating | No Enclosure |
| No. Of Connections | 2 |
| No. Of Poles | 1 |
| No. Of Positions | 3 |
| Operator Illumination Style | Non-Illuminated |
| Overall Depth | 1.13" |
| Overall Height | 2.17" |
| Overall Width | 0.63" |
| Panel Mounting Hole Dia. | 1/2" |
| Product Type | Toggle Switch |
| Series | F Series |
| Stem Dia. | 0.47" |
| Stem Length | 0.47" |
| Stem Thread Size | 6-32 Nc-2 |
| Switch Function | Momentary On/Momentary Off |
| Switch Function Configuration | Momentary On/None/Off |
| Terminal Connection Type | Screw Terminal |
| Terminals | Screw |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 15.24 |
| HS code | 8536509065 |
| Country of Origin | MX |
Product Variants
| Product | Model | No. Of Connections | Terminal Connection Type | Dia. | No. Of Positions | Operator Illumination Style | Switch Function Configuration | Ac Contact Rating | Dc Contact Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2FAA01-73 | 2 | Quick Connect Tab | 0.469" | 2 | Non-Illuminated | On/Off | 10A @ 250V, 15A @ 125V | Not Rated | €6.85 | |
|
CA201-73 | 2 | Quick Connect Tab | 0.469" | 3 | Non-Illuminated | On/None/Off | 20A @ 125V, 20A @ 250V | Not Rated | €7.40 | |
 |

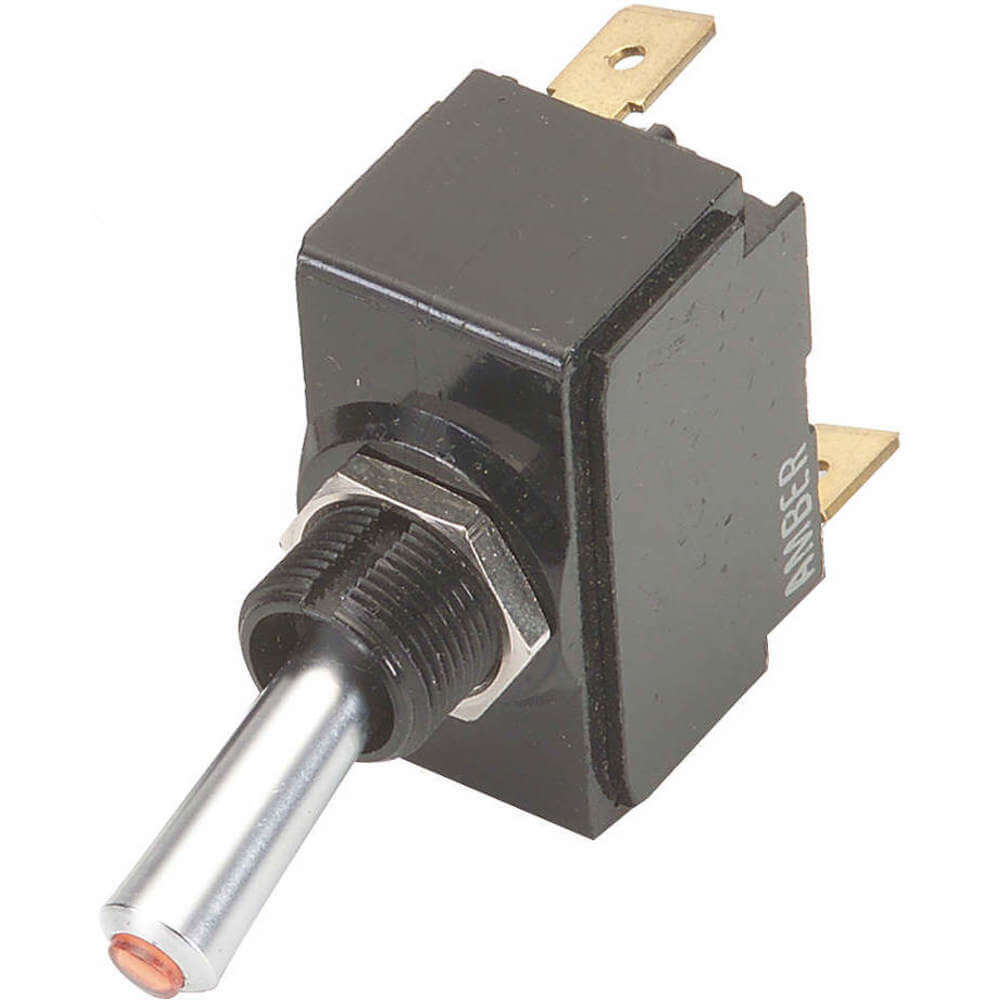

LT-1511-610-012 | 3 | Quick Connect Tab | 0.469" | 2 | Illuminated Actuator | On/None/Off | 10A @ 250V, 15A @ 125V | 15A @ 12-28V | €12.11 | |
 |
110-S-73 | 2 | Screw Terminal | 1/2" | 3 | Non-Illuminated | On/None/Off | 6A @ 125V AC, 3A @ 250V AC | 3A @ 250V, 6A @ 125V | €8.20 | |
 |

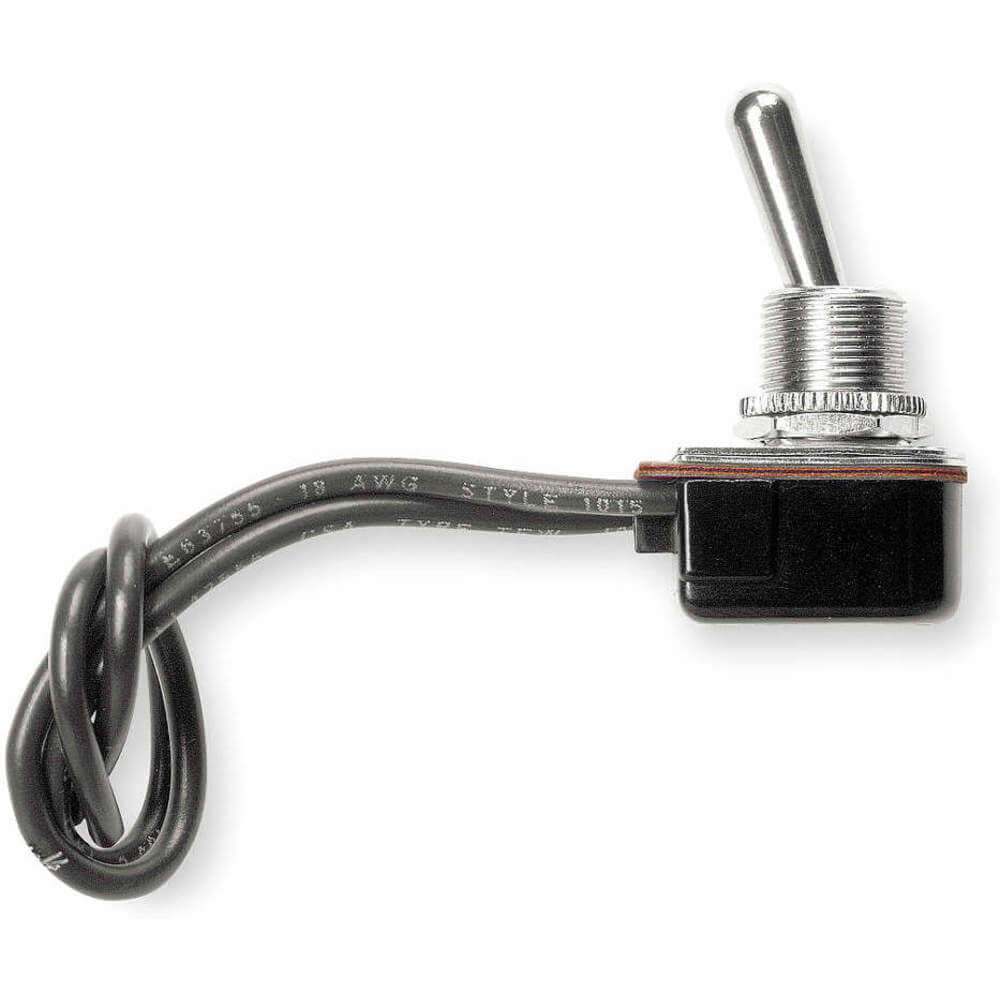

111-16-73 | 2 | Wire Leads | 1/2" | 3 | Non-Illuminated | On/None/Off | 6A @ 125V AC, 3A @ 250V AC | 3A @ 250V, 6A @ 125V | €7.03 | |
|
2FA54-73 | 2 | Screw Terminal | 1/2" | 3 | Non-Illuminated | On/None/Off | 10A @ 250V, 15A @ 125V | Not Rated | €6.42 | |
|
6FA58-73 | 2 | Screw Terminal | 1/2" | 3 | Non-Illuminated | On/None/Momentary Off | 10A @ 250V, 15A @ 125V | Not Rated | €7.37 |
