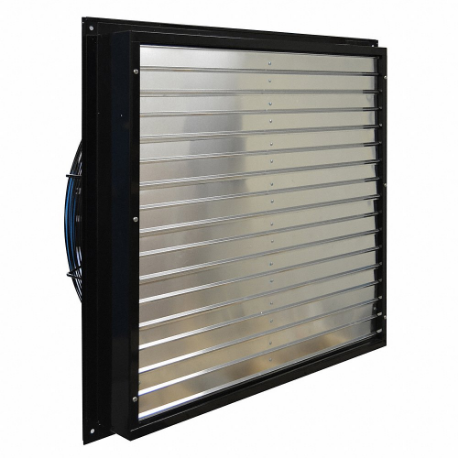

CANARM XFS36 Exhaust Shutter Fan, 36 Inch Blade, 1 Speed, 1 Hp, Totally Enclosed Air Over, 10, 500 Cfm
Get it by Wednesday, Jul 1
€1,227.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Exhaust Shutter Fan |
| Blade Dia. | 36" |
| Blade Material | Steel |
| Exhaust Airflow @ 0.125 In Sp | 6339 CFM |
| Exhaust Airflow @ 0.250 In Sp | 10500 CFM |
| Exhaust/supply Fan Item | Exhaust Fan |
| Exhaust/supply Fan Motor Hp | 1 hp |
| Frame Finish | Powder Coating |
| Frame Material | Steel |
| Full Load Amps | 7.2A |
| Guard Material | Powder Coat |
| Hp | 1 hp |
| Included | 9 Ft. Power Cord With 115V 3-Prong Plug, Intake Guard, Shutter |
| Max. Depth | 14 1/2" |
| Max. Exhaust Airflow @ 0.000 In Sp | 10500 CFM |
| Max. Noise Level | 27 sones |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Hp | 1 hp |
| Motor Insulation | Class B |
| Motor Speed | 943 RPM , 970 RPM |
| Motor Type | Outside Rotor Motor |
| Nameplate Voltage | 115V AC |
| No. Of Blades | 5 |
| No. Of Speed | 1 |
| Noise Level @ 0.000 In Sp @ 5 Ft | 27 sones |
| Overall Depth | 14 1/2" |
| Overall Height | 40 7/8" |
| Overall Width | 40 7/8" |
| Phase | 1 |
| Speed Control Item No. | Not Applicable |
| Square Opening Required | 40" |
| Thermal Protection | Yes |
| Ventilation Type | Exhaust |
| Wire Guard Finish | Powder Coated |
Shipping Info:
| Ship weight (kg) | 45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Blade Material | Blade Dia. | Phase | Motor Speed | Frame Material | Motor Hp | Max. Exhaust Airflow @ 0.000 In Sp | Nameplate Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AX12-1V | Steel | 12" | 1 | 1700 RPM | Aluminum | 1/3 hp | 1650 CFM | 115/230V AC | €578.79 | |
|
AX12-1M | Steel | 12" | 3 | 1700 RPM | Aluminum | 1/3 hp | 1650 CFM | 230/460V AC | €470.63 | |
|
AX12-2 | Steel | 12" | 1 | 1625 RPM | Aluminum | 1/4 hp | 1640 CFM | 115V AC | €454.81 | |
|
AX12-3 | Steel | 12" | 1 | 1725 RPM | Aluminum | 1/4 hp | 1670 CFM | 115V AC | €571.31 | |
 |
AX14-1VHE | Steel | 14" | 1 | 1450 RPM | Aluminum | 1/15 hp | 1600 CFM | 115V AC | €437.82 | |
|
AX14-1M | Steel | 14" | 3 | 1700 RPM | Aluminum | 1/3 hp | - | 230/460V AC | €515.39 | |
 |
AX14-4M | Steel | 14" | 3 | 1725 RPM | Aluminum | 1/3 hp | 2190 CFM | 230/460V AC | €1,240.22 |
