CANARM P14-4M Panel Fan, Direct Drive, 14 Inch Size Blade, 1/3 hp, 2, 190 cfm, 230/460VAC, 3 ph | CQ8EDG 788N53

CANARM P14-4M Panel Fan, Direct Drive, 14 Inch Size Blade, 1/3 hp, 2, 190 cfm, 230/460VAC, 3 ph

Item: CQ8EDGModel: P14-4MCross Ref: 788N53
Check Availability
In Stock

Get it by Friday, Dec 19

€1,345.81
10.00% off
€1,211.23 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Fan
Assembled Assembled
Bearing Type Ball
Blade Dia. 14"
Blade Material Steel
Drive Type Direct Drive
Frame Finish Powder Coated
Frame Material Steel
Full Load Current 6.6A
Guard Finish Chrome
Guard Material Steel
Guard Type Intake
Hazardous Location Class Class I, Division 1, Group C And D, Class II, Division 1, Group F And G
Includes Drive Package With Motor Yes
Includes Grill No
Includes Motor Yes
Max. Exhaust Airflow @ 0.125 In Sp 2000 CFM
Max. Noise Level @ 0.000 In Sp @ 5 Ft 15 sones
Maximum Exhaust Airflow @ 0.000 In Sp 2190 CFM
Maximum Noise Level 15 sones
Motor Enclosure Totally Enclosed Air Over
Motor Horsepower 1/3 hp
Motor Hp 333/1000 hp
Motor Insulation Class 1
Motor Insulation Class Class 1
Motor Speed 1725 RPM
Motor Type DC
Motor Voltage 230/460V AC
Mounting Location Wall
Mounting Orientation Horizontal
Nameplate Voltage 230/460V AC
Noise Level @ 0.000 In Sp @ 5 Ft 15 sones
Number Of Blades 3
Number Of Speeds Variable
Overall Depth 13 3/4"
Overall Height 19 1/4"
Overall Width 19 1/4"
Phase 3
Speed Control No
Vent Design Ductless
Ventilation Type Exhaust

Shipping Info:

Ship weight (kg) 24.75
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginCA

Product Variants

ProductModelNumber Of SpeedsMotor SpeedMax. Noise Level @ 0.000 In Sp @ 5 FtMotor HpNameplate VoltageMotor VoltageMaximum Exhaust Airflow @ 0.250 In SpMax. Exhaust Airflow @ 0.000 In SpPrice
CANARM P12-1VHE Panel Fan, Direct Drive, 12 Inch Size Blade, 1/15 hp, 1, 350 cfm, 115VAC, 1 ph | CQ8EDE 788N50 P12-1VHEVariable1450 RPM10 sones1/15 hp115V AC115V AC1150 CFM1350 CFM€440.79
CANARM P14-1VHE Panel Fan, Direct Drive, 14 Inch Size Blade, 1/15 hp, 1, 600 cfm, 115VAC, 1 ph | CQ8EDF 788N52 P14-1VHEVariable1450 RPM13 sones1/15 hp115V AC115V AC1300 CFM1600 CFM€455.62
CANARM P16-1VHE Panel Fan, Direct Drive, 16 Inch Size Blade, 1/15 hp, 1, 850 cfm, 115VAC, 1 ph | CQ8EDH 788N54 P16-1VHEVariable1450 RPM12 sones1/15 hp115V AC115V AC--€474.96

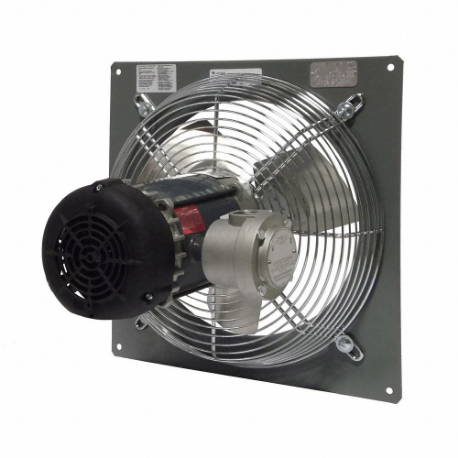

CANARM P16-4M Panel Fan, Direct Drive, 16 Inch Size Blade, 1/3 hp, 2, 580 cfm, 230/460VAC, 3 ph | CQ8EDJ 788N55 P16-4MVariable1725 RPM17 sones333/1000 hp230/460V AC230/460V AC2270 CFM-€1,348.56

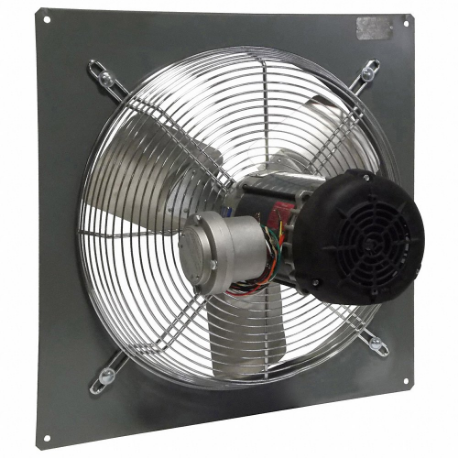

CANARM P18-4M Panel Fan, Direct Drive, 18 Inch Size Blade, 1/3 hp, 3, 200 cfm, 230/460VAC, 3 ph | CQ8EDK 788N56 P18-4MVariable1725 RPM23 sones333/1000 hp230/460V AC230/460V AC--€1,306.39
CANARM P20-4M Panel Fan, Direct Drive, 20 Inch Size Blade, 1/3 hp, 3, 640 cfm, 230/460VAC, 3 ph | CQ8EDL 788N57 P20-4MVariable1725 RPM30 sones333/1000 hp230/460V AC230/460V AC3140 CFM3640 CFM€1,339.85

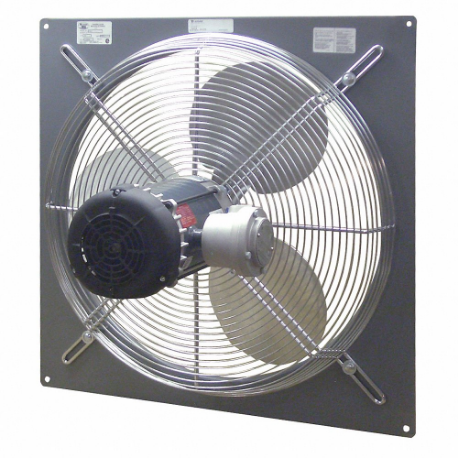

CANARM P24-4M Panel Fan, Direct Drive, 24 Inch Size Blade, 1/3 hp, 5, 520 cfm, 230/460VAC, 3 ph | CQ8EDM 788N58 P24-4M11725 RPM30 sones333/1000 hp230/460V AC230/460V AC5130 CFM5520 CFM€1,609.55
