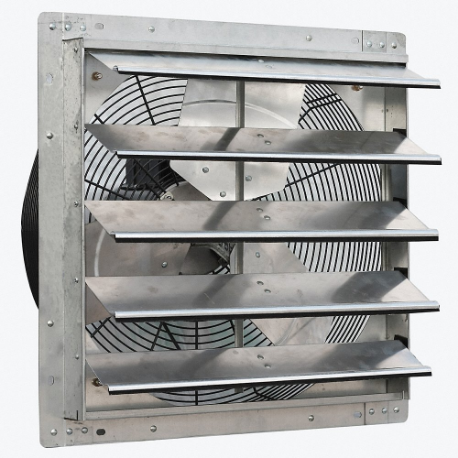

CANARM GSF3-20A Galvanized Shutter Fan, 20 Inch Blade, 3 Speed, 1/4 hp, Totally Enclosed Air Over
Get it by Monday, Jul 6
€413.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fan |
| Blade Dia. | 20" |
| Blade Material | Steel |
| Exhaust/supply Fan Motor Hp | 1/4 hp |
| Frame Finish | Galvalume |
| Frame Material | Aluminum |
| Full Load Amps | 2.59A |
| Guard Material | Chrome Plated Wire |
| Height | 23" |
| Hp | 1/4 hp |
| Max. Depth | 16 3/4" |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Hp | 1/4 hp |
| Motor Insulation | Class B |
| Motor Speed | 1075 RPM |
| Nameplate Voltage | 120V AC |
| No. Of Blades | 3 |
| No. Of Speed | 3 |
| Overall Depth | 16 3/4" |
| Overall Height | 23" |
| Overall Width | 23" |
| Phase | 1 |
| Sq. Opening Required | 21" |
| Thermal Protection | Yes |
| Ventilation Type | Exhaust |
| Width | 23" |
| Wire Guard Finish | Powder Coat |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Product | Model | Blade Material | Blade Dia. | Phase | Motor Speed | Frame Material | Motor Hp | Max. Exhaust Airflow @ 0.000 In Sp | Nameplate Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AX12-1V | Steel | 12" | 1 | 1700 RPM | Aluminum | 1/3 hp | 1650 CFM | 115/230V AC | €578.79 | |
|
AX12-1M | Steel | 12" | 3 | 1700 RPM | Aluminum | 1/3 hp | 1650 CFM | 230/460V AC | €470.63 | |
|
AX12-2 | Steel | 12" | 1 | 1625 RPM | Aluminum | 1/4 hp | 1640 CFM | 115V AC | €454.81 | |
|
AX12-3 | Steel | 12" | 1 | 1725 RPM | Aluminum | 1/4 hp | 1670 CFM | 115V AC | €571.31 | |
 |
AX14-1VHE | Steel | 14" | 1 | 1450 RPM | Aluminum | 1/15 hp | 1600 CFM | 115V AC | €437.82 | |
|
AX14-1M | Steel | 14" | 3 | 1700 RPM | Aluminum | 1/3 hp | - | 230/460V AC | €515.39 | |
 |
AX14-4M | Steel | 14" | 3 | 1725 RPM | Aluminum | 1/3 hp | 2190 CFM | 230/460V AC | €1,240.22 |
