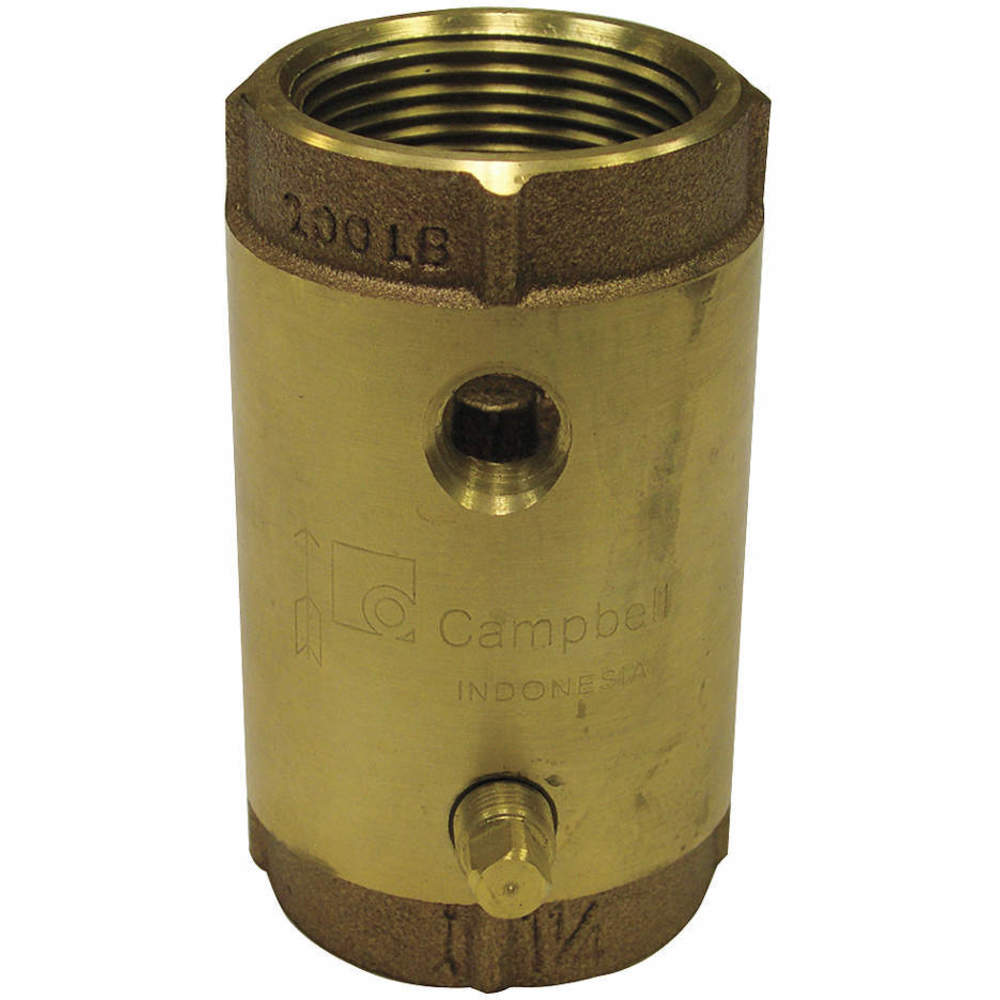

CAMPBELL CHAIN AND FITTINGS CVB-5TLF Spring Check Valve With Taps 1-1/4 Inch
Item: AC7AGZModel: CVB-5TLFCross Ref: 36Y058
7 In Stock
Ships within 2 days via
10.00% off
€78.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spring Check Valve with Taps |
| 3-a Compliance | Not Rated |
| Application - Valves | General Purpose |
| Body Material | Brass |
| Check Mechanism | Poppet |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1 1/4" |
| Connection Size - Side 2 | 1 1/4" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Cracking Pressure | 0.5 psi |
| Flow Design | Single |
| Flow Rate | 23 GPM |
| For Media | Water |
| Full Flow - Valves | No |
| Includes Counterweight | No Counterweight |
| Length | 3 3/4" |
| Material | Low Lead Brass |
| Max. Pressure (cwp) | 200 psi |
| Max. Pressure (steam) | Not Rated |
| Max. Steam Pressure - Valves | Not Rated |
| Max. Temp. | 190°F |
| Max. Water Pressure | 200 psi |
| Media Temperature Range | 35°F to 158°F |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | 35°F |
| Overall Height | 2 1/4" |
| Overall Length | 3.75" |
| Pipe Size | 1 1/4" |
| Poppet Material | Stainless Steel |
| Poppet Material Grade | Grade 304 |
| Screen Material | Stainless Steel |
| Seal Material | Buna-N |
| Seat Material | Bronze |
| Seat Material - Check Valves | Bronze |
| Silent Check | Standard |
| Size | 1 1/4" |
| Spring Material | Stainless Steel |
| Spring Material - Check Valves | Stainless Steel |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | CV Series |
| Width | 2 1/4" |
Shipping Info:
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 8.13 |
| Ship length (cm) | 18.54 |
| Ship width (cm) | 16.76 |
| HS code | 8481301090 |
| Country of Origin | ID |
Product Variants
| Product | Model | Overall Height | Flow Rate | Body Material | Connection Type | Pipe Size | Max. Temp. | Seat Material | Cracking Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CVB-4TLF | 1 3/4" | 18 GPM | Brass | FNPT x FNPT | - | 190°F | Bronze | 0.5 psi | €57.39 |
