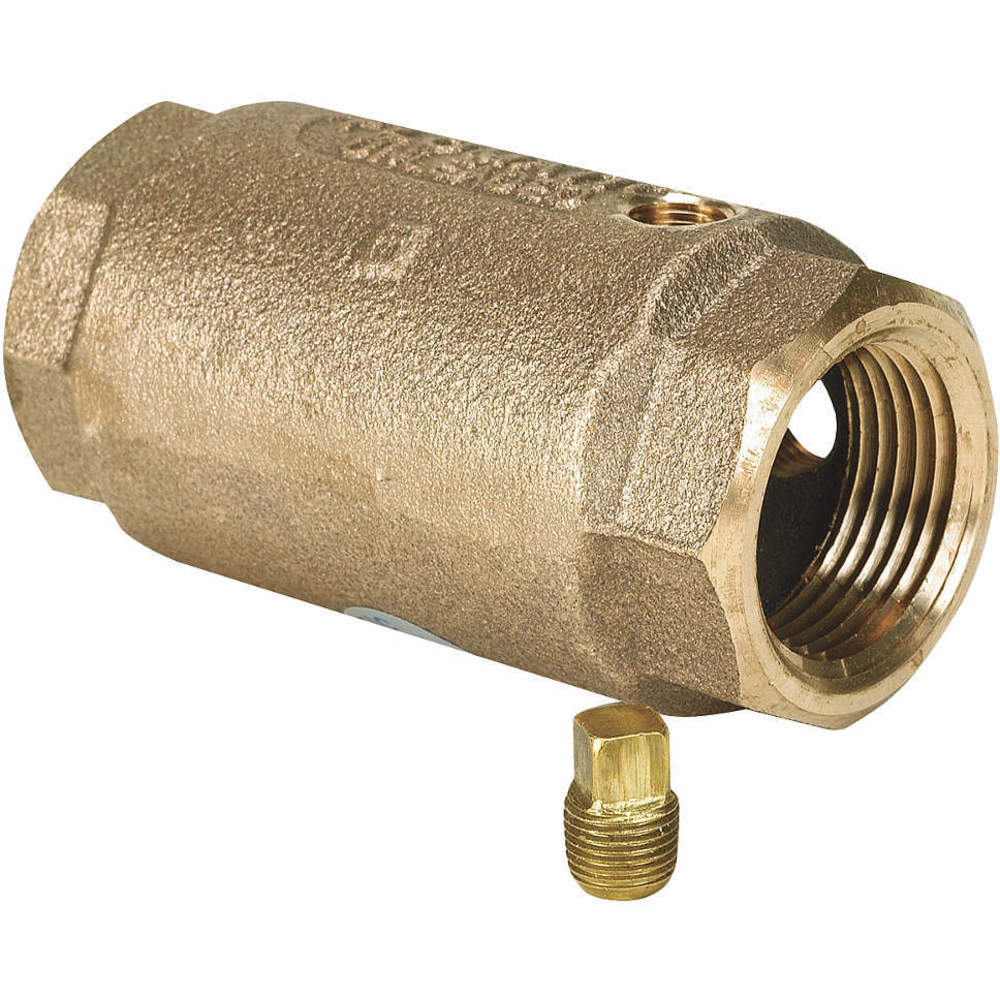

CAMPBELL CHAIN AND FITTINGS 4061EVFD Check Valve Lead Free Brass 1 Inch Fnpt
Item: AE2MHMModel: 4061EVFDCross Ref: 4YFC8
7 In Stock
Ships within 2 days via
€125.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Check Valve |
| 3-a Certified | Not Rated |
| Body Material | Bronze |
| Check Mechanism | Poppet |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 1" |
| Connection Size-side 2 | 1" |
| Connection Type | FNPT x FNPT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| Cracking Pressure | 0.5 psi |
| Flow Rate | 18 GPM |
| For Media | Water |
| Included Counterweight | No Counterweight |
| Length | 3 1/2" |
| Material | Lead Free Brass |
| Max. Operating Temp. | 180°F |
| Max. Pressure (cwp) | 400 psi |
| Max. Pressure-steam | Not Rated |
| Max. Water Pressure | 400 psi |
| Media Temp. | 35°F to 180°F |
| Min. Operating Temp. | 35°F |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal, Vertical |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Overall Height | 1 3/4" |
| Overall Length | 2.09" |
| Pipe Size | 1" |
| Poppet Material | 302 Stainless Steel |
| Screen Material | Stainless Steel |
| Seal Material | Buna N |
| Seat Material | Bronze |
| Silent Check | Standard |
| Size | 1" |
| Spring Material | Stainless Steel |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | 80CE Series |
| Width | 1 3/4" |
Shipping Info:
| Ship weight (kg) | 0.61 |
| Ship height (cm) | 12.45 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 5.08 |
| HS code | 8481301010 |
| Country of Origin | US |
Product Variants
| Product | Model | Size | Connection Size-side 1 | Connection Size-side 2 | Flow Rate | Seat Material | For Media | Media Temp. | Connection Type-side 1 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

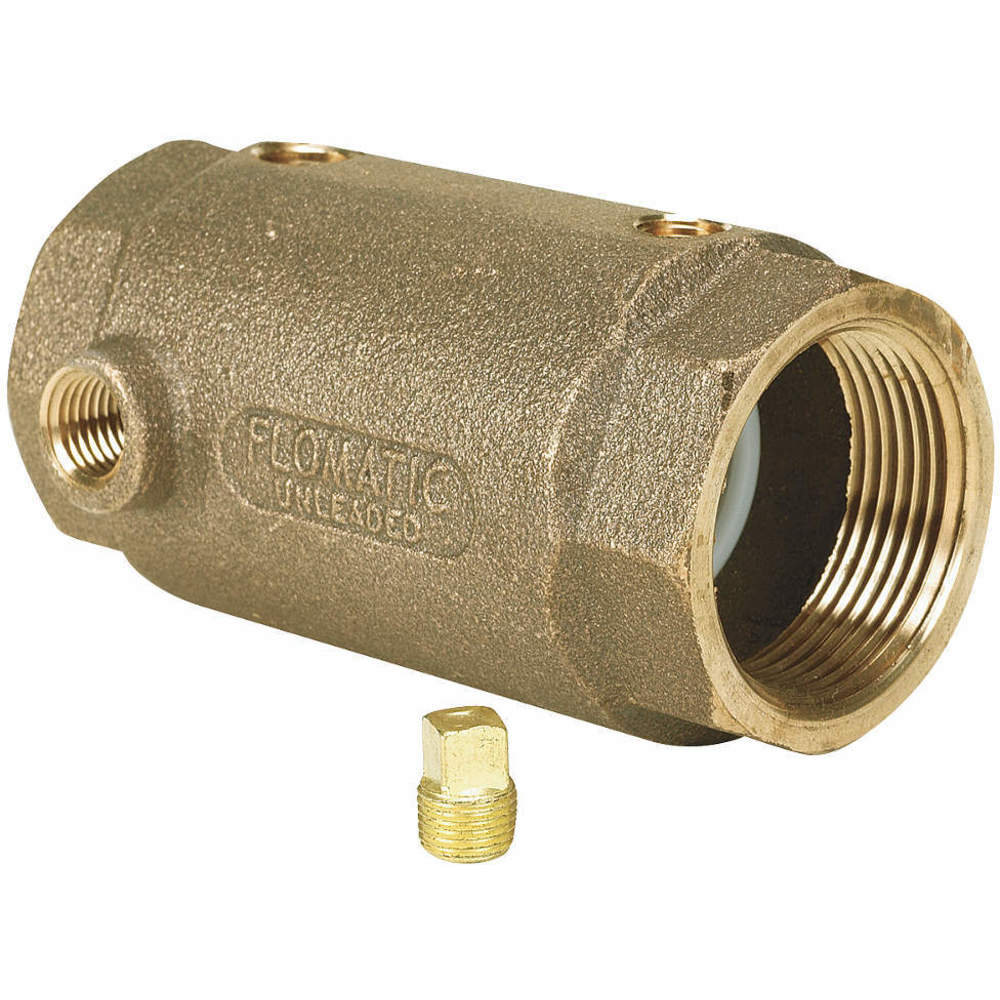

4062EVFD | 1.25" | 1 1/4" | 1 1/4" | 23 GPM | Bronze | Water | 35°F to 180°F | NPT | €159.72 |
