CAMPBELL CHAIN AND FITTINGS 4061EVFD Check Valve Lead Free Brass 1 Inch Fnpt
Item: AE2MHMModel: 4061EVFDCross Ref: 4YFC8
7 In Stock
Ships within 2 days via
10.00% off
€131.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Check Valve |
| 3-a Compliance | Not Rated |
| Body Material | Bronze |
| Check Mechanism | Poppet |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Cracking Pressure | 0.5 psi |
| Flow Rate | 18 GPM |
| For Media | Water |
| Includes Counterweight | No Counterweight |
| Length | 3 1/2" |
| Material | Lead Free Brass |
| Max. Pressure (cwp) | 400 psi |
| Max. Pressure (steam) | Not Rated |
| Max. Water Pressure | 400 psi |
| Media Temperature Range | 35°F to 180°F |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Operating Temperature - Maximum | 180°F |
| Operating Temperature - Minimum | 35°F |
| Overall Height | 1 3/4" |
| Overall Length | 2.09" |
| Pipe Size | 1" |
| Poppet Material | 302 Stainless Steel |
| Screen Material | Stainless Steel |
| Seal Material | Buna N |
| Seat Material | Bronze |
| Silent Check | Standard |
| Size | 1" |
| Spring Material | Stainless Steel |
| Standards | Nsf/Ansi 372 |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | 80CE Series |
| Width | 1 3/4" |
Shipping Info:
| Ship weight (kg) | 0.61 |
| Ship height (cm) | 12.45 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 5.08 |
| HS code | 8481301010 |
| Country of Origin | US |
Product Variants
| Product | Model | Pipe Size | Flow Rate | Body Material | Connection Type | Seat Material | Cracking Pressure | Max. Water Pressure | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

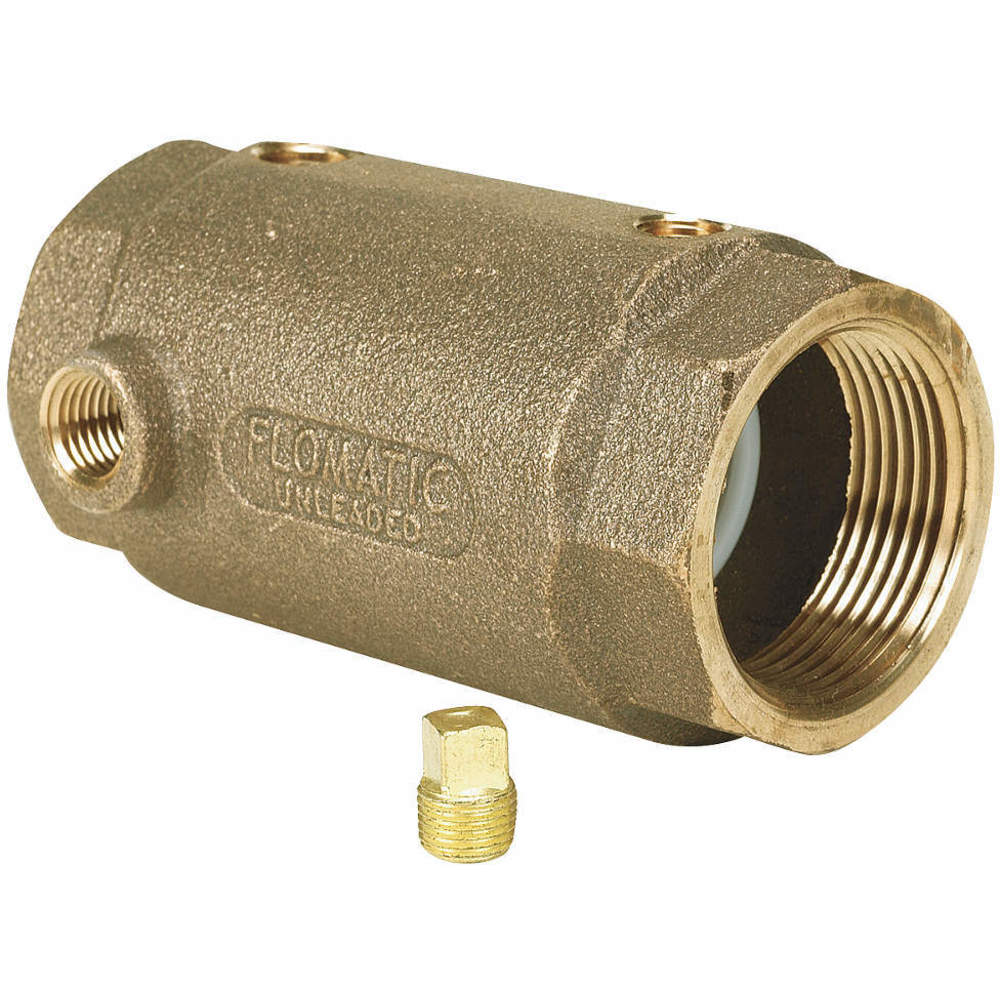

4062EVFD | 1 1/4" | 23 GPM | Bronze | FNPT x FNPT | Bronze | 0.5 psi | 400 psi | Buna N | €190.47 |
