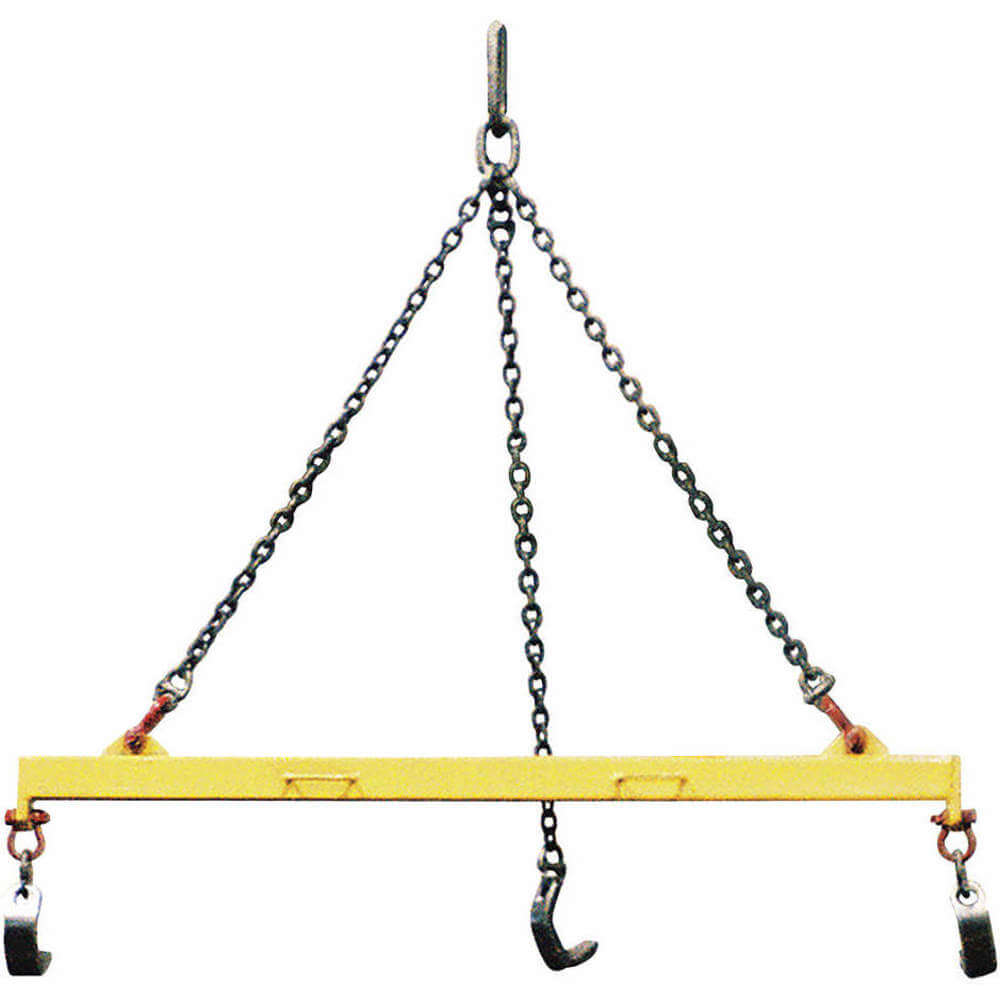

CALDWELL PL-10 Plate Lifter 10 t Cap 36 Inch x 96 Inch Spread
Get it by Tuesday, Dec 23
10.00% off
€9,482.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Manual Plate Lifter |
| Bail Adjustability | Fixed |
| Bail Height | 1 1/4" |
| Bail Inside Length | 7 1/2" |
| Bail Inside Width | 4 3/8" |
| Bail Opening Height | 7-1/2" |
| Bail Opening Height | 7 1/2" |
| Bail Opening Width | 4-3/8" |
| Bail Opening Width | 4 3/8" |
| Bail Thickness | 1-1/4" |
| Bail Thickness | 1 1/4" |
| Beam Type | Plate Lifter |
| Color | Yellow |
| Hardware Included | Plate Hooks, Rigging Chain |
| Headroom | 58" |
| Hook Opening Width | 5" |
| Material | Steel |
| Max. Spread | 96" |
| Min. Spread | 36" |
| Product Datasheet | caldwell-pl-10.pdf |
| Spread | 36" to 96" |
| Spread Adjustability | Adjustable |
| Spread Adjustment Increments | 1" |
| Standards | Asme |
| Working Load Limit | 20000 lbs. |
Shipping Info:
| Ship weight (kg) | 184.5 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 243.84 |
| Ship width (cm) | 101.6 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Bail Thickness | Bail Opening Height | Bail Opening Width | Working Load Limit | Color | Material | Headroom | Max. Spread | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL-5 | 1" | 6" | 3 1/2" | 10000 lbs. | Yellow | Steel | 58" | 96" | €8,898.87 |
