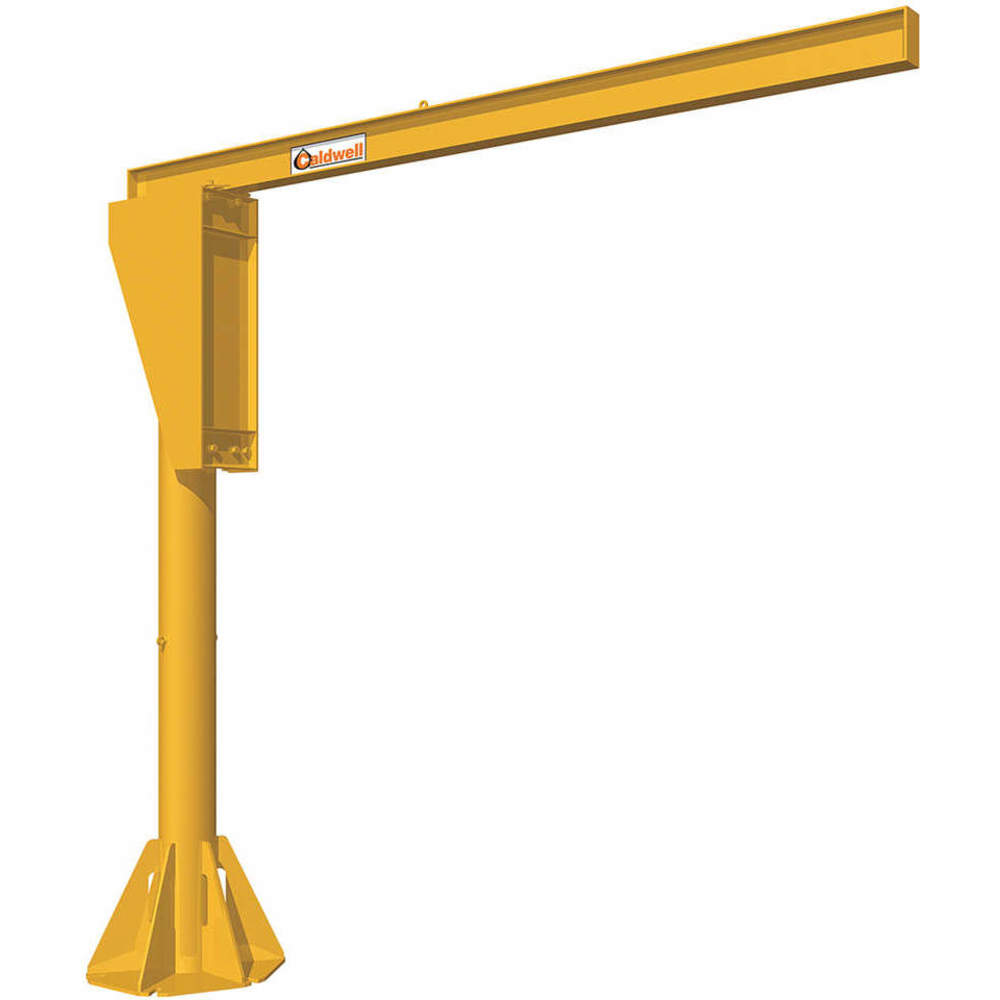

CALDWELL A360-5-10/8 Jib Crane Base Mounted 10000 Lb 8 Feet
Get it by Thursday, Dec 18
10.00% off
€25,325.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Jib Crane |
| Beam Flange Width | 7" |
| Beam Type | Open Beam |
| Body Finish | Voc Alkyd |
| Body Material | Steel |
| Color | Yellow |
| Construction | Welded Steel |
| Finish | Paint |
| Flange Width | 7" |
| Height Under Beam | 10 ft. |
| Height Under Span | 10 ft. |
| Lift | 0" to 120" |
| Lift Range | 0" to 120" |
| Load Capacity | 10000 lbs. |
| Mast Dia. | 18" |
| Mount Type | Base Plate Mounted |
| Mounting Type | Base |
| Operation Mode | Manual |
| Overall Beam Length | 8 ft. |
| Overall Height | 11.59375 ft. |
| Reach | 8 ft. |
| Span | 8 ft. |
| Standards | Asme B30.20, Asme B30.9, Asme Bth-1 |
| Swivel Angle | 360° |
| Tonnage - Load Capacity | 5 ton. |
| Type | Base Mount |
| Usable Beam Length | 6.5 ft. |
Shipping Info:
| Ship weight (kg) | 1233 |
| Ship height (cm) | 152.4 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 152.4 |
| HS code | 7326908595 |
| Country of Origin | US |
Product Variants
| Model | Overall Height | Overall Beam Length | Height Under Beam | Beam Flange Width | Mast Dia. | Flange Width | Height Under Span | Lift Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| A360-5-10/10 | 11.59375 ft. | 10 ft. | 10 ft. | 7 1/2" | 20" | 7 1/2" | 10 ft. | 0" to 120" | €33,217.01 | |
| A360-5-10/12 | 11.90625 ft. | 12 ft. | 10 ft. | 7 1/2" | 24" | 7 1/2" | 10 ft. | 0" to 120" | €39,302.20 | |
| A360-5-10/14 | 11.90625 ft. | 14 ft. | 10 ft. | 8 1/4" | 24" | 8 1/4" | 10 ft. | 0" to 120" | €42,933.03 | |
| A360-5-10/16 | 12 ft. | 16 ft. | 10 ft. | 9" | 24" | 9" | 10 ft. | 0" to 120" | €44,697.76 | |
| A360-5-12/8 | 13.59375 ft. | 8 ft. | 12 ft. | 7" | 18" | 7" | 12 ft. | 0" to 144" | €29,743.82 | |
| A360-5-12/10 | 13.59375 ft. | 10 ft. | 12 ft. | 7 1/2" | 20" | 7 1/2" | 12 ft. | 0" to 144" | €34,610.95 | |
| A360-5-12/12 | 13.90625 ft. | 12 ft. | 12 ft. | 7 1/2" | 24" | 7 1/2" | 12 ft. | 0" to 144" | €42,127.87 |
