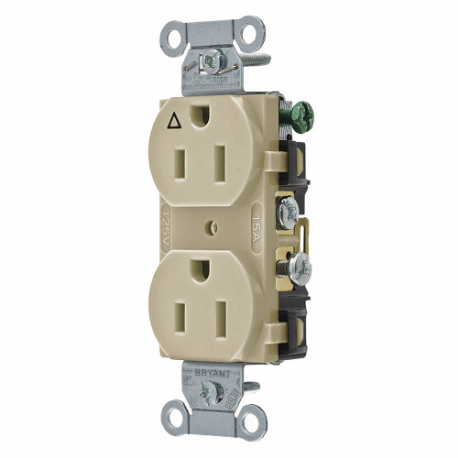

BRYANT CR15IGI Receptacle, Duplex, 5-15R, 15 A, 125V AC, Ivory, 2 Poles, Screw Terminals
Item: CP8XVHModel: CR15IGICross Ref: 52HD74
7 In Stock
Ships within 2 days via
10.00% off
€9.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Body Material | Composite |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 15A |
| Depth | 23/25" |
| Face Plate Height | 2.7" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded, Isolated Ground |
| Horsepower Rating | 1/2 hp |
| Housing Color | Ivory |
| Housing Material | Composite |
| Hp | 1/2 hp |
| Includes | Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Max. Wire Size | 12 AWG |
| Maximum Wire Size | 12 AWG |
| Min. Wire Size | 14 AWG |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 4.1" |
| Mount Type | Flush |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Depth | 0.9" |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Special Resistance | Corrosion Resistant |
| Standards | Csa Certified, Federal Specification, Ul Listed |
| Surge Protection | No |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
