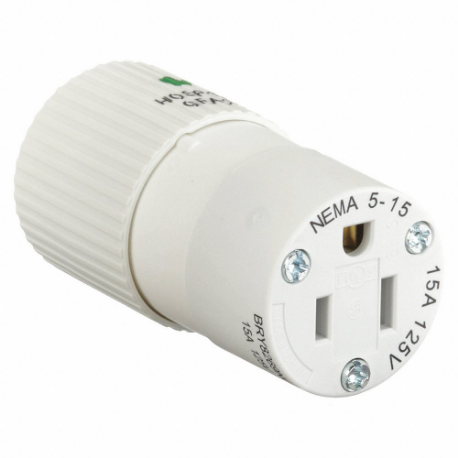

BRYANT BRY8269NC Straight Blade Connector, 5-15R, 15 A, 125VAC, 2 Poles, White, Hospital Grade
Item: CQ2EVWModel: BRY8269NCCross Ref: 49YY29
7 In Stock
Ships within 2 days via
10.00% off
€45.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connector |
| Amps | 15A |
| Current Rating | 15A |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 0.66" |
| For Minimum Cable Diameter | 1/4" |
| Grade | Hospital |
| Grounding | Grounded |
| Housing Color | White |
| Housing Material | Composite |
| Length | 2.95" |
| Market | Commercial, Industrial |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 14 AWG |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Length | 2.95" |
| Phase | Single |
| Power Indicating Light | No |
| Resistance Properties | Chemical Resistant, Dust Ignition Proof, Impact Resistant |
| Standards | Nema Wd-1, Nema Wd-5, Ul 498 |
| Voltage Rating | 125V AC |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Current Rating | Housing Color | Housing Material | Nema Receptacle Configuration | For Minimum Cable Diameter | Max. Operating Temp. | Min. Wire Size | Insulation Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

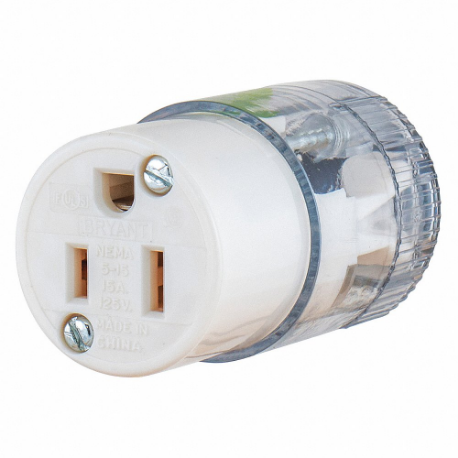

8269T | 15A | Clear | Thermoplastic Elastomer | NEMA 5-15R | 1/4" | 60°C | 18 AWG | Thermoplastic Elastomer | €38.72 | |
 |

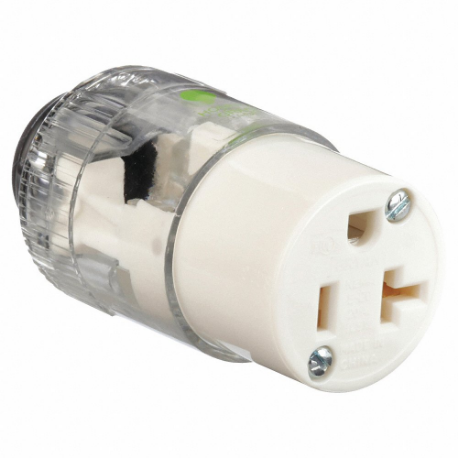

8369T | 20A | Clear | Nylon, Polycarbonate | NEMA 5-20R | 0.3" | - | - | Nylon, Polycarbonate | €46.47 | |
 |

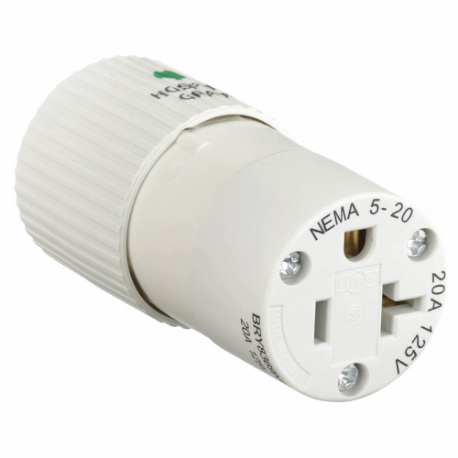

BRY8369NC | 20A | White | Composite | NEMA 5-20R | 1/4" | 75°C | 14 AWG | - | €54.68 |
