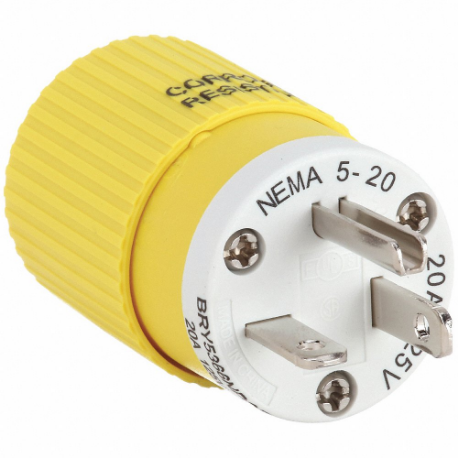

BRYANT BRY5366NPCR Straight Blade Plug, 5-20P, 20 A, 125VAC, 2 Poles, Yellow
Item: CQ3RBRModel: BRY5366NPCRCross Ref: 49YY52
7 In Stock
Ships within 2 days via
10.00% off
€25.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug |
| Amps | 20A |
| Body Length | 2.18" |
| Compatible With Series | Triple Gripper |
| Connection Orientation | Straight |
| Current Rating | 20A |
| Face Dia. | 1.38" |
| Face Diameter | 1.38" |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 0.655" |
| For Minimum Cable Diameter | 0.245" |
| Grounding | Grounded |
| Horsepower Rating | 1 hp |
| Housing Color | Yellow |
| Housing Material | Composite |
| Hp | 1 hp |
| Insulation Material | Nylon, Polymer |
| Ip Rating | Not Rated |
| Max. Wire Size | 12 AWG |
| Maximum Wire Size | 12 AWG |
| Min. Wire Size | 14 AWG |
| Minimum Wire Size | 14 AWG |
| Nema Plug Configuration | 5-20P |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Outside Dia. | 1 13/25" |
| Outside Diameter | 1.52" |
| Phase | Single |
| Polarized | Yes |
| Resistance Properties | Corrosion Resistant |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
