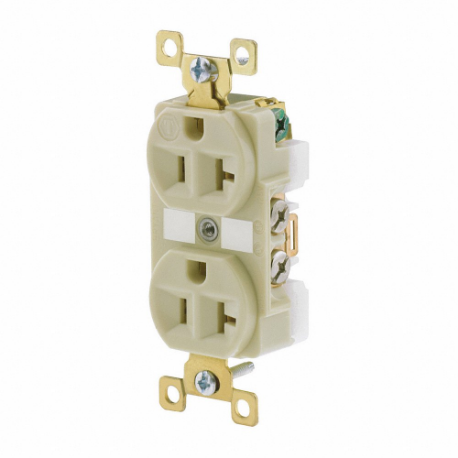

BRYANT BRY5362I Receptacle, Duplex, 5-20R, 125V AC, 20 A, 2 Poles, Ivory, Screw Terminals, Std Protection
Item: CQ2GBMModel: BRY5362ICross Ref: 52HD23
7 In Stock
Ships within 2 days via
10.00% off
€23.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 20A |
| Body Material | Nylon |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Depth | 1 4/25" |
| Face Plate Width | 1.5" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Horsepower Rating | 1 hp |
| Housing Color | Ivory |
| Housing Material | Nylon |
| Hp | 1 hp |
| Includes | Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Max. Wire Size | 12 AWG |
| Maximum Wire Size | 12 AWG |
| Min. Wire Size | 14 AWG |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mount Type | Flush |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Depth | 1.2" |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Signal & Power Protection | Standard Protection |
| Special Resistance Properties | Corrosion Resistant |
| Surge Protection | No |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
