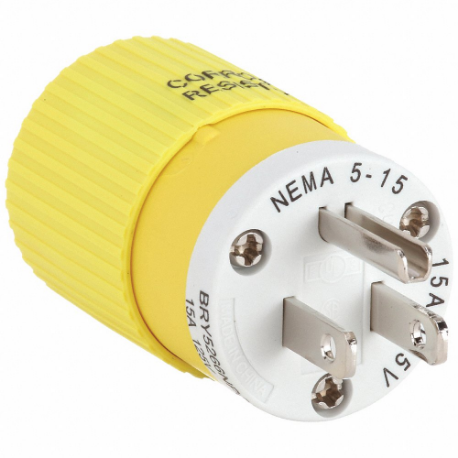

BRYANT BRY5266NPCR Straight Blade Plug, 5-15P, 15 A, 125VAC, Yellow, 2 Poles, Screw Terminals
Item: CQ2GACModel: BRY5266NPCRCross Ref: 49YY50
7 In Stock
Ships within 2 days via
10.00% off
€19.82 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug |
| Amps | 15A |
| Body Length | 2.18" |
| Compatible With Series | Triple Gripper |
| Connection Orientation | Straight |
| Current Rating | 15A |
| Face Dia. | 1.38" |
| Face Diameter | 1.38" |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 0.655" |
| For Minimum Cable Diameter | 0.245" |
| Grounding | Grounded |
| Horsepower Rating | 1/2 hp |
| Housing Color | Yellow |
| Housing Material | Composite |
| Hp | 1/2 hp |
| Insulation Material | Nylon, Polymer |
| Ip Rating | Not Rated |
| Max. Wire Size | 12 AWG |
| Maximum Wire Size | 12 AWG |
| Min. Wire Size | 14 AWG |
| Minimum Wire Size | 14 AWG |
| Nema Plug Configuration | 5-15P |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Outside Dia. | 1 13/25" |
| Outside Diameter | 1.52" |
| Phase | Single |
| Polarized | Yes |
| Resistance Properties | Corrosion Resistant |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Nema Plug Configuration | Amps | Wiring Style | Number Of Poles | Voltage | Connection Orientation | Number Of Blades | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9432ANPB | 14-30P | 30A | Standard | 3 | 125/250V AC | Angled | 4 | Nylon | €81.37 | |
 |
9452ANPB | 14-50P | 50A | Standard | 3 | 125/250V AC | Angled | 4 | Nylon | €105.54 | |
 |
9462ANPB | 14-60P | 60A | Standard | 3 | 125/250V AC | Angled | 4 | Nylon | €115.03 | |
 |
8432ANPB | 15-30P | 30A | Standard | 3 | 250V AC | Angled | 4 | Composite | €88.34 | |
 |
8452ANPB | 15-50P | 50A | Standard | 3 | - | Angled | 4 | Nylon | €106.40 | |
 |
8462ANPB | 15-60P | 60A | Standard | 3 | 250V AC | Angled | 4 | Nylon | €120.34 | |
 |
8362ANPB | 18-60P | 60A | Standard | 4 | 120/208V AC | Angled | 4 | Nylon | €123.94 |
