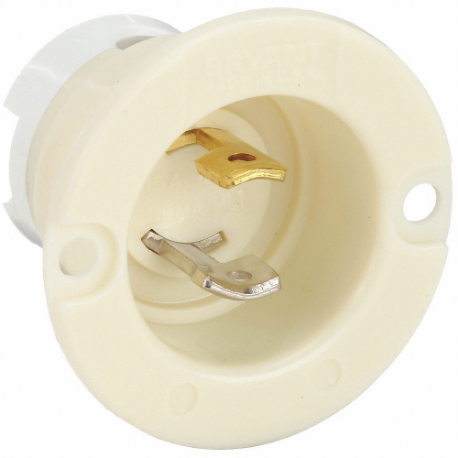

BRYANT 7466N Midget Locking Flanged Inlet, ML1-15P, 15 A, 125V AC, 2 Poles
Item: CQ2FXWModel: 7466NCross Ref: 49YX70
7 In Stock
Ships within 2 days via
10.00% off
€25.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Flanged Inlet |
| Amps | 15A |
| Body Material | Composite |
| Compatible With Series | Midget Lock |
| Current Rating | 15A |
| Face Plate Height | 1 7/25" |
| Face Plate Width | 1.38" |
| Flange Material | Nylon |
| Flange Type | Flanged |
| For Location | Indoor |
| Grounding | Non Grounded |
| Housing Color | White |
| Housing Material | Composite |
| Includes Mounting Hardware | Yes |
| Market | Industrial |
| Max. Operating Temp. | 75°C |
| Max. Surge Current | 15A |
| Max. Wire Size | 12 AWG |
| Maximum Operating Temperature | 75°C |
| Maximum Surge Current | 15A |
| Maximum Wire Size | 12 AWG |
| Midget Locking | Yes |
| Min. Operating Temp. | -40°C |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 18 AWG |
| Mount Hole Center-to-center Width | 1 3/4" |
| Mounting Hardware Included | Yes |
| Nema Plug Configuration | ML1-15P |
| Number Of Blades | 2 |
| Number Of Poles | 2 |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Grounding | Nema Plug Configuration | Number Of Blades | Face Plate Width | Face Plate Height | Current Rating | Voltage Rating | Wire Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

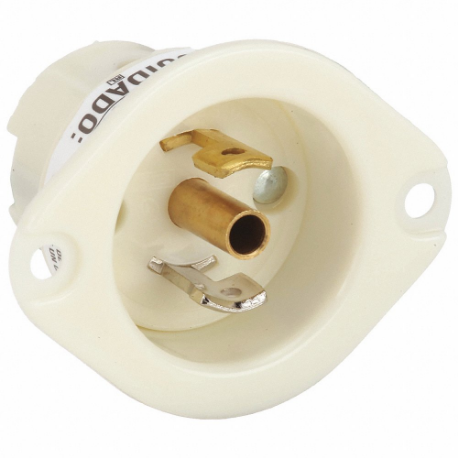

7595MB | Grounded | ML2-15P | 3 | 1.62" | 1.17" | 15A | 125V AC | Screw Terminals | €34.25 |
