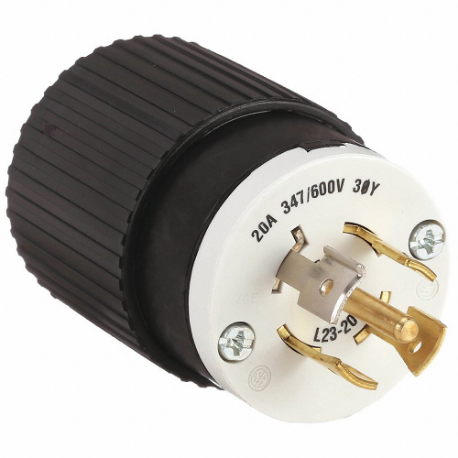

BRYANT 72320NP Locking Plug, L23-20P, 347/600V AC, 20 A, 4 Poles, Black/White, Screw Terminals, L23-20
Item: CQ2FYEModel: 72320NPCross Ref: 49YX38
7 In Stock
Ships within 2 days via
10.00% off
€51.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Amps | 20A |
| Body Length | 2.13" |
| Body Material | Nylon |
| Connection Orientation | Straight |
| Current Rating | 20A |
| Face Dia. | 1.89" |
| Face Diameter | 1.89" |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 1.15" |
| For Minimum Cable Diameter | 0.465" |
| Grounding | Grounded |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Ip Rating | IP20 |
| Length | 2.13" |
| Market | Industrial |
| Maximum Wire Size | 8 AWG |
| Minimum Wire Size | 18 AWG |
| Nema Plug Configuration | L23-20P |
| Number Of Blades | 5 |
| Number Of Poles | 4 |
| Outside Dia. | 2.13" |
| Outside Diameter | 2.13" |
| Overall Length | 2.13" |
| Phase | 3.0 |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Shrouded | No |
| Standards | Nema Wd-1, Nema Wd-5, Ul 498 |
| Voltage | 347/600V AC |
| Voltage Rating | 347/600V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Current Rating | Voltage Rating | Phase | Number Of Poles | Number Of Blades | Housing Color | Nema Plug Configuration | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
71420NP | 20A | 125/250V AC | Single | 3 | 4 | Black, White | L14-20P | Nylon | €44.62 | |
 |
71430NP | 30A | 125/250V AC | Single | 3 | 4 | Black, White | L14-30P | Composite | €58.93 | |
 |
71520NP | 20A | 250V AC | 3.0 | 3 | 4 | Black, White | L15-20P | Nylon | €44.41 | |
 |
BRY71620NP | 20A | 480V AC | 3.0 | 3 | 4 | Black, White | L16-20P | Nylon | €61.59 | |
 |
71630NP | 30A | 480V AC | 3.0 | 3 | 4 | Black, White | L16-30P | Composite | €64.15 | |
 |
72130NP | 30A | 120/208V AC | 3.0 | 4 | 5 | Black, White | L21-30P | Composite | €56.07 | |
 |
4721NP | 15A | 125V AC | Single | 2 | 3 | Black, White | L5-15P | Composite | €27.35 |
