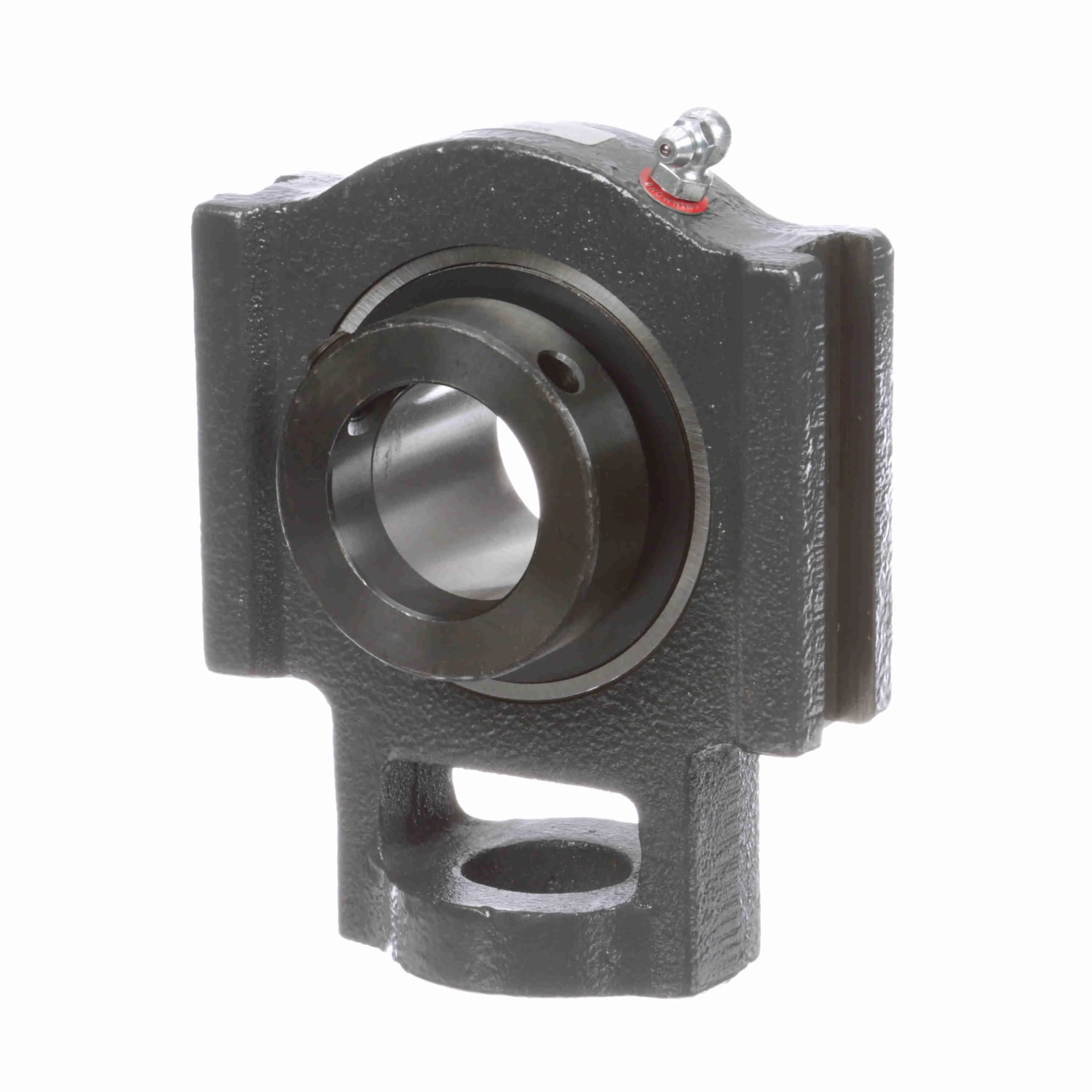

BROWNING VTWE-224 767658 Take Up Ball Bearing Only, 1-1/2 Inch Bore, 11/16 Inch Slot Width, 4 Inch Slot to Slot Distance
Get it by Monday, Aug 17
€180.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Material | Black Oxided Bearing Steel |
| Bearing Type | Take Up |
| Bore Dia. | 1 1/2" |
| Bore Shape | Straight |
| Centerline To Front Face | 1 3/8" |
| Collar Outside Dia. | 2 3/8" |
| Compatible Frame Number | 3SF31, 6SF31, 9SF3112SF31, 18SF31 |
| Dynamic Radial Load Capacity | 7340 lbf. |
| Expansion | No |
| Expansion Type | Non-Expansion |
| Family Series | Browning Bearings |
| Finish, Coating | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Width | 2 1/8" |
| Insert Material | Steel |
| Insert Material | 52100 Steel |
| Insert No. | VE-224 |
| Locking Device | Eccentric |
| Max. Operating Temp. | 200°F |
| Max. Speed | 3500 RPM |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +200°F |
| Outer Ring Land Profile | Standard |
| Overall Length | 5.5938" |
| Overall Width | 1 15/16" |
| Replacement Bearing | VE-125 |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact Seal With Flinger |
| Type Of Bearing | Ball Bearing |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 14.21 |
