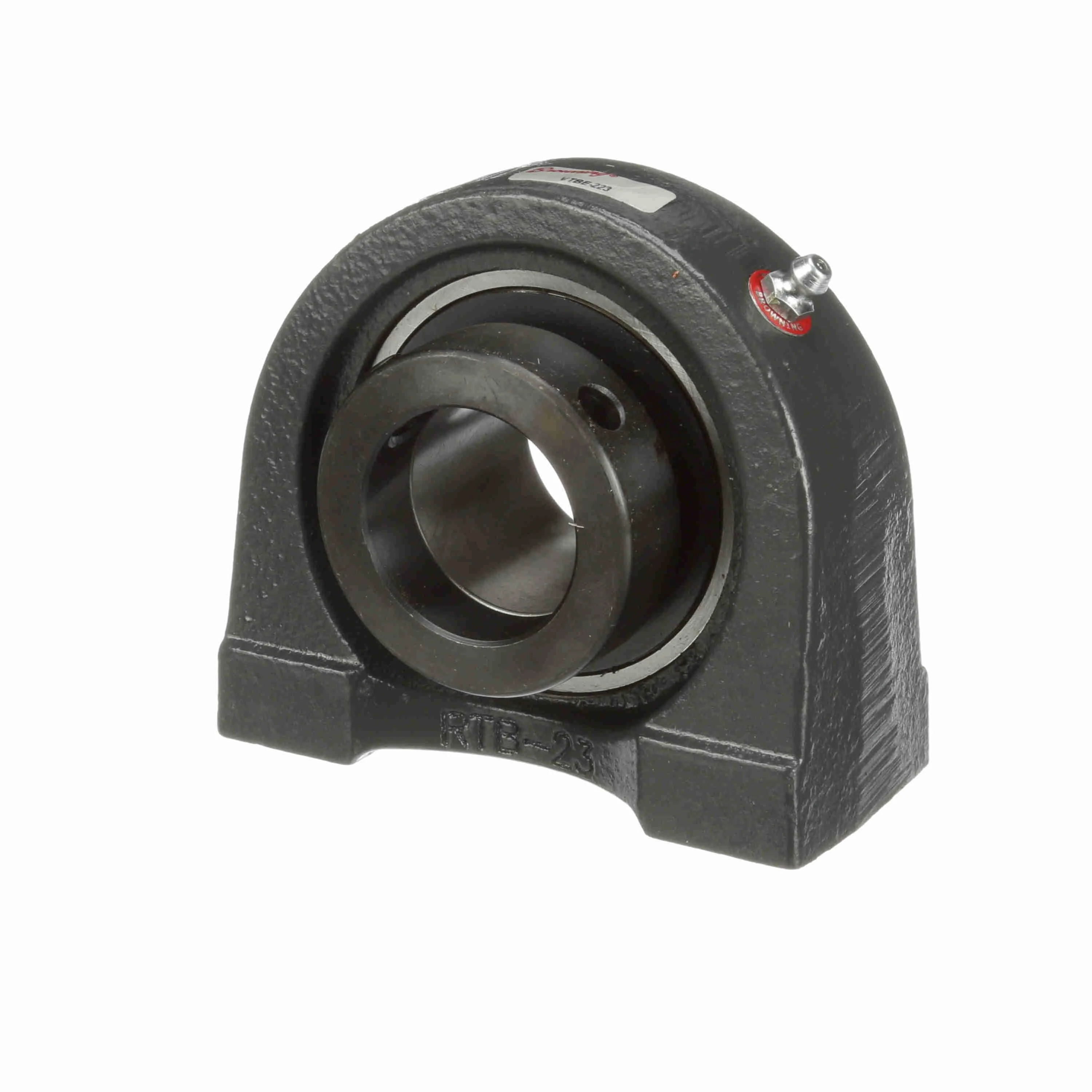

BROWNING VTBE-223 764536 Mounted Cast Iron Tapped Base Pillow Block Ball Bearing
Get it by Friday, Aug 14
€136.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Base Width | 4 1/4" |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Type | Tapped Base Pillow Block |
| Bolt Center To Center Length | 3 1/4" |
| Bore Shape | Straight |
| Centerline To Front Face | 1.27" |
| Collar Outside Dia. | 2.17" |
| Duty Series | Normal |
| Expansion | No |
| Family Series | Browning Bearings |
| Finish | Gray Painted |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert No. | VE-223 |
| Inside Dia. | 1 7/16" |
| Locking Device | Eccentric |
| Max. Operating Temp. | 200°F |
| Misalignment Type | Static Only |
| Mounting Type | Tapped Base |
| Outer Ring Land Profile | Standard |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact With Flinger |
| Temp. Rating | 200°F to 250°F |
| Thread Depth | 3/4" |
Shipping Info:
| Ship weight (kg) | 1.58 |
