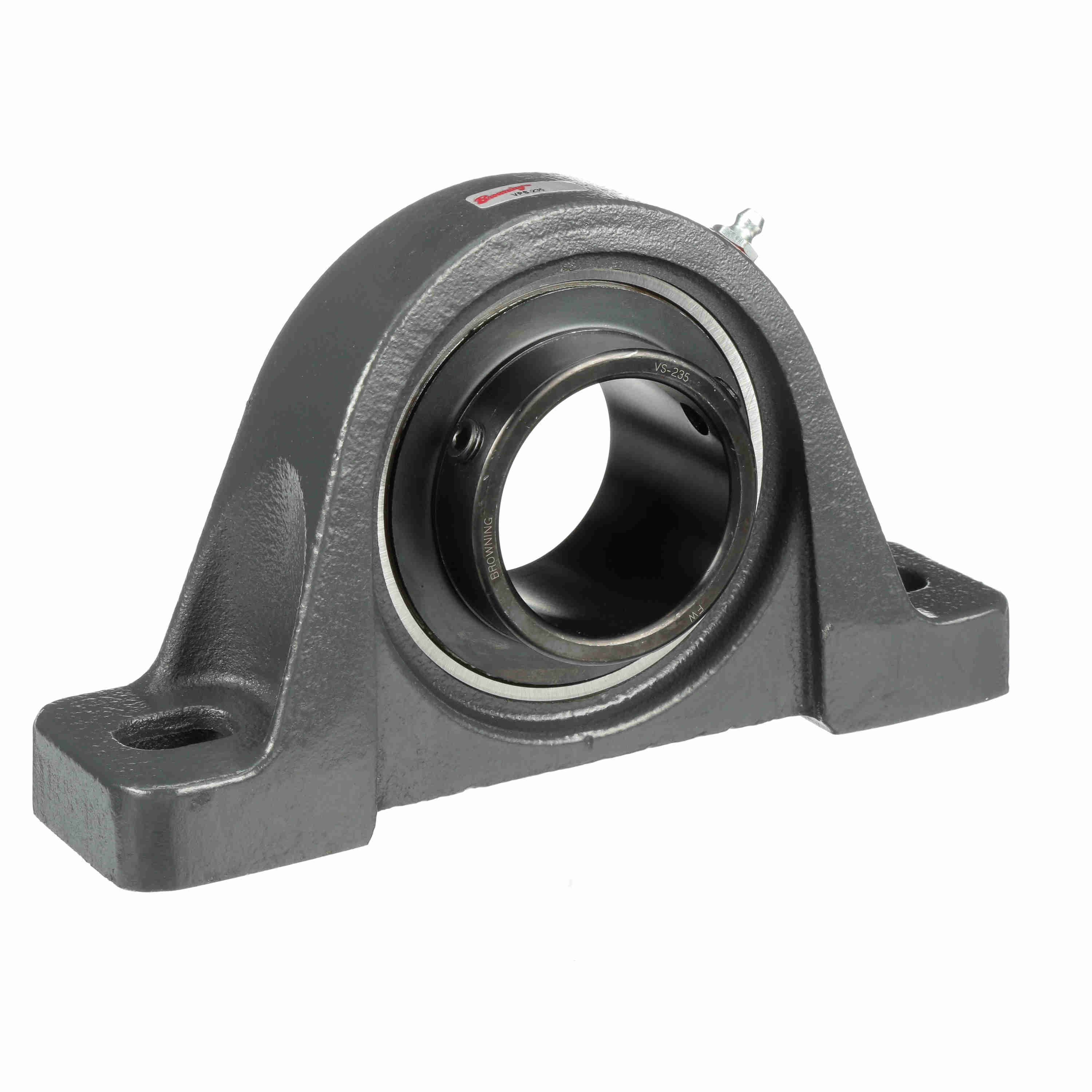

BROWNING VPS-235 767485 Pillow Block Bearing, 2 Bolt, 2-3/16 Inch Bore, 2-1/2 Inch Base to Center Height, Cast Iron, Black Oxide Inner
Get it by Monday, Aug 17
€225.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Application | Browning Standard |
| Base To Bore Centerline | 2 1/2" |
| Base Width | 2.313" |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Type | Two Bolt Pillow Block |
| Bolt Size | 5/8" |
| Bore Dia. | 2 3/16" |
| Bore Shape | Straight |
| Bore Type | Round |
| Centerline To Front Face | 1.313" |
| Duty Series | Normal |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 9752 lbf. |
| Expansion | No |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Browning Bearings |
| Finish, Coating | Gray Painted |
| Foot Height | 7/8" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Inside Ring Outside Dia. | 2.719" |
| Length | 8 13/16" |
| Locking Device | Set Screw |
| Max. Bolt | 7 11/25" |
| Max. Bolt Center | 7.438" |
| Max. Speed | 2500 RPM |
| Min. Bolt Center | 6.438" |
| Misalignment Type | Static Only |
| Mounting Type | 2 Bolt Base |
| Outer Ring Land Profile | Standard |
| Overall Length | 8.813" |
| Product Datasheet | browning-vfbs-212-cty.pdf |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact With Flinger |
| Series | VPS Series |
| Shaft Dia. | 2 3/16" |
| Static Radial Load Capacity | 6601 lbf. |
| Width | 5.5 |
Shipping Info:
| Ship weight (kg) | 3.65 |
| Ship height (cm) | 7.87 |
| Ship length (cm) | 26.16 |
| Country of Origin | MX |
Documentation:
