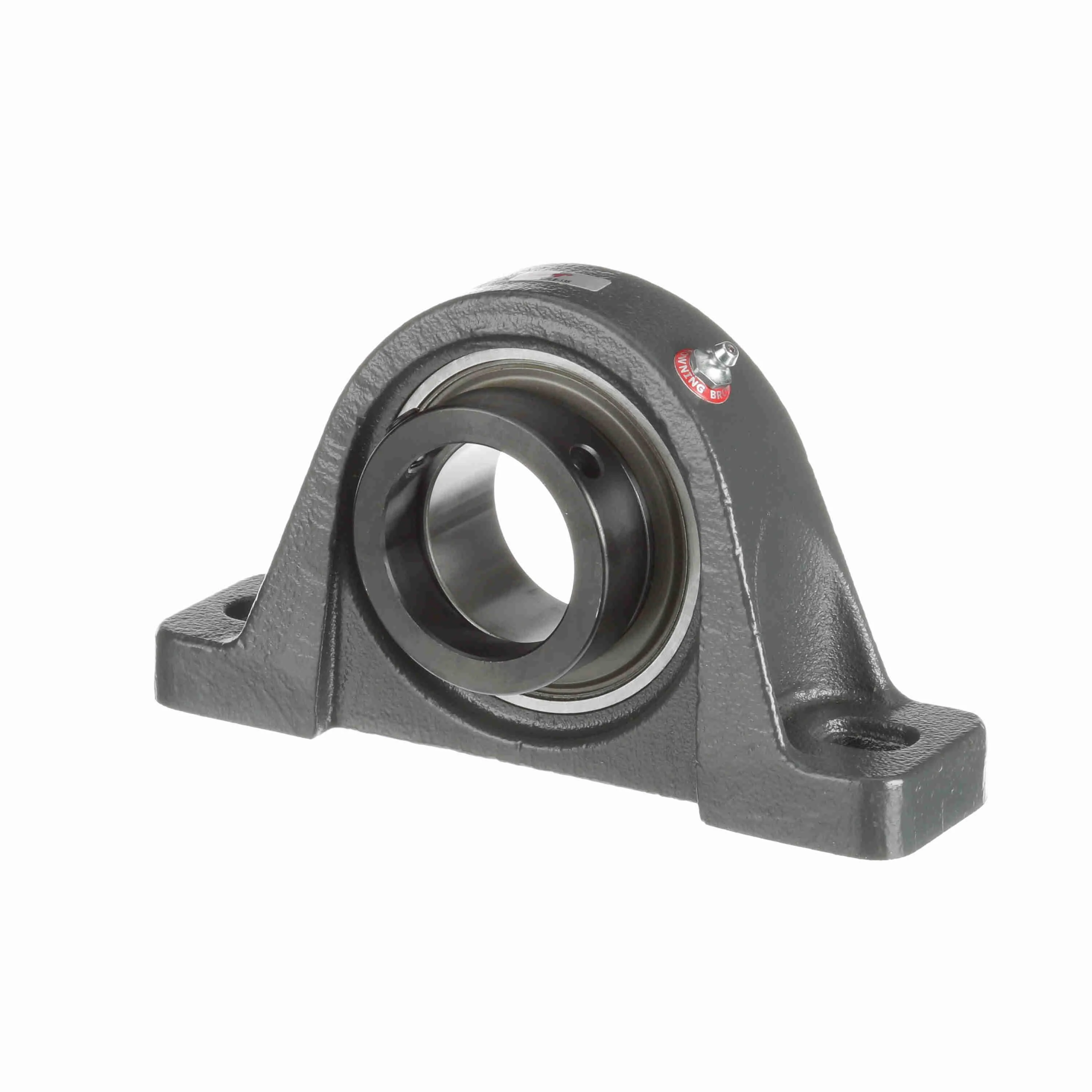

BROWNING VPLE-135 767334 Intermediate Duty Pillow Block Ball Bearing, 2-3/16 in Dia Bore, 6-7/16 to 7-7/16 in L
Get it by Friday, Jul 17
€190.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Application | Browning Standard |
| Base To Bore Centerline | 2 7/16" |
| Base To Center Height | 2.438" |
| Base Width | 2.313" |
| Bearing Insert Coating | Uncoated |
| Bearing Type | Two Bolt Pillow Block |
| Bolt Size | 5/8" |
| Bore Dia. | 2 3/16" |
| Bore Shape | Straight |
| Bore Size - Inch | 2.188" |
| Bore Type | Round |
| Centerline To Front Face | 1.438" |
| Collar Outside Dia. | 3" |
| Duty Series | Intermediate |
| Duty Type | Light Duty |
| Dynamic Radial Load Capacity | 9752 lbf. |
| Expansion | No |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Browning Bearings |
| Finish, Coating | Gray Painted |
| Foot Height | 0.81" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Inner Race Length | 1.984" |
| Insert Material | Bearing Steel |
| Insert Material | 52100 Bearing Steel |
| Locking Device | Eccentric |
| Max. Bolt | 7 11/25" |
| Max. Bolt Center | 7.438" |
| Max. Speed | 2500 RPM |
| Min. Bolt Center | 6 11/25" |
| Misalignment Type | Static Only |
| Mounting Type | 2 Bolt Base |
| Outer Ring Land Profile | Standard |
| Overall Length | 8.813" |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact |
| Series | VPLE Series |
| Shaft Dia. | 2 3/16" |
| Static Radial Load Capacity | 6601 lbf. |
Shipping Info:
| Ship weight (kg) | 3.56 |
| Ship height (cm) | 12.46 |
| Ship length (cm) | 22.38 |
