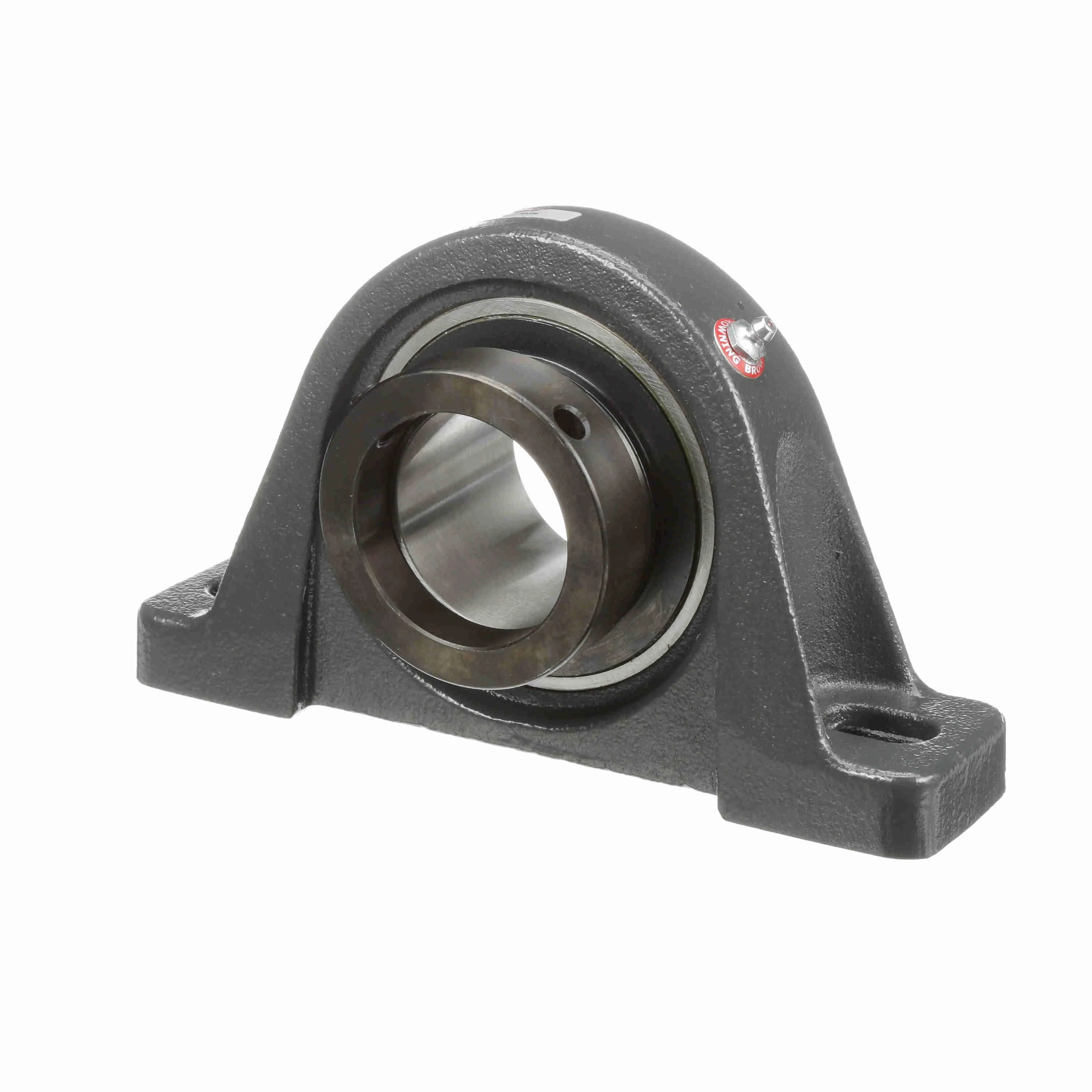

BROWNING VPE-239 767393 Pillow Block Bearing, 2 Bolt, 2-7/16 Inch Bore, 2-3/4 Inch Base to Center Height, Eccentric Collar Mount, Cast Iron
Get it by Monday, Aug 17
€273.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Application | Browning Standard |
| Base Width | 2 3/8" |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Type | Two Bolt Pillow Block |
| Bolt Size | 5/8" |
| Bore Dia. | 2 7/16" |
| Bore Shape | Straight |
| Bore Size - Inch | 2.438" |
| Bore Type | Round, Straight |
| Centerline To Front Face | 1.844" |
| Collar Outside Dia. | 3 3/8" |
| Duty Series | Normal |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 11789 lbs. |
| Expansion | No |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Browning Bearings |
| Foot Height | 7/8" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Inner Race Length | 3.063" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Locking Device | Eccentric |
| Max. Bolt | 7.94" |
| Max. Bolt Center | 7.938" |
| Max. Speed | 2500 RPM |
| Min. Bolt Center | 6 22/25" |
| Misalignment Angle | -1.5° to +1.5° |
| Misalignment Type | Static Only |
| Mounting Type | 2 Bolt Base |
| Outer Ring Land Profile | Standard |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact With Flinger |
| Static Radial Load Capacity | 8150 lbs. |
| Type Of Bearing | Ball Bearing |
Shipping Info:
| Ship weight (kg) | 5.09 |
| Ship height (cm) | 14.13 |
| Ship length (cm) | 24.13 |
