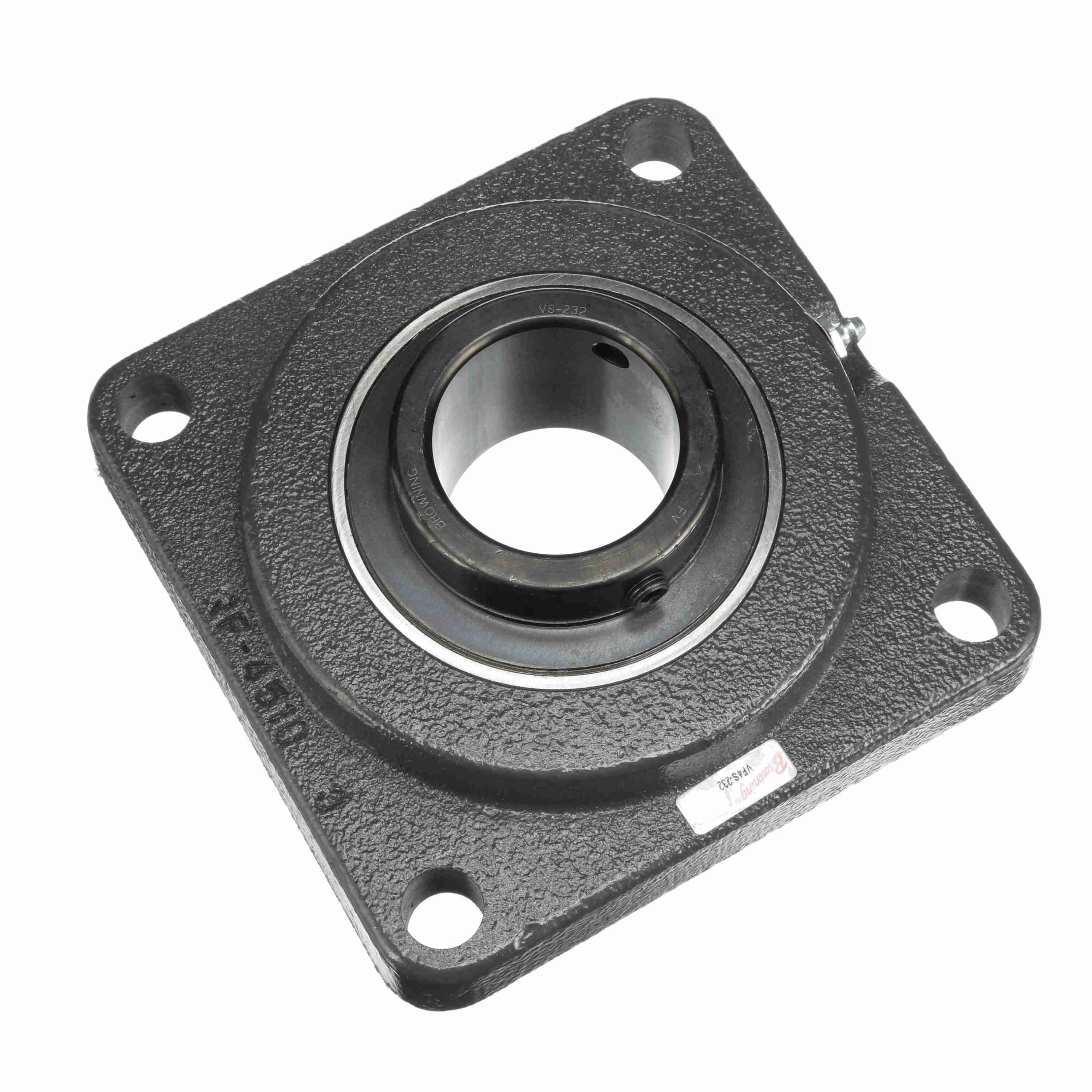

BROWNING VF4S-232 767423 Flange Block Bearing, 4 Bolt, 2 in Bore, 7.2 in Bolt Dia, 5-1/8 in Spacing, 1 Piece Solid, Set Screw, CI
Get it by Tuesday, Aug 18
€224.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Block Bearing |
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Type | Four Bolt Flange |
| Bolt Center To Center Length | 5 1/8" |
| Centerline To Front Face | 1.313" |
| Duty Series | Normal |
| Dynamic Radial Load Capacity | 9752 lbs. |
| Expansion | No |
| Family Series | Browning Bearings |
| Flange Type | 4 Bolt Flange |
| Foot Height | 0.81" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Width | 6.38" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Inside Ring Outside Dia. | 2.719" |
| Length Through Bore | 2 3/16" |
| Locking Device | Set Screw |
| Max. Speed | 2500 RPM |
| Misalignment Type | Static Only |
| Nsn Number | 3130-01-442-0897 |
| Operating Temp. Range | -20°F to +200°F |
| Outer Ring Land Profile | Standard |
| Overall Width | 6 3/8" |
| Pilot Configuration | No Pilot |
| Product Datasheet | browning-vfbs-212-cty.pdf |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact Seal With Flinger |
| Static Radial Load Capacity | 6601 lbs. |
| T Core | 4.25 |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 4.46 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 20.07 |
| Country of Origin | MX |
