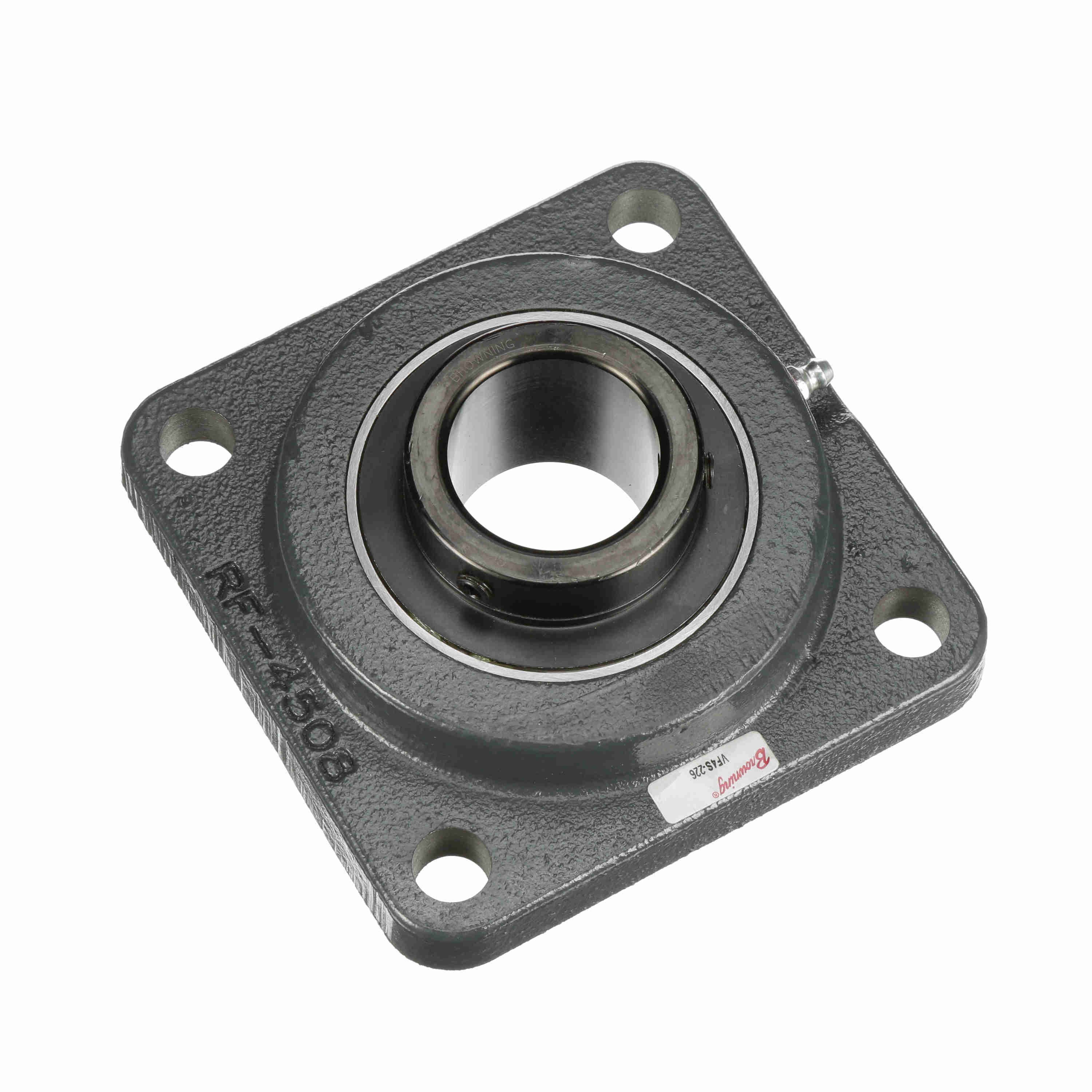

BROWNING VF4S-226 767408 Flange Block Bearing, 4 Bolt, 1-5/8 in Bore, 5.8 in Bolt Dia, 4-1/8 in Spacing, 1 Piece Solid, Set Screw, CI
Get it by Tuesday, Aug 18
€166.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Block Bearing |
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Type | Four Bolt Flange |
| Bolt Center To Center Length | 4 1/8" |
| Bore Dia. | 1 5/8" |
| Centerline To Front Face | 1.188" |
| Duty Series | Normal |
| Dynamic Radial Load Capacity | 7901 lbs. |
| Expansion | No |
| Family Series | Browning Bearings |
| Flange Type | 4 Bolt Flange |
| Foot Height | 0.63" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Width | 5.38" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Inside Dia. | 1.63" |
| Inside Ring Outside Dia. | 2.297" |
| Locking Device | Set Screw |
| Max. Speed | 3000 RPM |
| Misalignment Type | Static Only |
| Nsn Number | 3020-00-126-8538 |
| Operating Temp. Range | -20°F to +200°F |
| Outer Ring Land Profile | Standard |
| Overall Width | 5 3/8" |
| Pilot Configuration | No Pilot |
| Product Datasheet | browning-vfbs-212-cty.pdf |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact Seal With Flinger |
| Static Radial Load Capacity | 5139 lbs. |
| T Core | 3.88 |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 2.52 |
| Ship height (cm) | 4.83 |
| Ship length (cm) | 14.48 |
| Country of Origin | MX |
