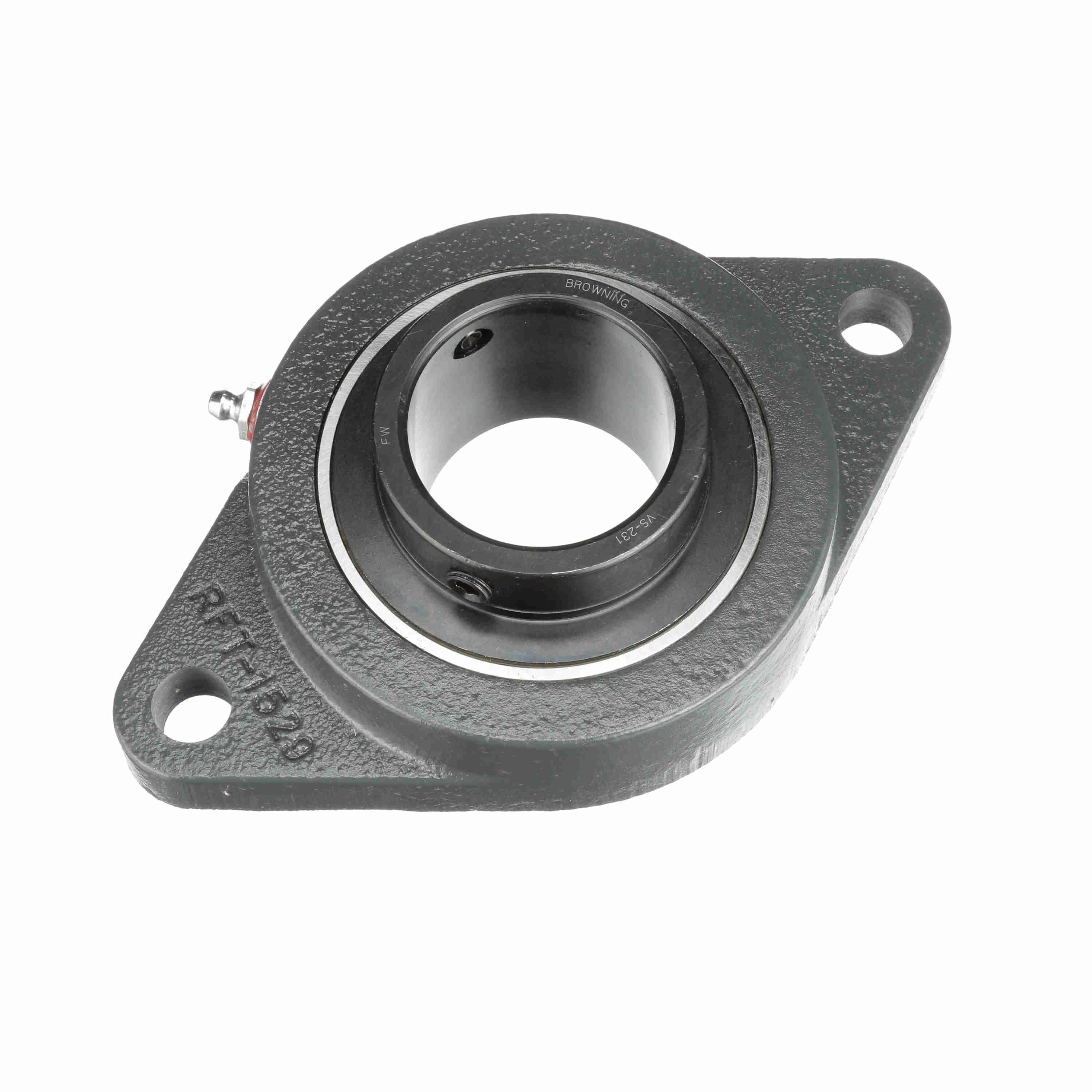

BROWNING VF2S-231 767900 Flange Block Bearing, 2 Bolt, 1-15/16 in Bore, 6.2 in Bolt Dia, 6-3/16 in Spacing, 1 Piece Solid, Set Screw, Cast Iron
Get it by Tuesday, Jul 14
€182.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Block Bearing |
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Type | Two Bolt Flange |
| Bore Dia. | 1 15/16" |
| Bore Size - Inch | 1.938" |
| Centerline To Front Face | 1.281" |
| Duty Series | Normal |
| Dynamic Radial Load Capacity | 7889 lbs. |
| Expansion | No |
| Family Series | Browning Bearings |
| Flange Type | 2 Bolt Flange |
| Foot Height | 0.63" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Width | 1 9/25" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Inside Dia. | 1.94" |
| Inside Ring Outside Dia. | 2.469" |
| Locking Device | Set Screw |
| Max. Speed | 3000 RPM |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +200°F |
| Outer Ring Land Profile | Standard |
| Overall Width | 4 9/16" |
| Pilot Configuration | No Pilot |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact Seal With Flinger |
| Static Radial Load Capacity | 5216 lbs. |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 2.16 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 19.81 |
| Ship width (cm) | 12.19 |
| Country of Origin | MX |
