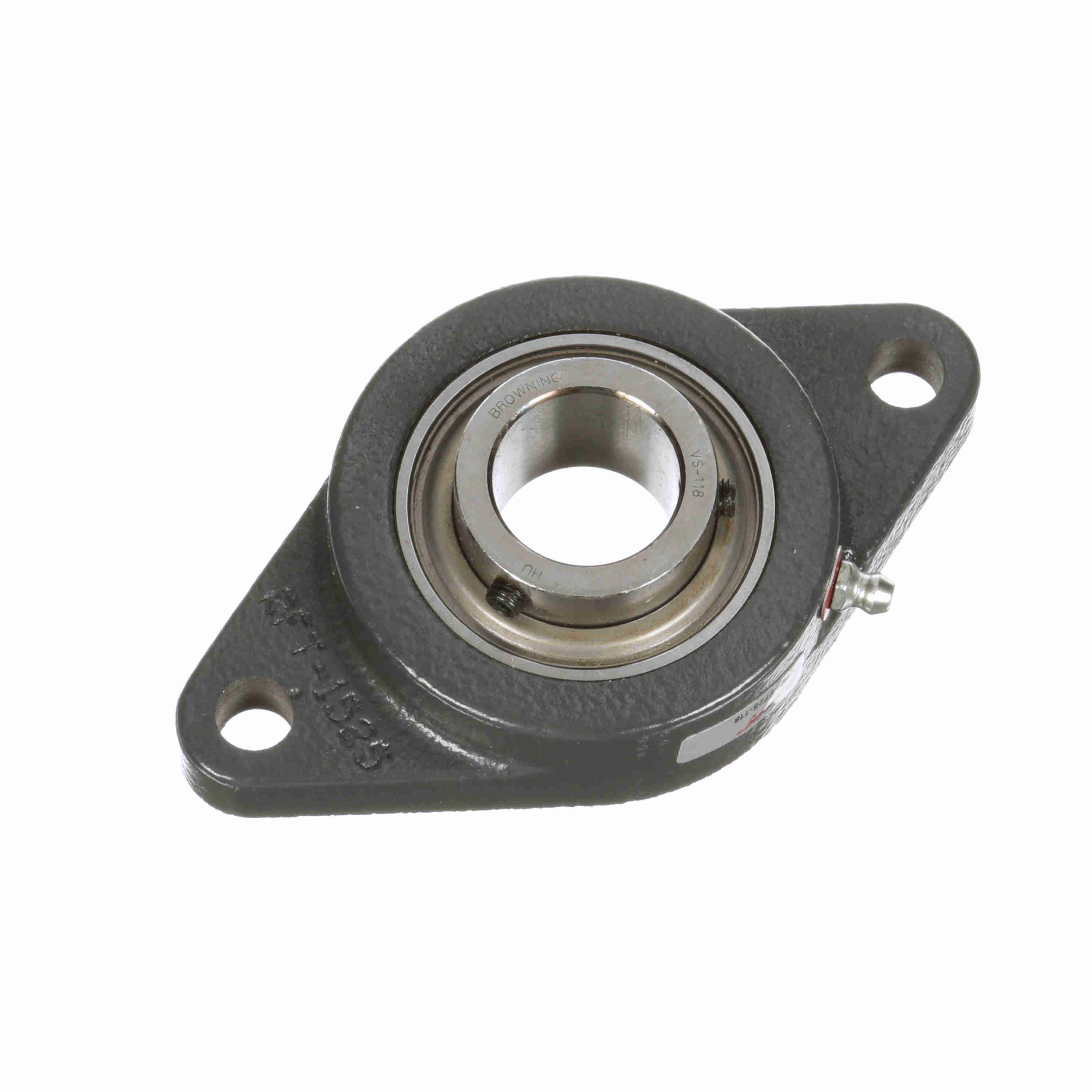

BROWNING VF2S-118 767587 Flange Block Bearing, 2 Bolt, 1-1/8 in Bore, 4.6 in Bolt Dia, 4-19/32 in Spacing, 1 Piece Solid, Set Screw, Cast Iron
Get it by Tuesday, Aug 18
€81.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Block Bearing |
| Bearing Design | Non Expansion |
| Bearing Type | Two Bolt Flange |
| Bore Dia. | 1 1/8" |
| Centerline To Front Face | 0.781" |
| Duty Series | Intermediate |
| Dynamic Radial Load Capacity | 4381 lbs. |
| Expansion | No |
| Family Series | Browning Bearings |
| Flange Type | 2 Bolt Flange |
| Foot Height | 0.531" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Width | 1.07812" |
| Insert Material | Bearing Steel |
| Insert Material | 52100 Bearing Steel |
| Inside Dia. | 1.13" |
| Inside Ring Outside Dia. | 1.594" |
| Locking Device | Set Screw |
| Max. Speed | 3000 RPM |
| Misalignment Type | Static Only |
| Nsn Number | 3120-00-985-4453 |
| Operating Temp. Range | -20°F to +200°F |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.4688" |
| Overall Width | 3.13" |
| Pilot Configuration | No Pilot |
| Product Datasheet | browning-vfbs-212-cty.pdf |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact |
| Static Radial Load Capacity | 2567 lbs. |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 4.32 |
| Ship length (cm) | 9.4 |
| Country of Origin | MX |
