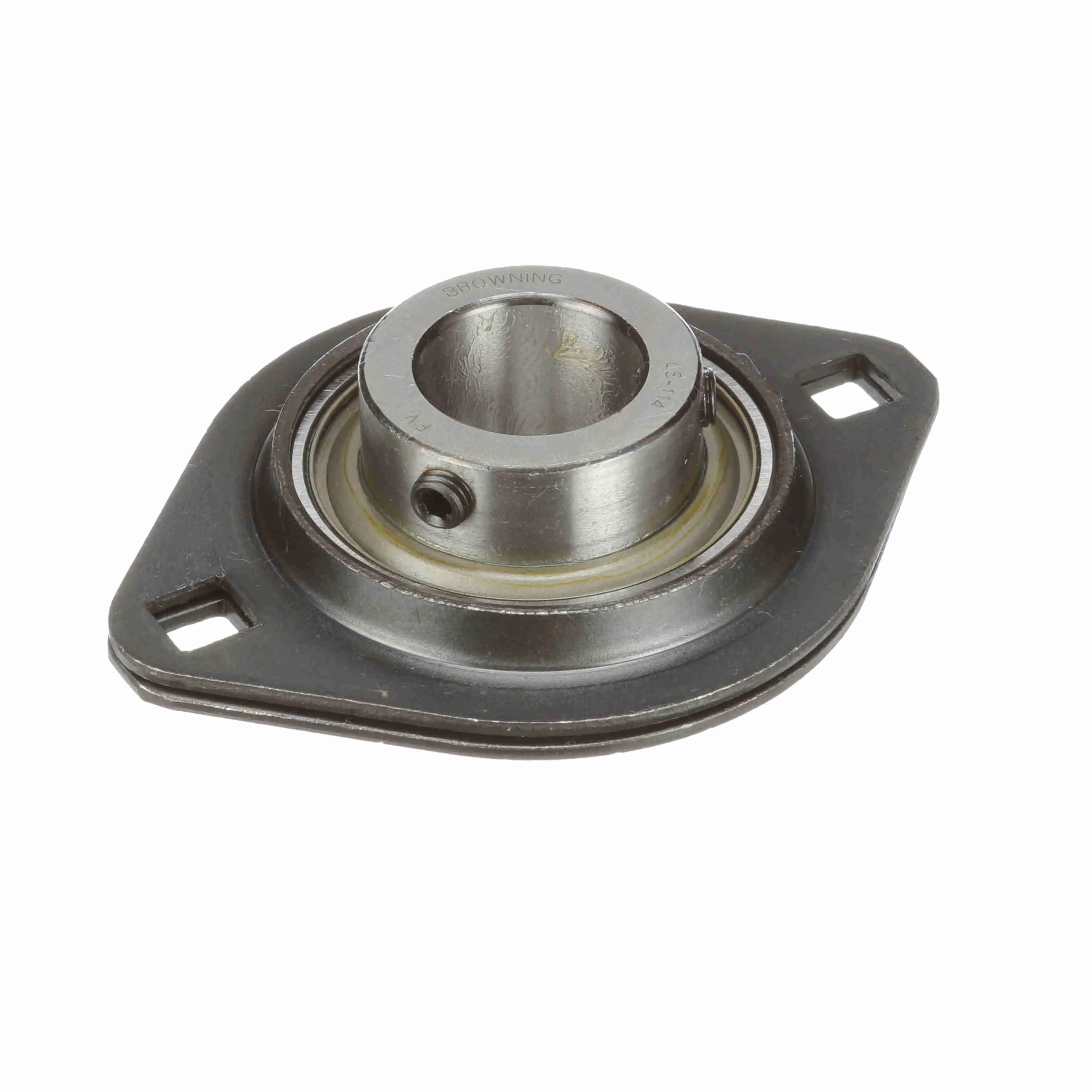

BROWNING SSF2S-114 766782 Ball Bearing Unit, 7/8 Inch Bore, 2-Bolt Flange Mount, Set Screw Locking
Get it by Monday, Aug 17
€52.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Design | Non Expansion |
| Bearing Material | Steel |
| Bearing Type | Two Bolt Flange |
| Bolt Size | 0.31" |
| Centerline To Front Face | 0.765" |
| Duty Series | Intermediate |
| Duty Type | Intermediate Duty |
| Dynamic Radial Load Capacity | 2801 lbs. |
| Expansion | No |
| Family Series | Browning Bearings |
| Finish | Uncoated |
| Finish, Coating | Silver |
| Flange Mounting Type | 2 Bolt |
| Flange Type | 2 Bolt Flange |
| Foot Height | 0.17" |
| Housing Construction | Two Piece |
| Housing Material | Stamped Steel |
| Housing Width | 1 13/16" |
| Insert Material | Bearing Steel |
| Insert Material | 52100 Bearing Steel |
| Inside Dia. | 22/25" |
| Inside Ring Outside Dia. | 1 3/8" |
| Length Through Bore | 1.11" |
| Load Capacity | 2801 Lbs. Dynamic, 1651 Lbs. Static |
| Locking Device | Set Screw |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +200°F |
| Outer Ring Land Profile | Standard |
| Overall Depth | 1.10938" |
| Overall Height | 2 13/16" |
| Overall Height To Inner Ring | 1.109" |
| Overall Length Dia. | 3 3/4" |
| Pilot Configuration | No Pilot |
| Retainer Type | Ball Riding Retainer |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Static Radial Load Capacity | 1651 lbs. |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 7.14 |
| Ship length (cm) | 9.53 |
| Ship width (cm) | 4.6 |
| Country of Origin | MX |
Product Variants
| Product | Model | Duty Type | Insert Material | Cage Material | Bearing Material | Seal Type | Housing Material | Retainer Type | Locking Device | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SLS-114 | Light Duty | - | Plastic | - | - | - | Ball Riding Retainer | Set Screw | €40.93 | |
 |
SSF3S-116 | Intermediate Duty | - | - | - | - | - | - | - | €60.67 | |
 |
SSF2S-116 | Intermediate Duty | - | - | - | - | - | - | - | €49.64 | |
 |
SLS-118 | Light Duty | - | Plastic | - | - | - | Ball Riding Retainer | Set Screw | €43.66 | |
 |
SLS-116 | Light Duty | - | Plastic | - | - | - | Ball Riding Retainer | Set Screw | €37.18 |
