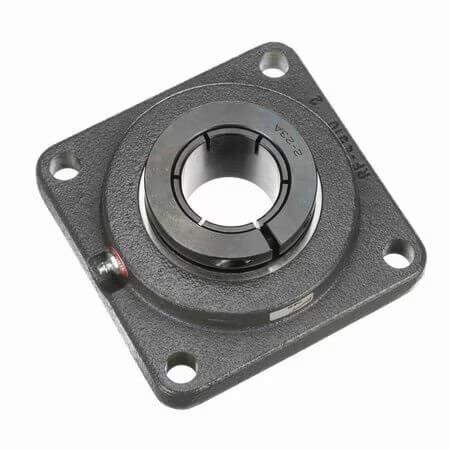

BROWNING 767144 SSF4S-131 Flanged Mounted Bearing, 4 Bolt
Get it by Tuesday, Dec 23
€365.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Circle Dia. | 5" |
| Bolt Spacing | 3 1/2" |
| Bore Dia. | 1 15/16" |
| Color | Gray |
| Dynamic Load Capacity | 7889 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 4 Bolt |
| Housing Configuration | 2 Piece Split |
| Housing Material | Stamped Steel |
| Housing Style | 4 Bolt Round Flange Block |
| Insert Part Number | LS-131 |
| Length Through Bore | 1.547" |
| Locking Device | Set Screw |
| Material | Steel |
| Max. Speed | 2000 RPM |
| Mounting Bolts | 1/2" |
| Mounting Method | Set Screw |
| No. Of Mounting Holes | 4 |
| Nominal Bolt Circle Dia | 4.9" |
| Number Of Rows | 1 |
| Other Features | Light Duty |
| Overall Depth | 1 35/64" |
| Overall Dia. | 6 1/8" |
| Overall Length | 6 1/8" |
| Pilot Configuration | No Pilot |
| Product Type | Non-Expansion Intermediate Duty Round/Straight Bore |
| Relubricatable | No |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | SSF4S 100 Series |
| Static Load Capacity | 5216 lbs. |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | 200°F |
| Weight | 1.625 Kg |
Shipping Info:
| Ship weight (kg) | 1.62 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Bore Dia. | Overall Length | Max. Speed | Bolt Circle Dia. | Housing Material | Finish | Color | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 767141 | 1 11/16" | 5 7/8" | 2000 RPM | 4 3/4" | Stamped Steel | Painted | Gray | Nitrile Rubber | €174.68 | |
| 767139 | 1 1/2" | 5 13/16" | 2500 RPM | 4 11/16" | Stamped Steel | Painted | Gray | Nitrile Rubber | €137.33 | |
| 767142 | 1 3/4" | 5 7/8" | 2000 RPM | 4 3/4" | - | Painted | Gray | Nitrile Rubber | €174.68 |
