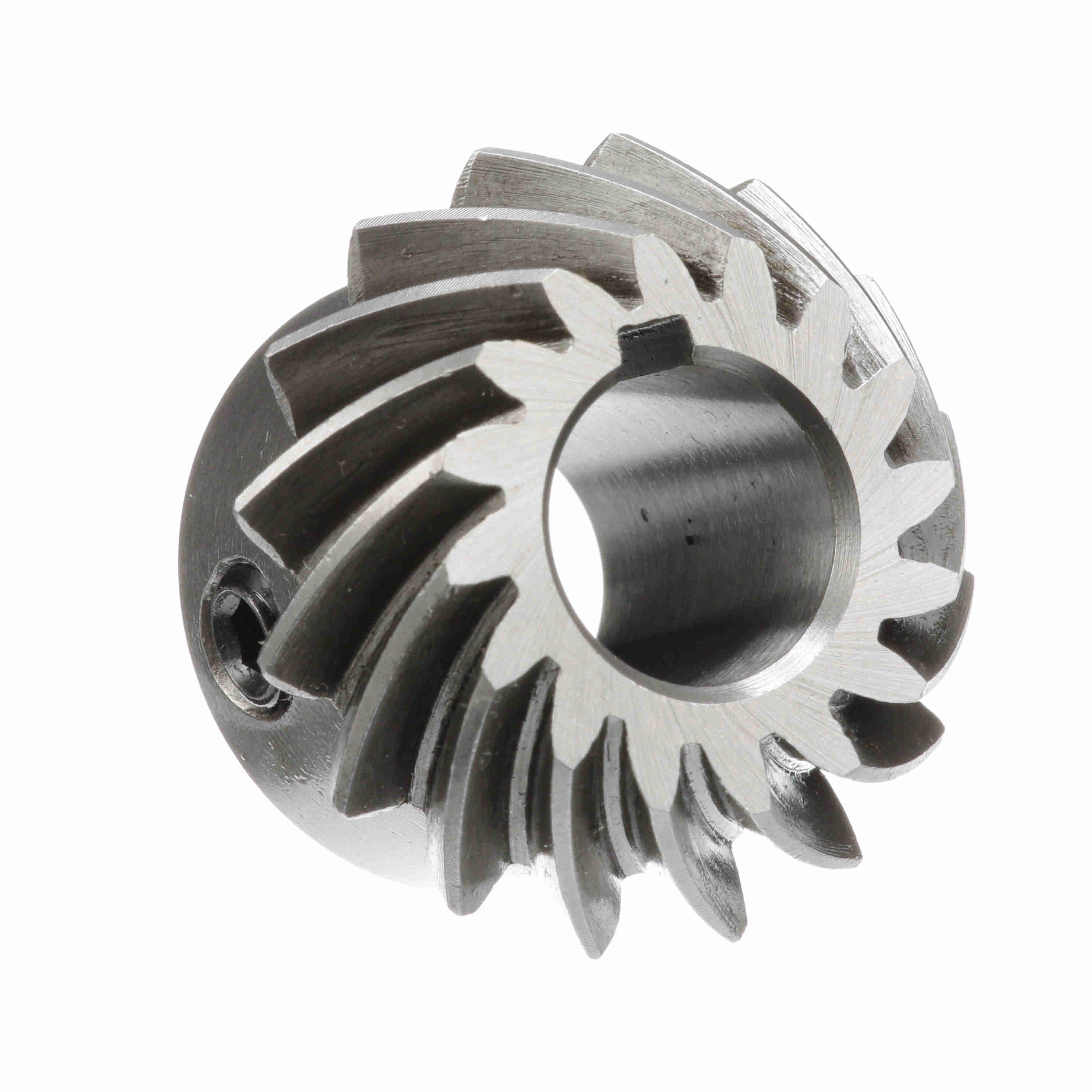

BROWNING 1228709 YSBS14F16LH-20X1/2 Bevel Gear, Bore Spiral, 20 Pressure Angle, 14 Pitch, Steel
Item: AK3DDEModel: 1228709Cross Ref: YSBS14F16LH-20X1/2
7 In Stock
Ships within 2 days via
€351.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bevel Gear |
| Bore Dia. | 1/2" |
| Bushing Size | No Bushing |
| Diametral Pitch | 14 DP |
| Direction Of Rotation | Left Hand |
| Face Width | 0.38" |
| Gear Ratio | 2:1 |
| Hardened Teeth | Yes |
| Hub Dia. | 1" |
| Hub Projection | 29/64" |
| Material | Steel |
| Minimum Plain Bore | No |
| Mounting Method | Finished Bore |
| Number Of Teeth | 16 |
| Other Features | Hardened Overall, Bevel Pinion With Keyway And Set Screw |
| Overall Length | 27/32" |
| Pitch Dia. | 1.143" |
| Pressure Angle | 20° |
| Spiral Angle | 35° |
| Style | Spiral Bevel Gear |
| System Of Measurement | Imperial |
| Tooth Profile | Spiral Tooth |
| Type | Finished Bore |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.13 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Hub Dia. | Hub Projection | Diametral Pitch | Pressure Angle | Face Width | Bore Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1228725 | 32 | 2.285" | 1 5/8" | 9/16" | 14 DP | 20° | 0.38" | - | €424.80 |
