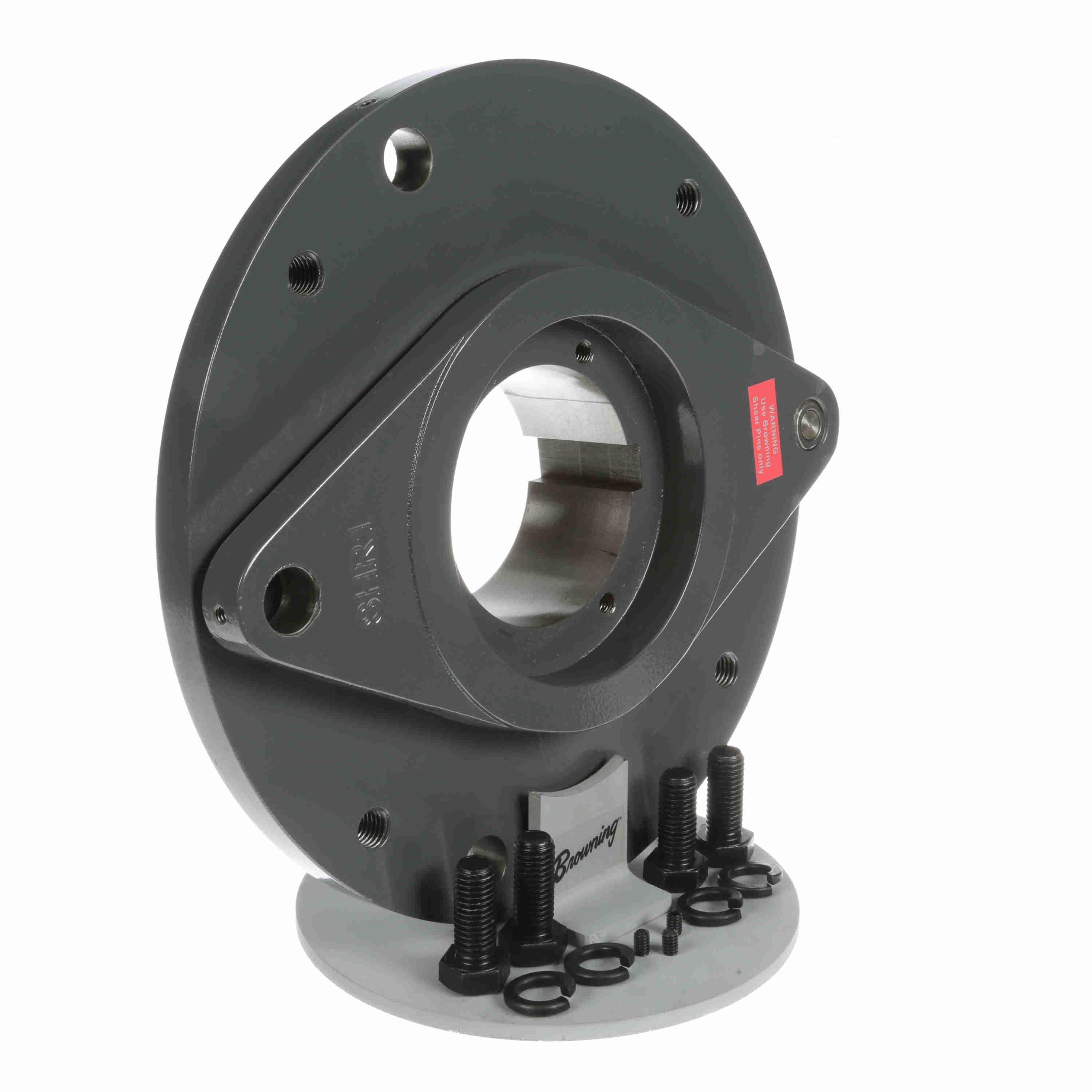

BROWNING 1188275 SHR1 HUB Shear Pin Hub for H Split Taper Bushing
Get it by Monday, Aug 17
€2,617.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Overload Safety Clutch Assembly |
| Bolt Size | 5/8" |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Size | R1 |
| Bushing Style | Split Taper |
| Flange Outside Dia. | 13" |
| Hub Type | Shear Pin Hub Assembly |
| Keyway | Yes |
| Length Through Bore | 3 11/32" |
| Material | Steel |
| Mounting Method | Bushed |
| No. Of Bolt Holes | 4 |
| No. Of Bolts | 3 |
| Outside Dia. | 13" |
| Pilot Dia. | 7 1/2" |
| Pilot Length | 3/4" |
| System Of Measurement | Imperial |
| Torque | 9310 lbs.-in. to 50720 lbs.-in. |
| Type | Type 1 |
Shipping Info:
| Ship weight (kg) | 20.61 |
| Ship height (cm) | 33.02 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 33.02 |
| Country of Origin | US |
Product Variants
| Product | Model | Torque | Type | Bore Dia. | Length Through Bore | Flange Outside Dia. | No. Of Bolt Holes | Bolt Size | Pilot Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

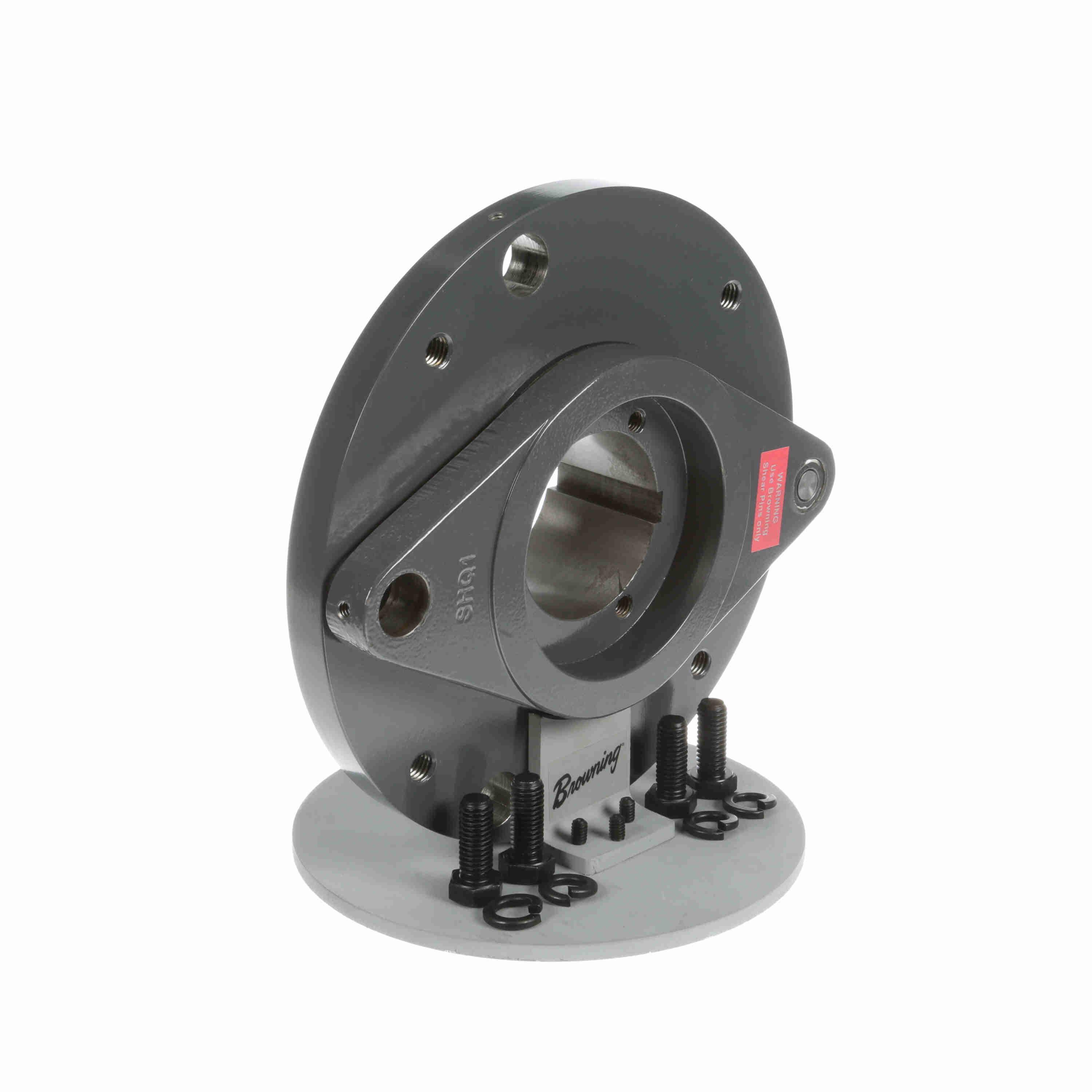

1188267 | 38890 lbs.-in. | Type 1 | 3/4" to 2 11/16" | 3" | 10" | 3 | 8 5/8" | - | €2,392.28 | |
 |

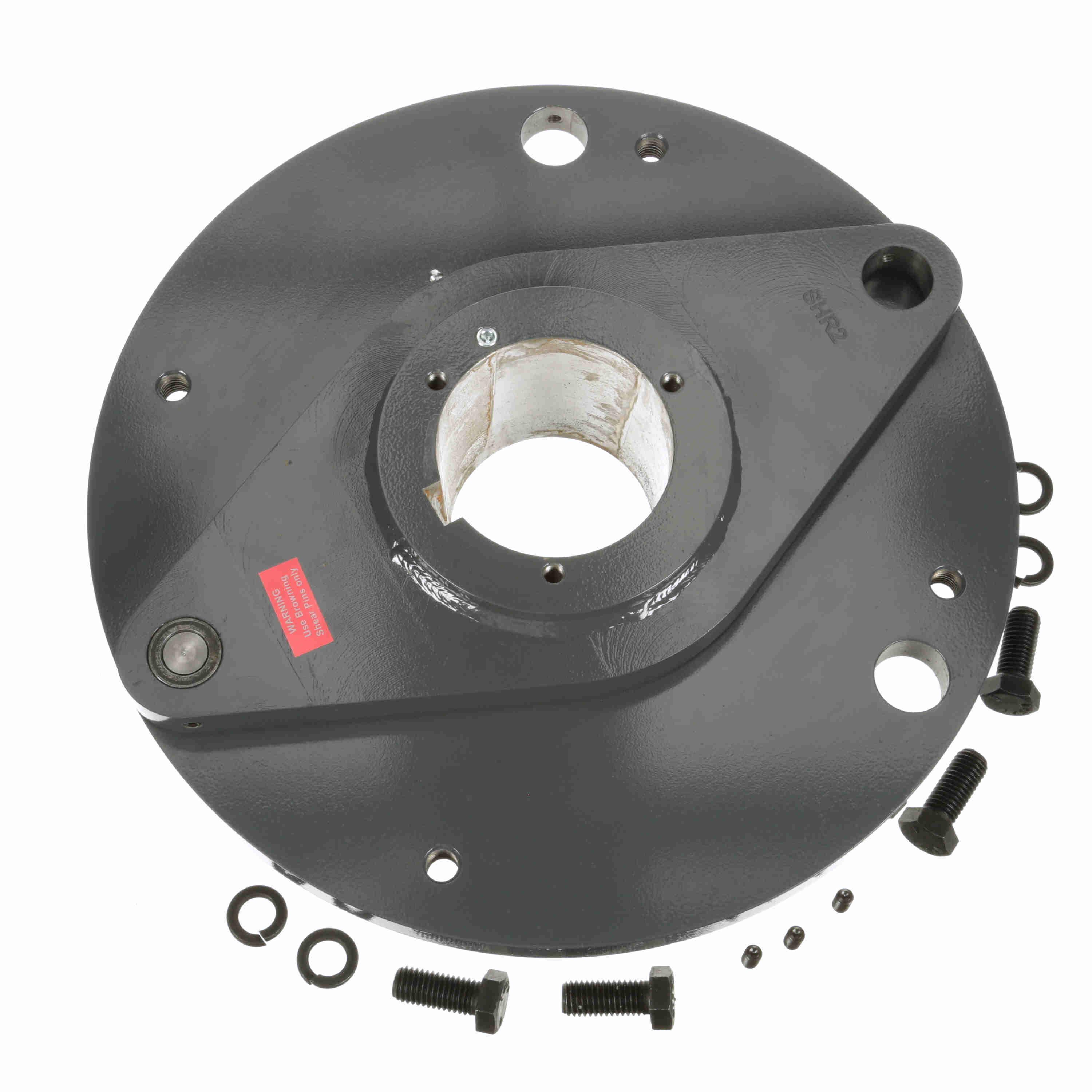

1188283 | 26080 lbs.-in. to 155900 lbs.-in. | Type 2 | 1 3/8" to 3 5/8" | 5 5/32" | 16 1/4" | 4 | 5/8" | 7 1/2" | €5,711.15 | |
 |

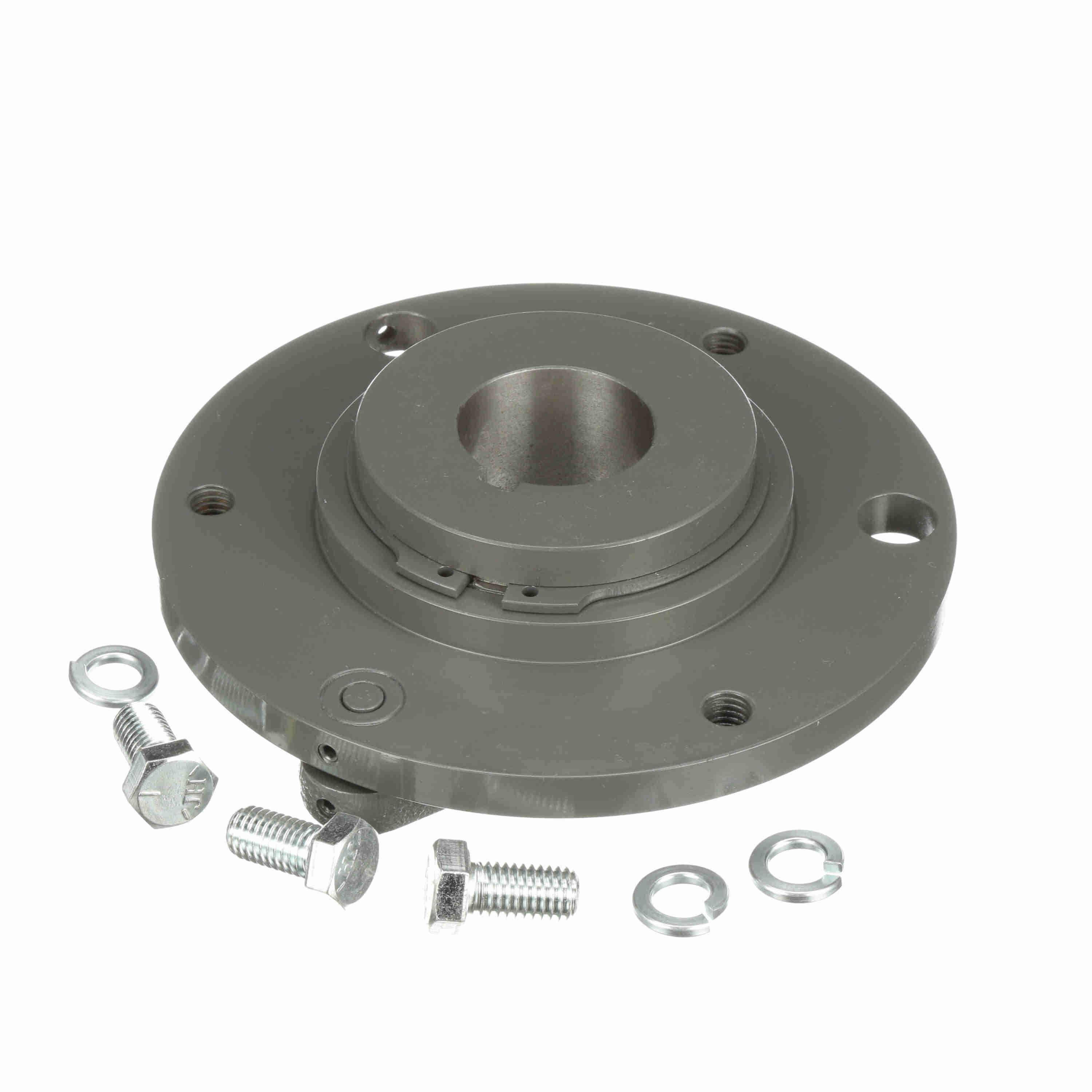

1188259 | 14950 lbs.-in. | Type 1 | 1/2" to 1 3/4" | 2 1/8" | 7 5/8" | 3 | 6 1/2" | 4 1/2" | €1,733.17 | |
|
1188291 | 44540 lbs.-in. to 178170 lbs.-in. | Type 2 | 1 7/8" to 4 3/16" | 7 1/8" | 18 3/4" | 4 | 3/4" | - | €9,104.11 | |
 |

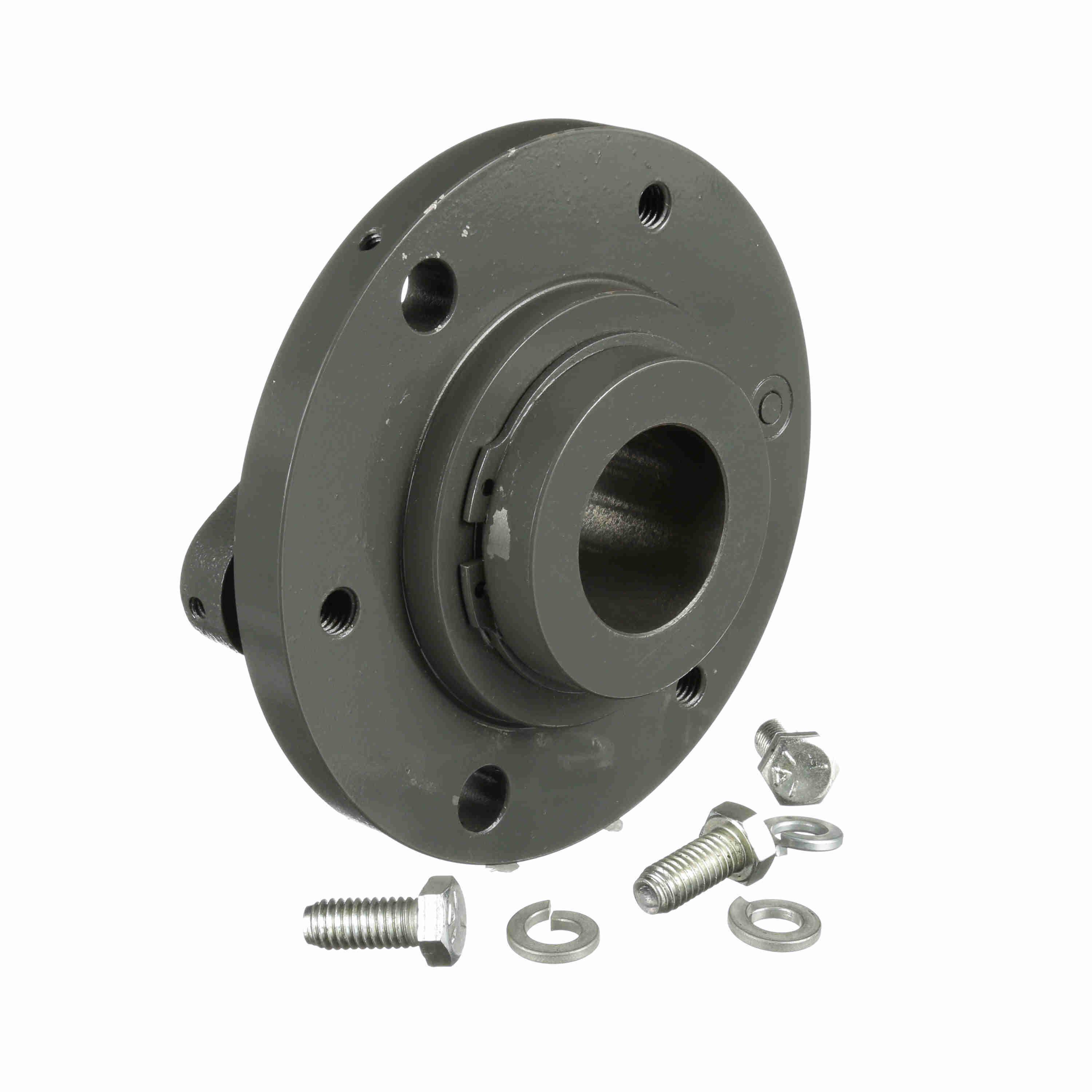

1188242 | 930 lbs.-in. to 3730 lbs.-in. | Type 1 | 3/8" to 1 1/2" | 2 1/4" | 5 1/2" | 3 | 3/8" | - | €1,355.02 | |
|
1188309 | 59670 lbs.-in. to 258870 lbs.-in. | Type 2 | 2 7/16" to 5" | 10 19/32" | 21" | 4 | 7/8" | 9 1/2" | €16,872.90 |
