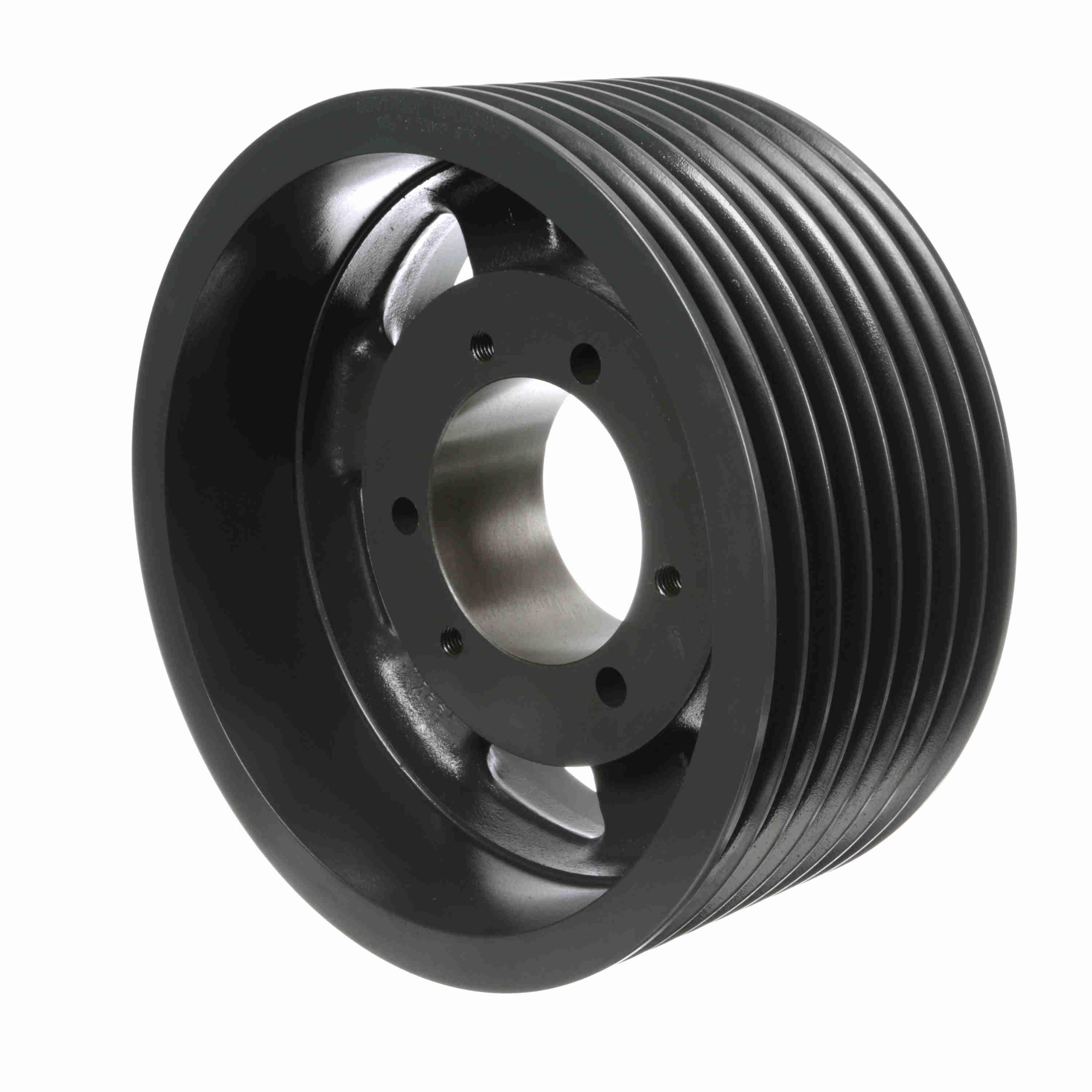

BROWNING 1066539 85V1320F V-Belt Sheave, Multiple, Bushed Bore, 8 Groove, Cast Iron, 13.2 in OD, 1 to 4 in Bore Dia, 13.1 in Pitch Dia, F Bushing Type, Type A Arm
Get it by Monday, Aug 17
€2,117.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 1" to 4" |
| Bore Type | QD |
| Bushing Type | F |
| Face Width | 5 13/16" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| No. Of Grooves | 8 |
| Outside Dia. | 13 1/5" |
| Pitch Dia. | 13.1" |
| Suitable For Use With | Gripbelt 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type A Arm |
Shipping Info:
| Ship weight (kg) | 27.9 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 34.29 |
| Ship width (cm) | 34.29 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Bushing Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3063542 | 31 2/5" | 2" to 5 1/2" | Type B Arm | 31 2/5" | 31 2/5" | M | Cast Iron | 5 13/16" | €7,208.33 | |
 |
1066554 | 14.9" | 1" to 4" | Type A Arm | - | - | F | Cast Iron | 5 13/16" | €3,108.14 | |
 |

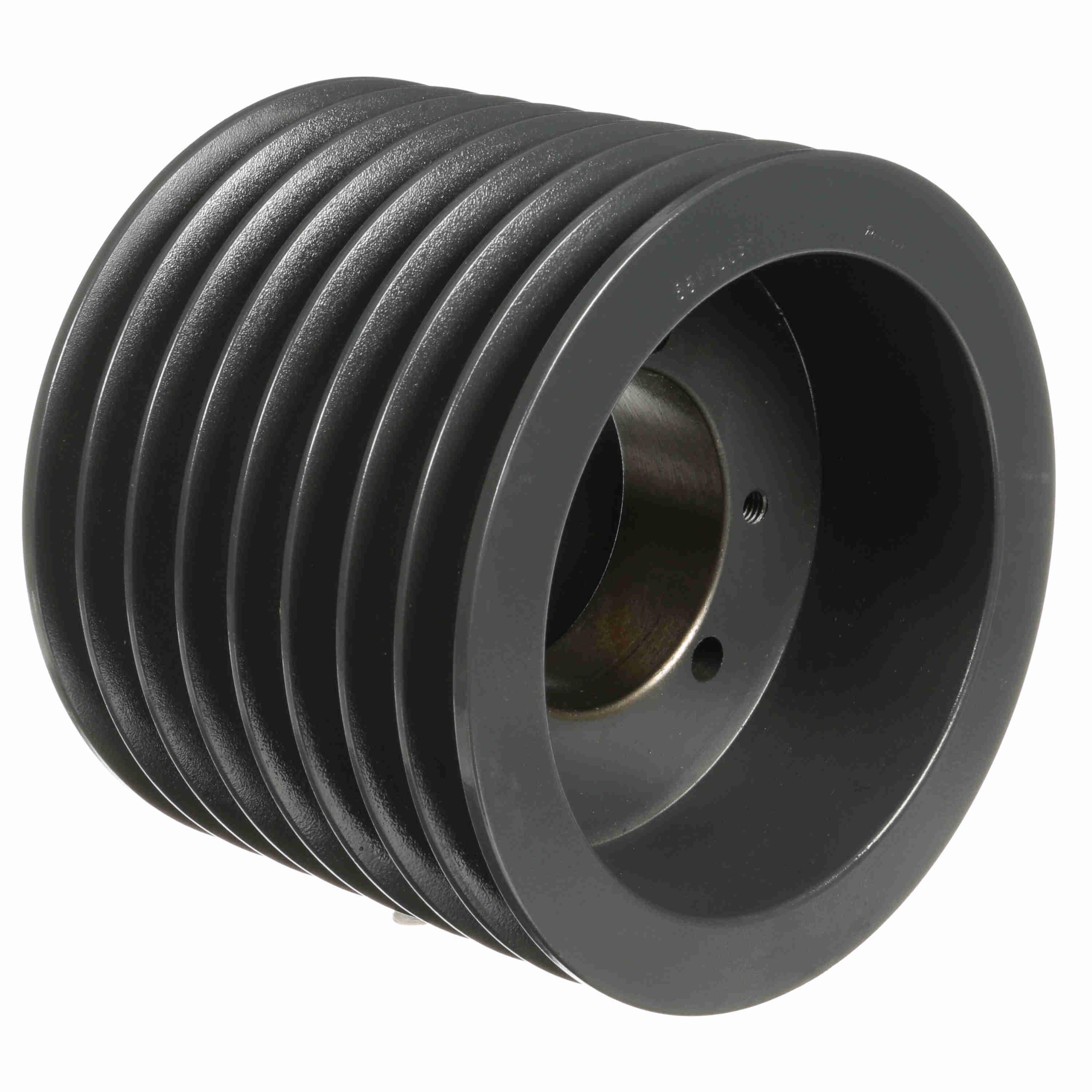

1066497 | 9.65" | 1" to 4" | Type A Solid | - | - | F | Cast Iron | 5 13/16" | €1,578.76 | |
 |
1066430 | 7" | 1/2" to 2 15/16" | Type A Solid | - | - | SF | Cast Iron | 5 13/16" | €972.73 | |
 |

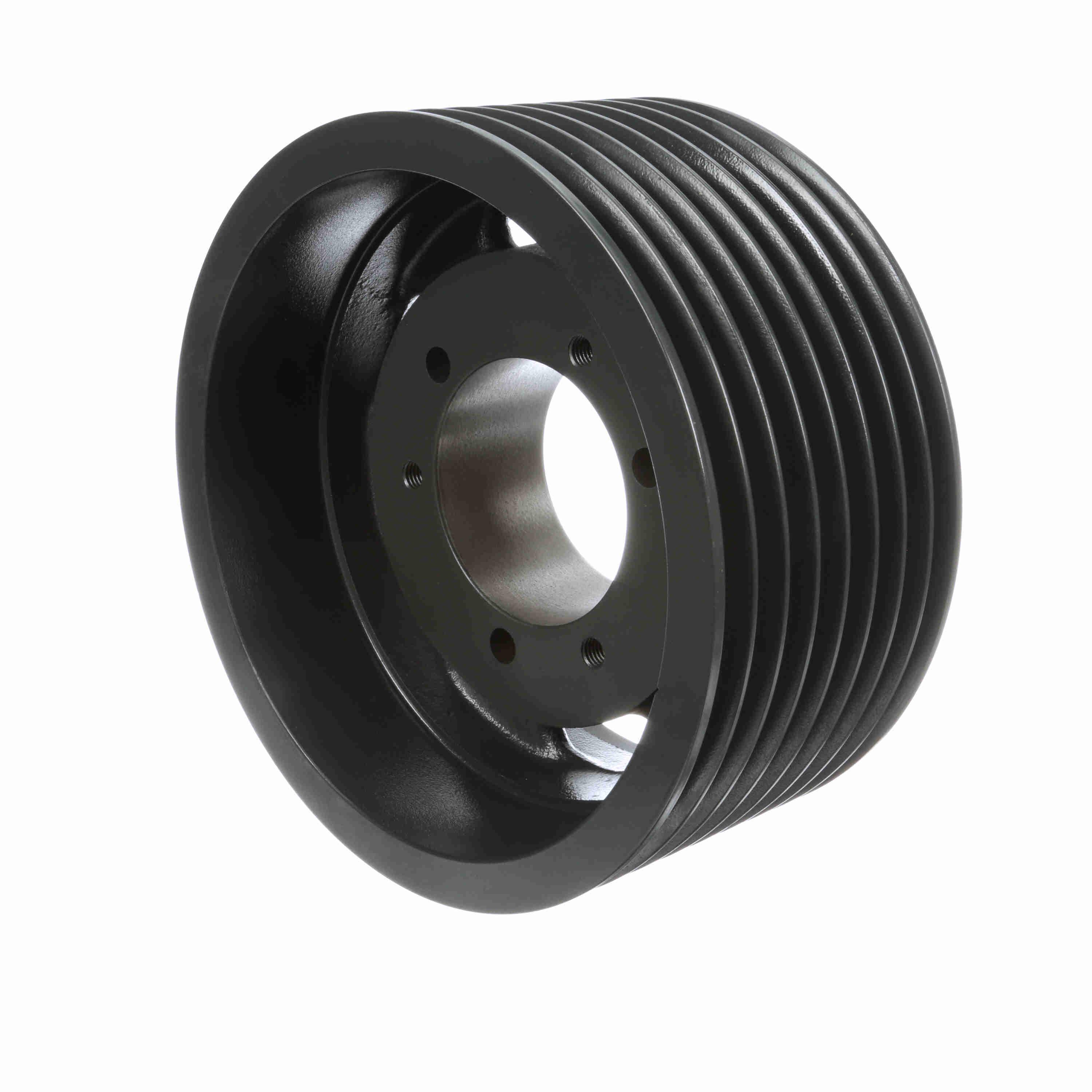

1066521 | 12 2/5" | 1" to 4" | Type A Arm | 12 2/5" | 12 2/5" | F | Cast Iron | 5 13/16" | €1,979.59 | |
 |

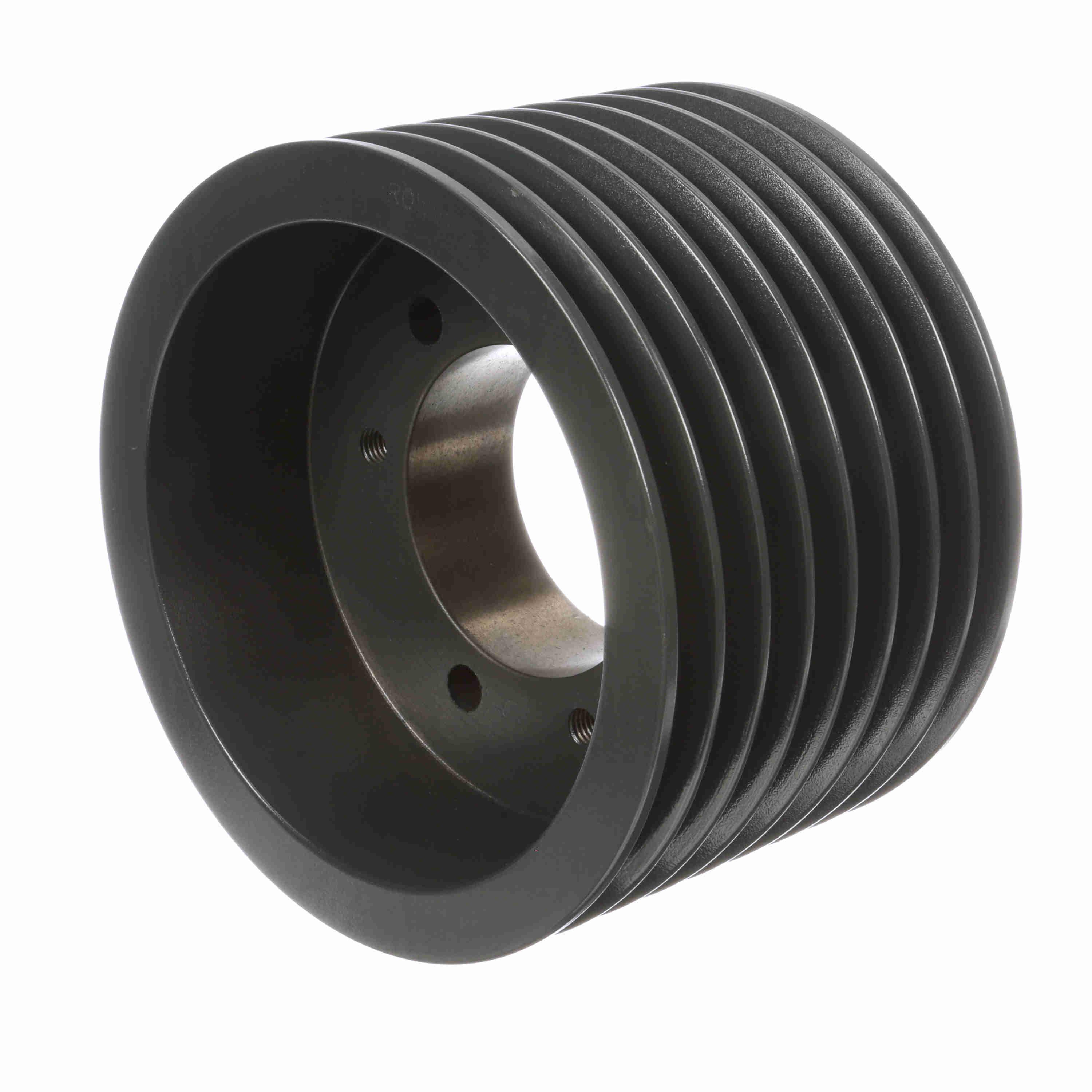

1066471 | 8.9" | 22/25" to 3 1/2" | Type A Solid | - | - | E | Cast Iron | 5 13/16" | €1,441.21 | |
 |
3063286 | 10 4/5" | 1" to 4" | Type A Solid | 10 4/5" | 10 4/5" | F | Cast Iron | 5 13/16" | €1,775.51 |
