BROWNING 1065382 83V650SK V-Belt Sheave, Multiple, Bushed Bore, 8 Groove, Cast Iron, 6-1/2 in OD, 1/2 to 2-5/8 in Bore Dia, 6.45 in Pitch Dia, SK Bushing Type, Type A Solid
Get it by Monday, Aug 17
€531.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 3V Series |
| Bore Dia. | 1/2" to 2 5/8" |
| Bore Type | QD |
| Bushing Type | SK |
| Face Width | 3 17/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| No. Of Grooves | 8 |
| Outside Dia. | 6 1/2" |
| Pitch Dia. | 6.45" |
| Suitable For Use With | Gripbelt 3V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type A Solid |
Shipping Info:
| Ship weight (kg) | 5.67 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 16.84 |
| Ship width (cm) | 16.84 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Bushing Type | Material | Face Width | Belt Series | Max. Pitch Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1065416 | 10.55" | 1/2" to 2 15/16" | Type A Web | SF | Cast Iron | 3 17/32" | 3V Series | - | €1,036.04 | |
 |

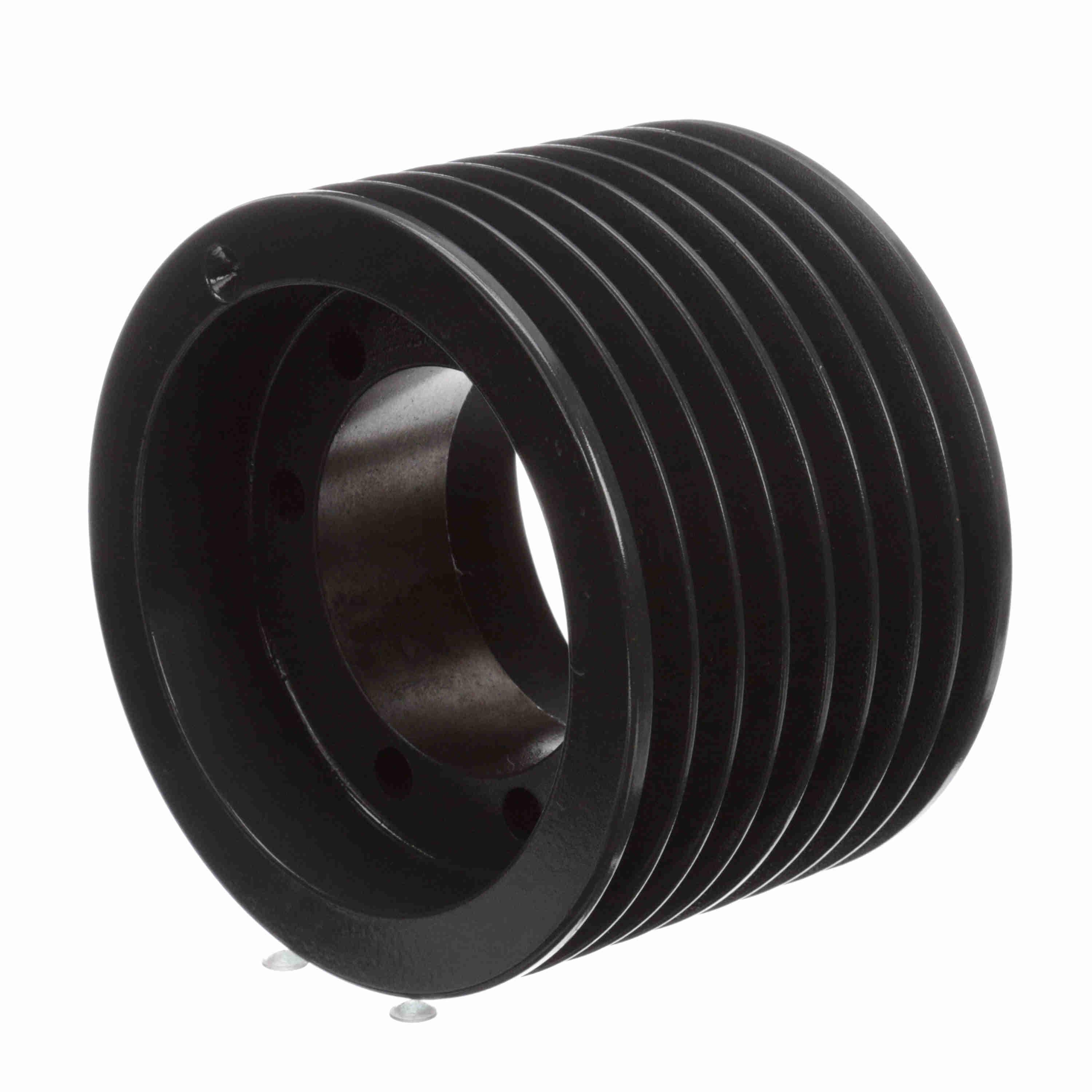

1065358 | 5 1/4" | 1/2" to 2 5/8" | Type A Solid | SK | Cast Iron | 3 17/32" | 3V Series | 5 1/4" | €382.56 | |
|
1065333 | 4.7" | 1/2" to 2 5/8" | Type D Solid | SK | Cast Iron | 3 17/32" | 3V Series | - | €672.95 | |
 |
1065390 | 6.85" | 1/2" to 2 5/8" | Type A Solid | SK | Cast Iron | 3 17/32" | 3V Series | - | €349.06 | |
 |

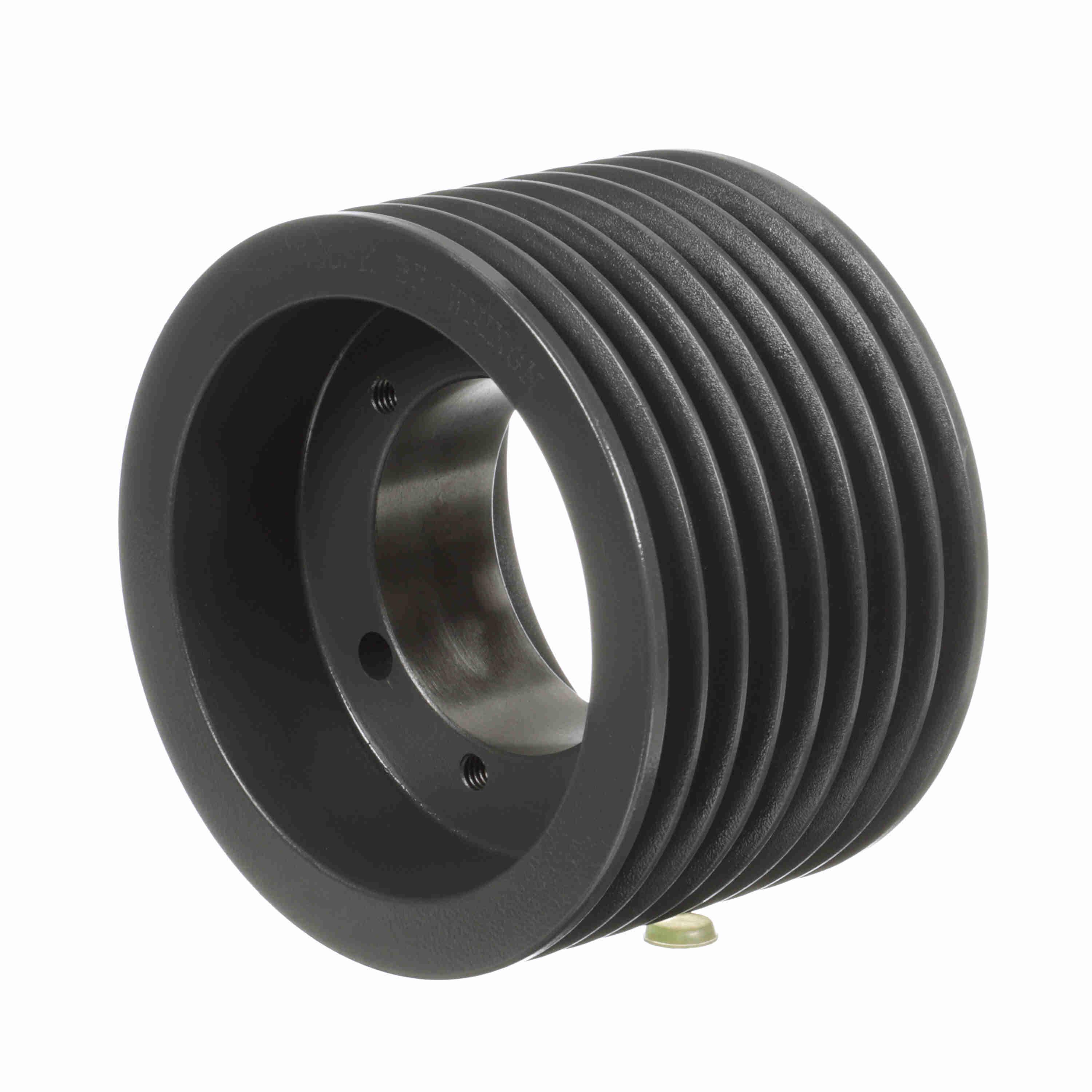

1065366 | 5.55" | 1/2" to 2 5/8" | Type A Solid | SK | Cast Iron | 3 17/32" | 3V Series | - | €668.48 | |
 |
1065457 | 33.45" | 1" to 4" | Type D Arm | F | Cast Iron | 3 17/32" | 3V Series | - | €4,492.38 |
