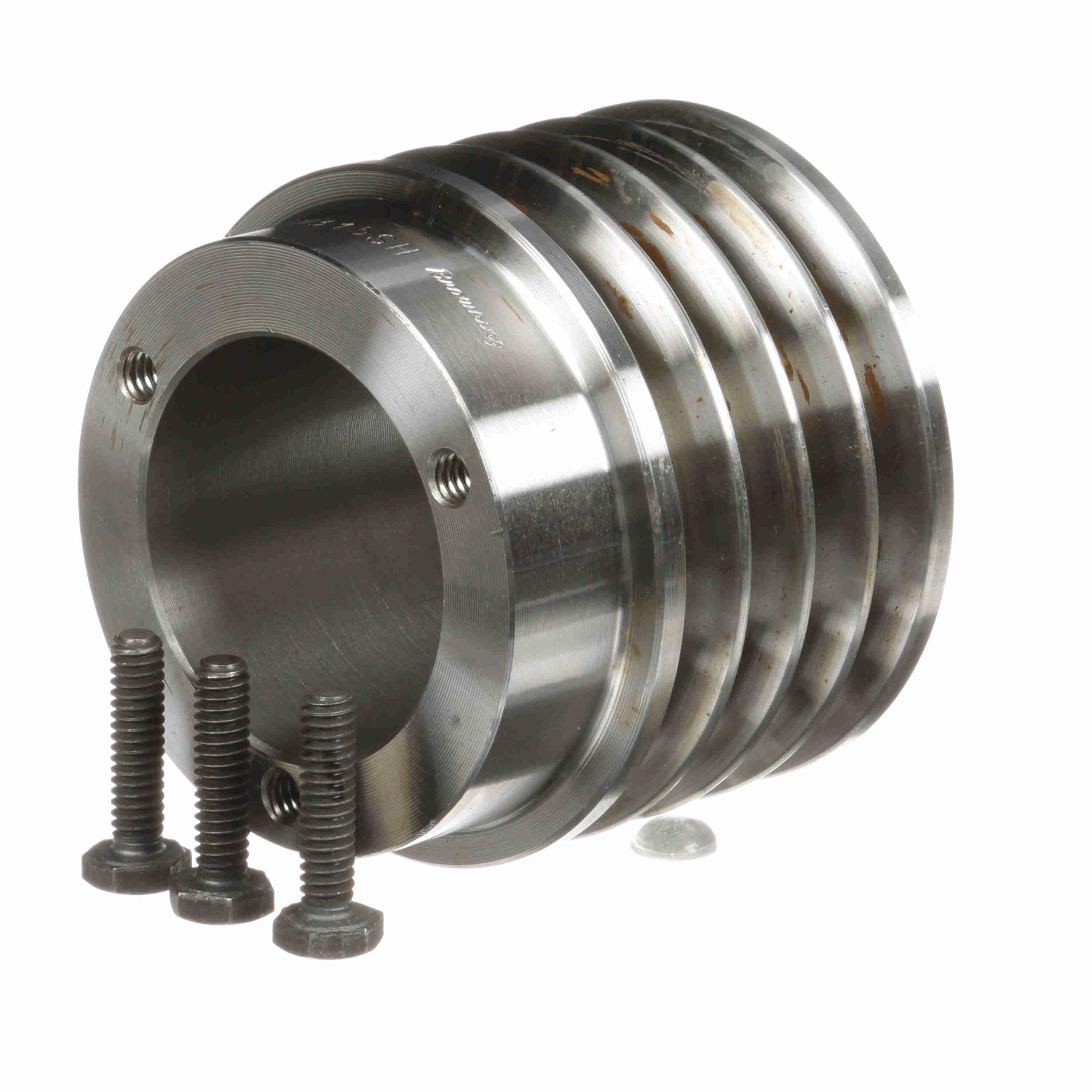

BROWNING 1064898 43V315SH V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron
Item: BA4DPQModel: 1064898Cross Ref: 43V315SH
7 In Stock
Ships within 2 days via
€273.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Bore Dia. | 1/2" to 1 5/8" |
| Bore Type | QD |
| Bushing Type | SH |
| Face Width | 1 29/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 3.15" |
| Pitch Dia. | 3.1" |
| Suitable For Use With | Gripbelt 3V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type E Solid |
Shipping Info:
| Ship weight (kg) | 1.24 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 11.18 |
| Ship width (cm) | 11.43 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Type | Overall Length | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1065002 | 6.9" | 1/2" to 2 5/8" | Type D Solid | - | QD | Cast Iron | 1 29/32" | €273.85 | |
 |
1065028 | 10 3/5" | 1/2" to 2 5/8" | - | 2 3/16" | QD | Cast Iron | 1 29/32" | €578.92 | |
 |
1065051 | 25" | 1/2" to 2 15/16" | Type D Arm | - | QD | Cast Iron | 1 29/32" | €903.39 | |
 |
1064989 | 6" | 1/2" to 2 5/8" | Type D Solid | - | QD | Cast Iron | 1 29/32" | €248.37 | |
 |
1064955 | 5" | 1/2" to 2" | - | 1 29/32" | QD | Cast Iron | 1 29/32" | €316.60 | |
 |
1065044 | 19" | 1/2" to 2 15/16" | Type D Arm | - | QD | Cast Iron | 1 29/32" | €1,172.00 | |
 |
1064930 | 4 1/2" | 1/2" to 2" | - | 1 29/32" | QD | Cast Iron | 1 29/32" | €184.47 |
