Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 3V Series |
| Bore Dia. | 1/2" to 1 5/8" |
| Bore Type | QD |
| Bushing Type | SH |
| Face Width | 1 1/2" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 4 3/25" |
| Pitch Dia. | 4.07" |
| Suitable For Use With | Gripbelt 3V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type A Solid |
Shipping Info:
| Ship weight (kg) | 1.18 |
| Ship height (cm) | 10.46 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 10.46 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Type | Overall Length | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
![]() |
1064666 | 2 4/5" | 1/2" to 1 1/4" | Type D Solid | - | QD | Cast Iron | 1 1/2" | €206.10 | |
![]() |
3050150 | 2 1/2" | 1/2" to 1 1/4" | Type E Solid | - | QD | Cast Iron | 1 1/2" | €225.87 | |
![]() |
1064658 | 2.65" | 1/2" to 1 1/4" | - | 1.92375" | QD | Cast Iron | 1 1/2" | €230.90 | |
![]() |
1064674 | 3" | 1/2" to 1 5/8" | Type E Solid | - | QD | Cast Iron | 1 1/2" | €125.90 | |
![]() |
1064682 | 3.15" | 1/2" to 1 5/8" | Type E Solid | - | QD | Cast Iron | 1 1/2" | €129.81 | |
![]() |
1064690 | 3.35" | 1/2" to 1 5/8" | Type D Solid | - | QD | Cast Iron | 1 1/2" | €133.68 | |
![]() |
1064708 | 3.65" | 1/2" to 1 5/8" | Type D Solid | - | QD | Cast Iron | 1 1/2" | €137.59 |
Explore Products
- TB WOODS 1201C Classical V-Belt Sheave, Cast Iron, C Type Belt, 12 inch Datum Dia.
- ADVANCE TABCO 19-18-40 Multiwash Hand Sink, Wall Mounted, 40 X 19-1/2 X 30-3/4 Inch Size
- FOREVERBOLT FBBHSCAPS83234P100 Socket Head Cap Screw, 8-32 Thread Size, Button, 3/4 In Lg., 0.109 In Head Ht., NL-19
- OSG 403-3543 Square End Mill, Center Cutting, 3 Flutes, 9 mm Milling Dia, 22 mm Length Of Cut
- VERMONT GAGE 361158010 Threaded Ring Gage, 7/8 Inch-14 Thread Size, Go, 2A Thread Class, UNF
- GENERAL ELECTRIC LED13BDT8/U/840 LED Type B U Lamp, T8, 1 5/8 Inch Size Bulb Bend Radius, Medium Bi-Pin
- AIRMASTER FAN 94599 Intake Louver, Fixed, Size 78 x 72 Inch
Explore More
- KEEPER
- KEYSHAFT
- SAMMYS
- VOLKEL
- VIBRA TITE
- Pressure and Vacuum Gauges
- Cylinder Molds
- Welding Nozzles
- Water Heater Vents
- Pipe Tongs
- MCR SAFETY Neomax Neoprene Coated Green Work Gloves
- TEMPCO TRH3 Series Tubular Radiant Heaters
- SUGATSUNE Wire Pull Handles
- GEORG FISCHER Elbow, 45 Degrees, PVC
- OSG High Speed Steel-E Spiral Flute Tap, Bright Finish
- SUPER-STRUT Pipe Clamp
- BROWNING Gearbelt Pulley Idlers
- APPROVED VENDOR Computer Cabinet Workstations
Contact us
Contact your account manager right away to get personal advice.
We're available Monday through Friday, from 07:30 until 17:00.

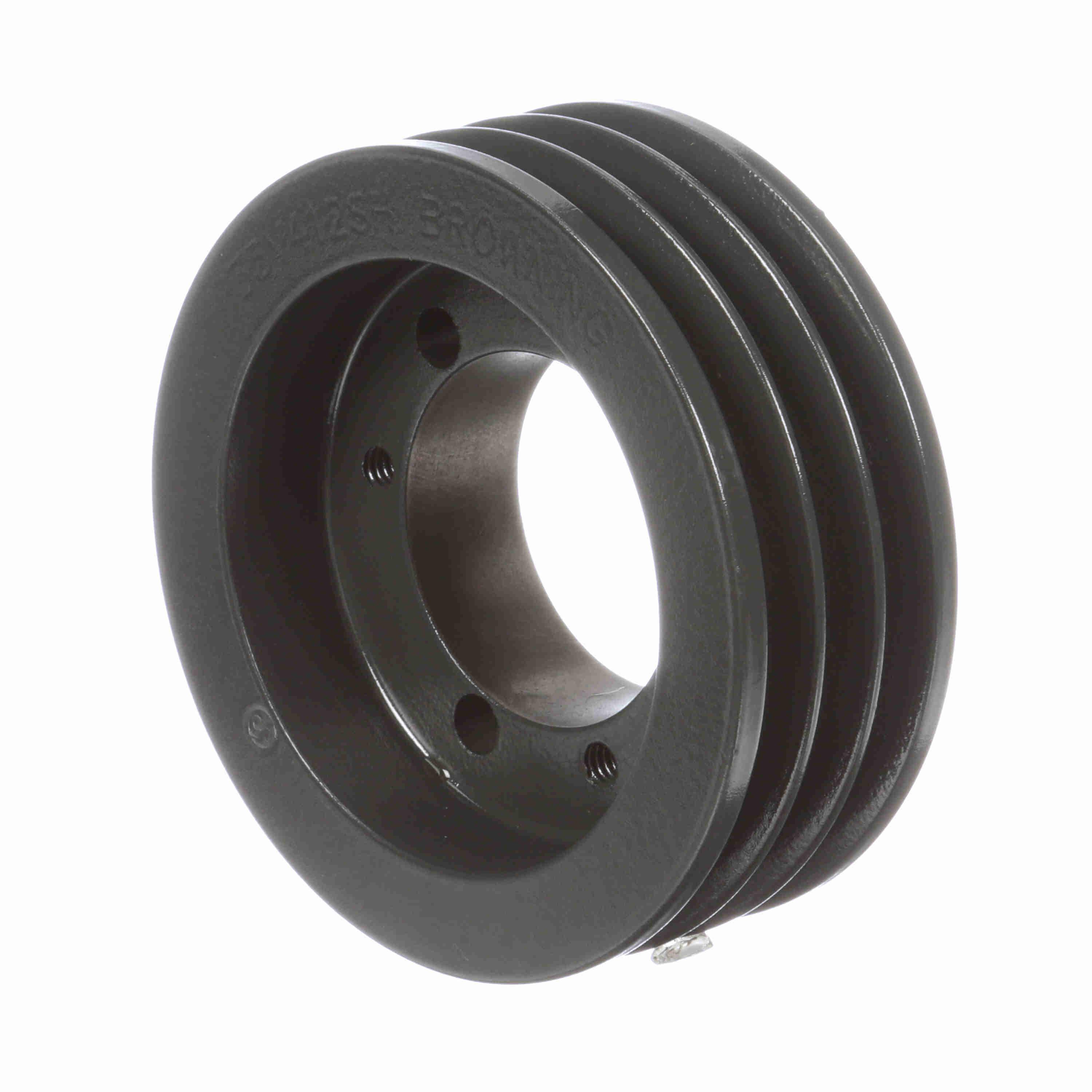

BROWNING 1064716 33V412SH V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron
