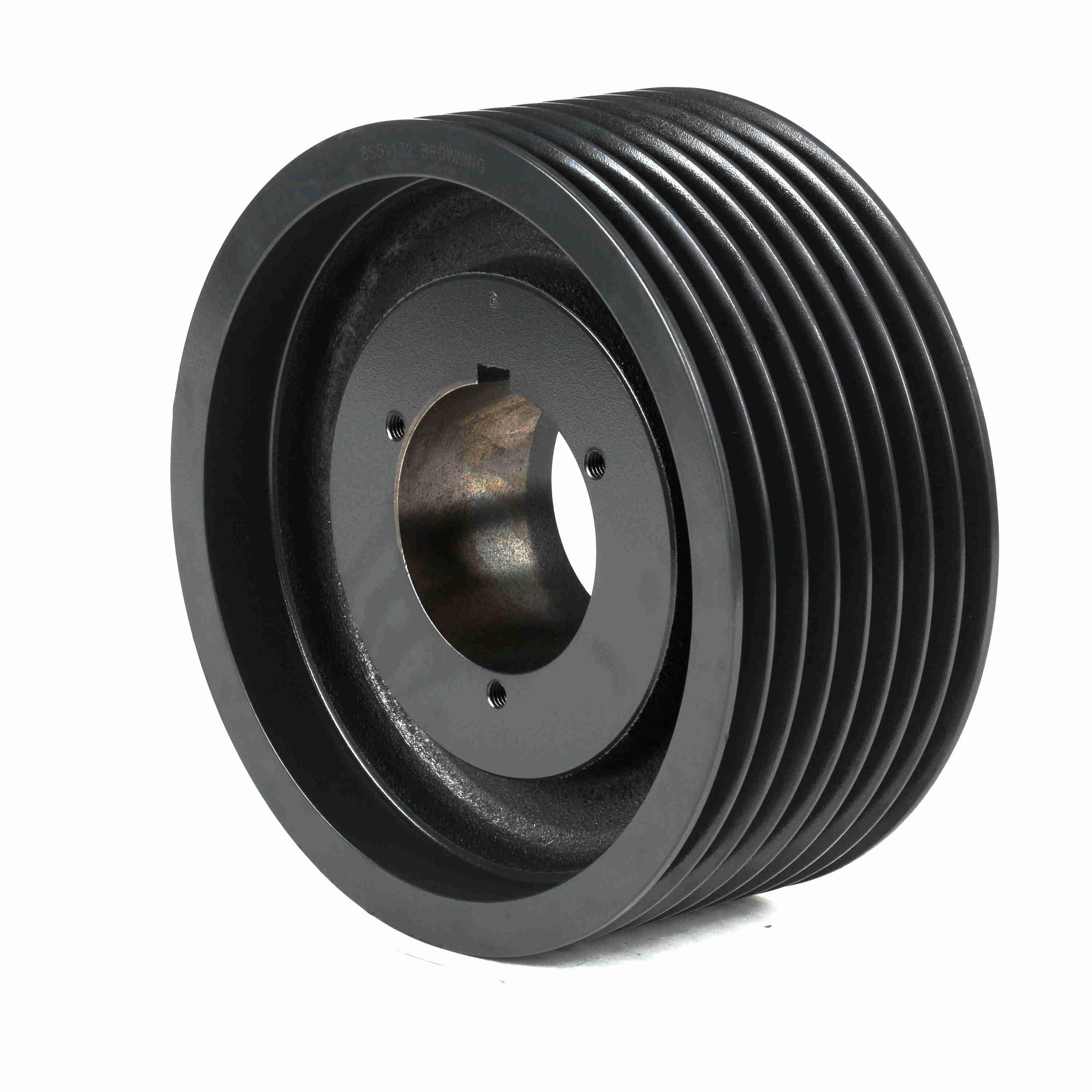

BROWNING 1062306 8S5V132 V-Belt Sheave, Multiple, Bushed Bore, 8 Groove, Cast Iron
Get it by Monday, Dec 22
€1,509.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 1.69" to 4.25" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1 11/16" to 4 1/4" |
| Bushing Type | S1 |
| Face Width | 5 13/16" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| No. Of Grooves | 8 |
| Outside Dia. | 13 1/5" |
| Overall Length | 5 5/16" |
| Pitch Dia. | 13.1" |
| Suitable For Use With | Gripbelt 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 15 Arm |
| Weight | 35.866 Kg |
Shipping Info:
| Ship weight (kg) | 35.55 |
| Ship height (cm) | 33.53 |
| Ship length (cm) | 13.49 |
| Ship width (cm) | 33.53 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1061803 | 9" | 1.38" to 3.625" | 4 7/16" | Type 15 Web | Split Taper | Cast Iron | 5 13/16" | €1,088.73 | |
 |

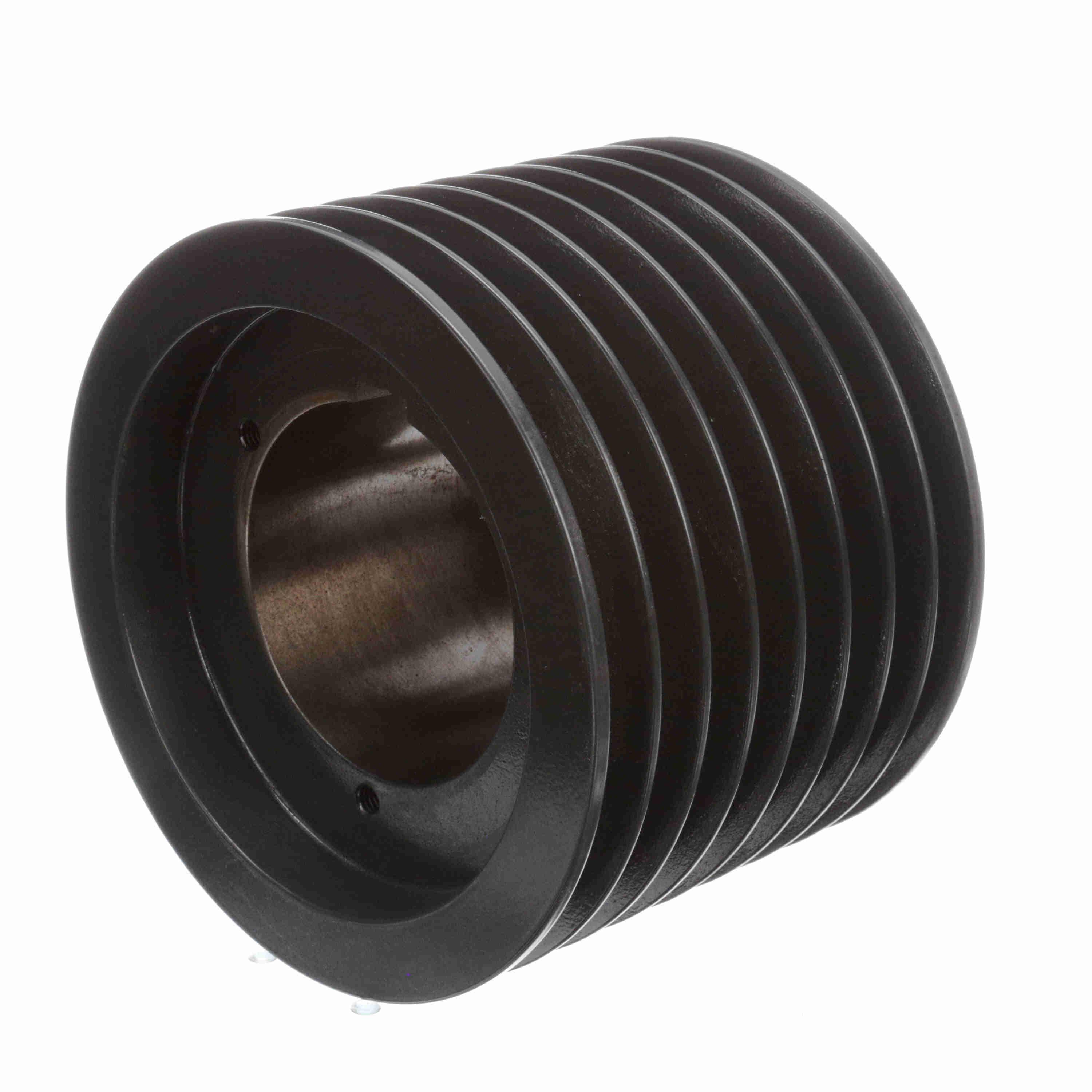

1061662 | 8" | 1.38" to 3.625" | 4 7/16" | Type 15 Web | Split Taper | Cast Iron | 5 13/16" | €941.42 | |
 |
1061878 | 9 1/4" | 1.69" to 4.25" | 6" | Type 15 Web | Split Taper | Cast Iron | 5 13/16" | €1,031.17 | |
 |
1062017 | 10.3" | 1.69" to 4.25" | 6" | Type 15 Web | Split Taper | Cast Iron | 5 13/16" | €1,343.16 | |
 |

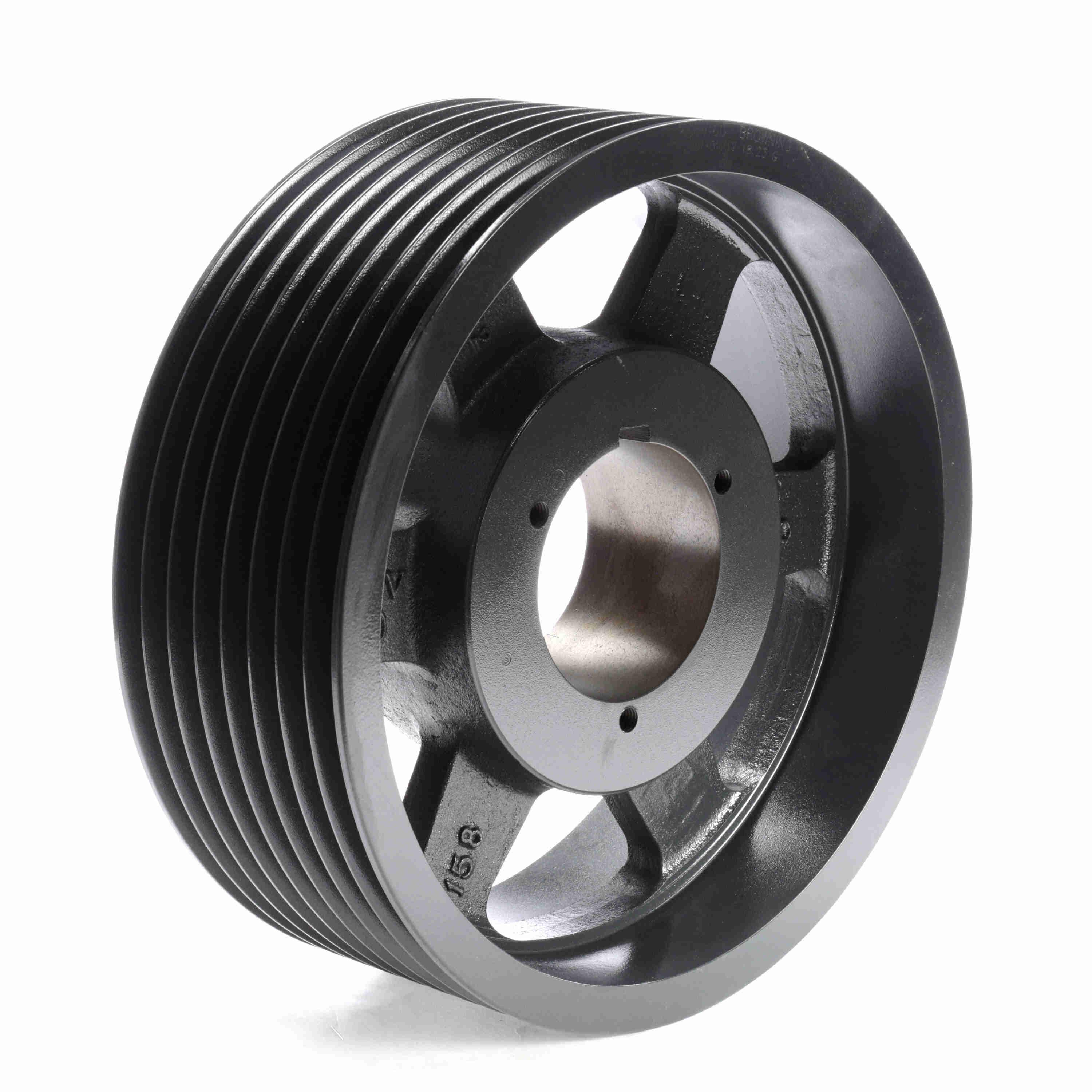

1062587 | 21 1/5" | 2.38" to 5.5" | 5 5/16" | Type 13 Arm | Split Taper | Cast Iron | 5 13/16" | €3,126.41 | |
 |
1062629 | 25" | 2.38" to 5.5" | 7 11/16" | Type 13 Arm | Split Taper | Cast Iron | 5 13/16" | €3,338.09 | |
 |
1061944 | 9 3/4" | 1.69" to 4.25" | 6" | Type 15 Web | Split Taper | Cast Iron | 5 13/16" | €1,264.50 |
