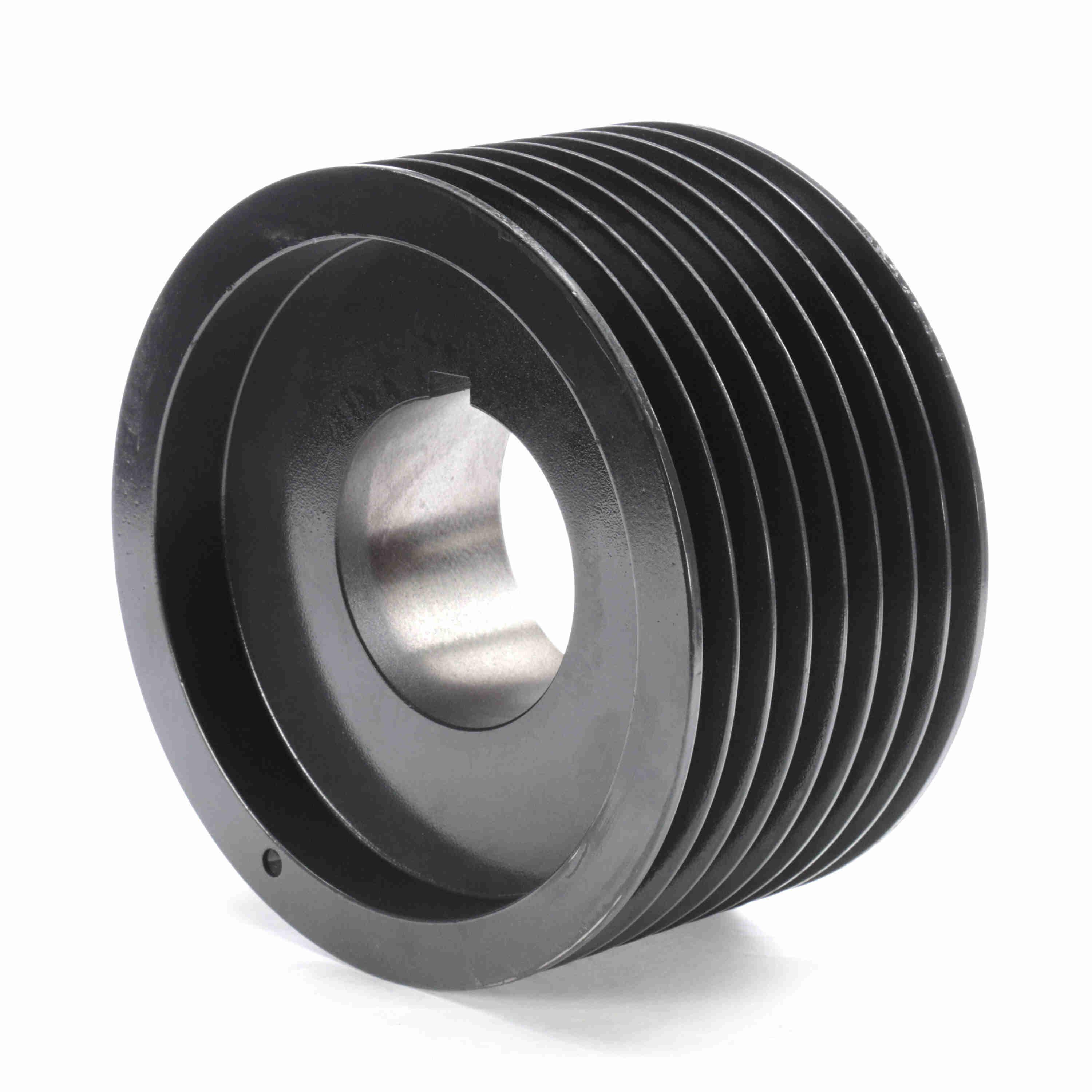

BROWNING 1062082 8S5V109 V-Belt Sheave, Multiple, Bushed Bore, 8 Groove, Cast Iron, 10.9 in OD, 1.69 to 4.25 in Bore Dia, 10.8 in Pitch Dia, S1 Bushing Type, Type 15 Web
Get it by Friday, Aug 14
€1,374.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Bore Dia. | 1.69" to 4.25" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1 11/16" to 4 1/4" |
| Bushing Type | S1 |
| Face Width | 5 13/16" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 10 4/5" |
| Min. Pitch Dia. | 10 4/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 8 |
| Outside Dia. | 10.9" |
| Overall Length | 6" |
| Pitch Dia. | 10 4/5" |
| Product Datasheet | browning-1097849.pdf |
| Suitable For Use With | Gripbelt 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 15 Web |
Shipping Info:
| Ship weight (kg) | 31.12 |
| Ship height (cm) | 27.69 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 27.69 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Bushing Type | Bushing Bore Range | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1061803 | 8.9" | 1.38" to 3.625" | Type 15 Web | - | - | R2 | 1 3/8" to 3 5/8" | Cast Iron | €1,088.73 | |
 |
1061662 | 7.9" | 1.38" to 3.625" | Type 15 Web | - | - | R2 | 1 3/8" to 3 5/8" | Cast Iron | €941.42 | |
 |
1061878 | 9.15" | 1.69" to 4.25" | Type 15 Web | - | - | S1 | 1 11/16" to 4 1/4" | Cast Iron | €1,031.17 | |
 |
1062017 | 10 1/5" | 1.69" to 4.25" | Type 15 Web | 10 1/5" | 10 1/5" | S1 | 1 11/16" to 4 1/4" | Cast Iron | €1,343.16 | |
 |
1062587 | 21.1" | 2.38" to 5.5" | Type 13 Arm | - | - | U1 | 2 3/8" to 5 1/2" | Cast Iron | €3,126.41 | |
 |
1062629 | 24.9" | 2.38" to 5.5" | Type 13 Arm | - | - | U1 | 2 3/8" to 5 1/2" | Cast Iron | €3,338.09 | |
 |
1061944 | 9.65" | 1.69" to 4.25" | Type 15 Web | - | - | S1 | 1 11/16" to 4 1/4" | Cast Iron | €1,264.50 |
