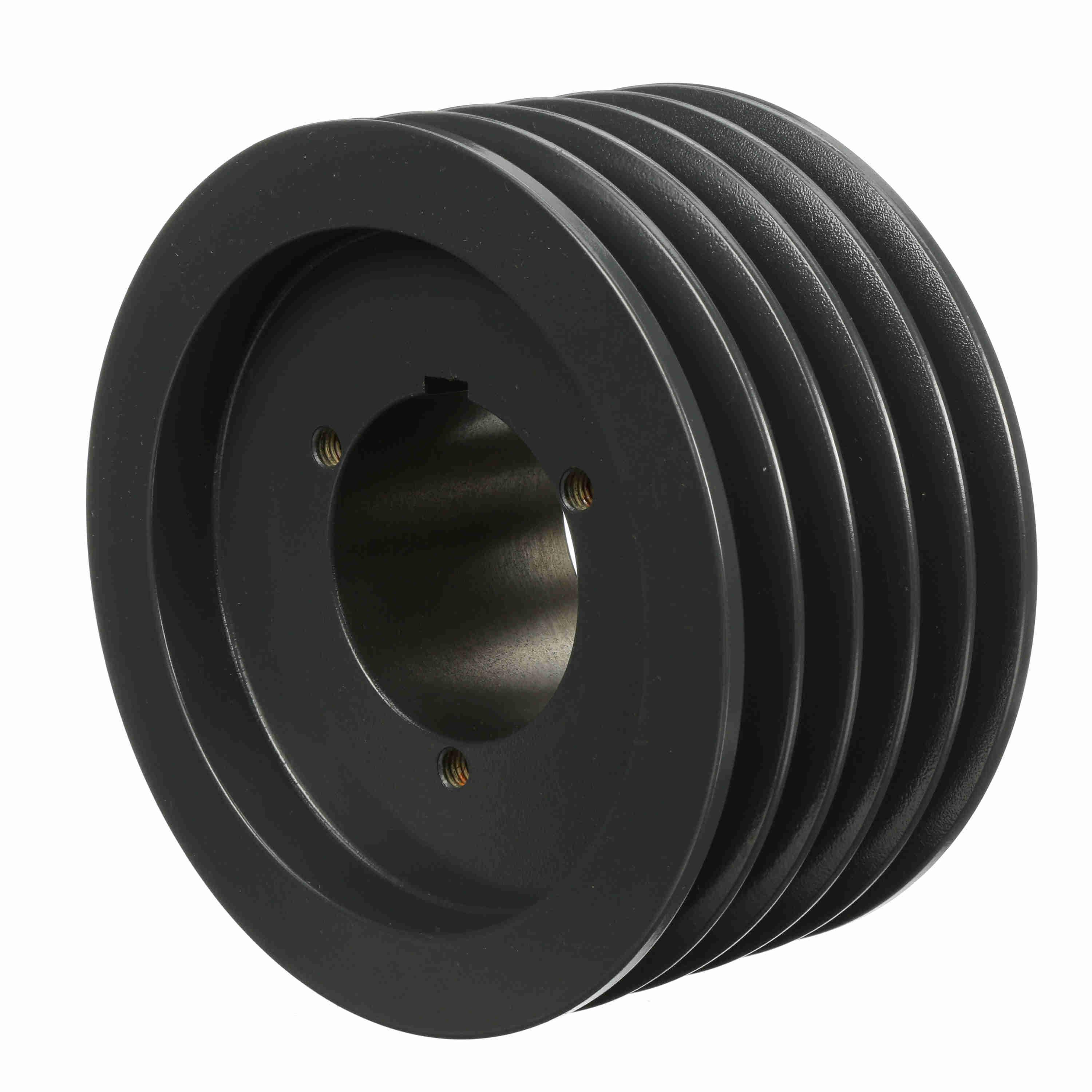

BROWNING 1061589 5Q5V75 V-Belt Sheave, Multiple, Bushed Bore, 5 Groove, Cast Iron, 7-1/2 in OD, 1 to 2-5/8 in Bore Dia, Q2 Bushing Type
Get it by Tuesday, Aug 18
€620.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 1" to 2 5/8" |
| Bore Type | Split Taper |
| Bushing Type | Q2 |
| Face Width | 3 3/4" |
| Hub Projection | 3/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 7 2/5" |
| Min. Pitch Dia. | 7 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 5 |
| Outside Dia. | 7 1/2" |
| Overall Length | 3 11/32" |
| Pitch Dia. | 7 2/5" |
| Product Datasheet | browning-1097849.pdf |
| Suitable For Use With | Gripbelt 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 11.48 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 8.48 |
| Ship width (cm) | 19.05 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Bushing Type | Hub Projection | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1062678 | 27.9" | 1.69" to 4.25" | Type 13 Arm | - | - | S1 | - | Cast Iron | €2,501.62 | |
 |
1062736 | 37 2/5" | 2.38" to 5.5" | Type 13 Arm | - | - | U0 | - | Cast Iron | €3,550.99 | |
 |
1061407 | 5 4/5" | 1" to 2 5/8" | Type 13 Solid | - | - | Q2 | - | Cast Iron | €789.53 | |
 |
1061241 | 4 1/2" | 1" to 2 5/8" | Type 5 | 4 1/2" | 4 1/2" | Q2 | - | Cast Iron | €824.06 | |
|
1062603 | 24.9" | 1.69" to 4.25" | Type 13 Arm | - | - | S1 | - | Cast Iron | €2,659.82 | |
 |
1061522 | 7" | 1" to 2 5/8" | Type 13 Web | - | - | Q2 | - | Cast Iron | €654.35 | |
 |
1061324 | 5.1" | 1" to 2 5/8" | Type 5 | - | - | Q2 | - | Cast Iron | €541.35 |
