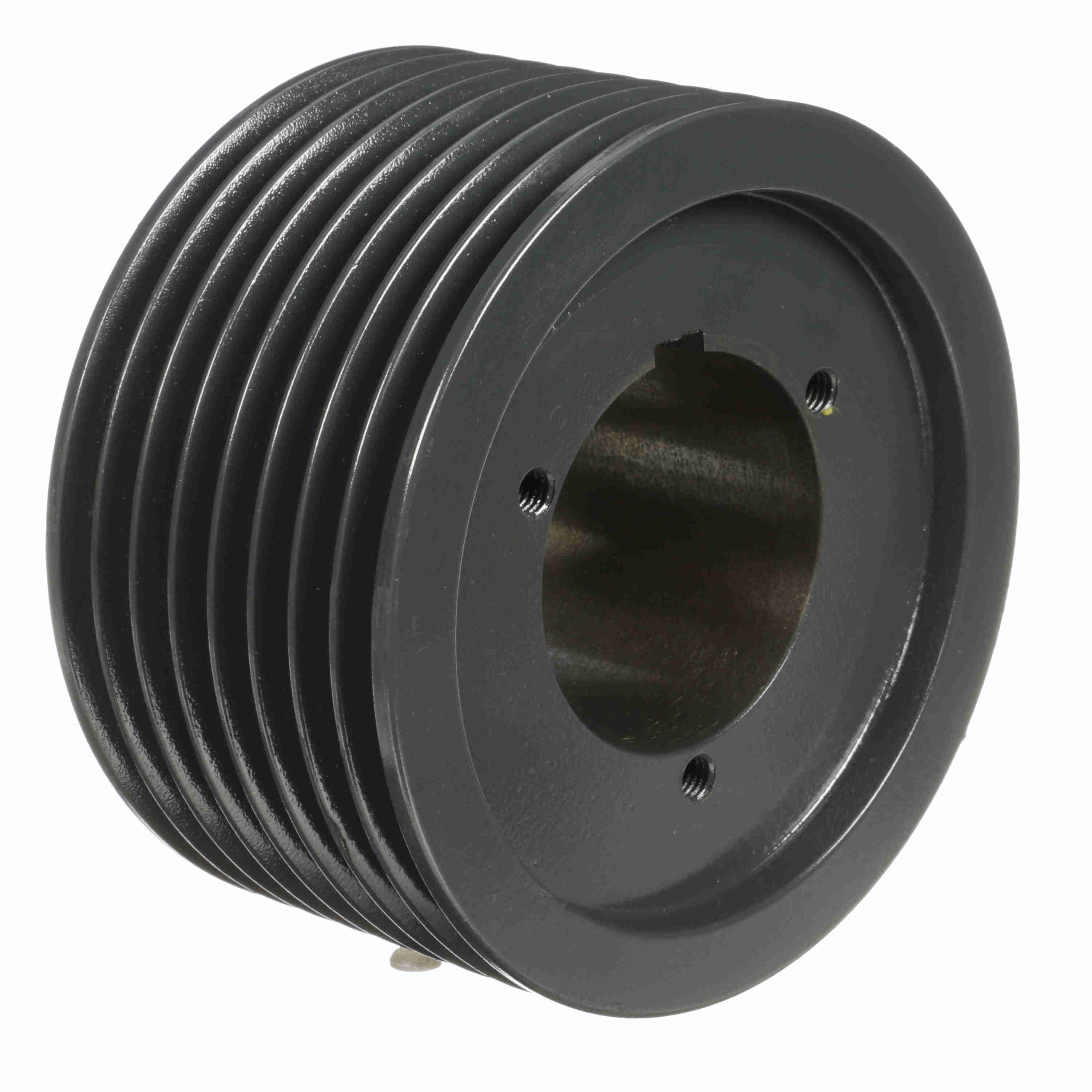

BROWNING 1060789 8R3V80 V-Belt Sheave, Multiple, Bushed Bore, 8 Groove, Cast Iron, 8 in OD, 1.13 to 3.75 in Bore Dia, 7.95 in Pitch Dia, R1 Bushing Type, Type 13 Web
Get it by Monday, Aug 17
€841.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 3V Series |
| Bore Dia. | 1.13" to 3.75" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Type | R1 |
| Face Width | 3 17/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| No. Of Grooves | 8 |
| Outside Dia. | 8" |
| Overall Length | 3 59/64" |
| Pitch Dia. | 7.95" |
| Suitable For Use With | Gripbelt 3V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Web |
Shipping Info:
| Ship weight (kg) | 10.55 |
| Ship height (cm) | 9.4 |
| Ship length (cm) | 23.11 |
| Ship width (cm) | 23.11 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Bushing Type | Material | Face Width | Belt Series | No. Of Grooves | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

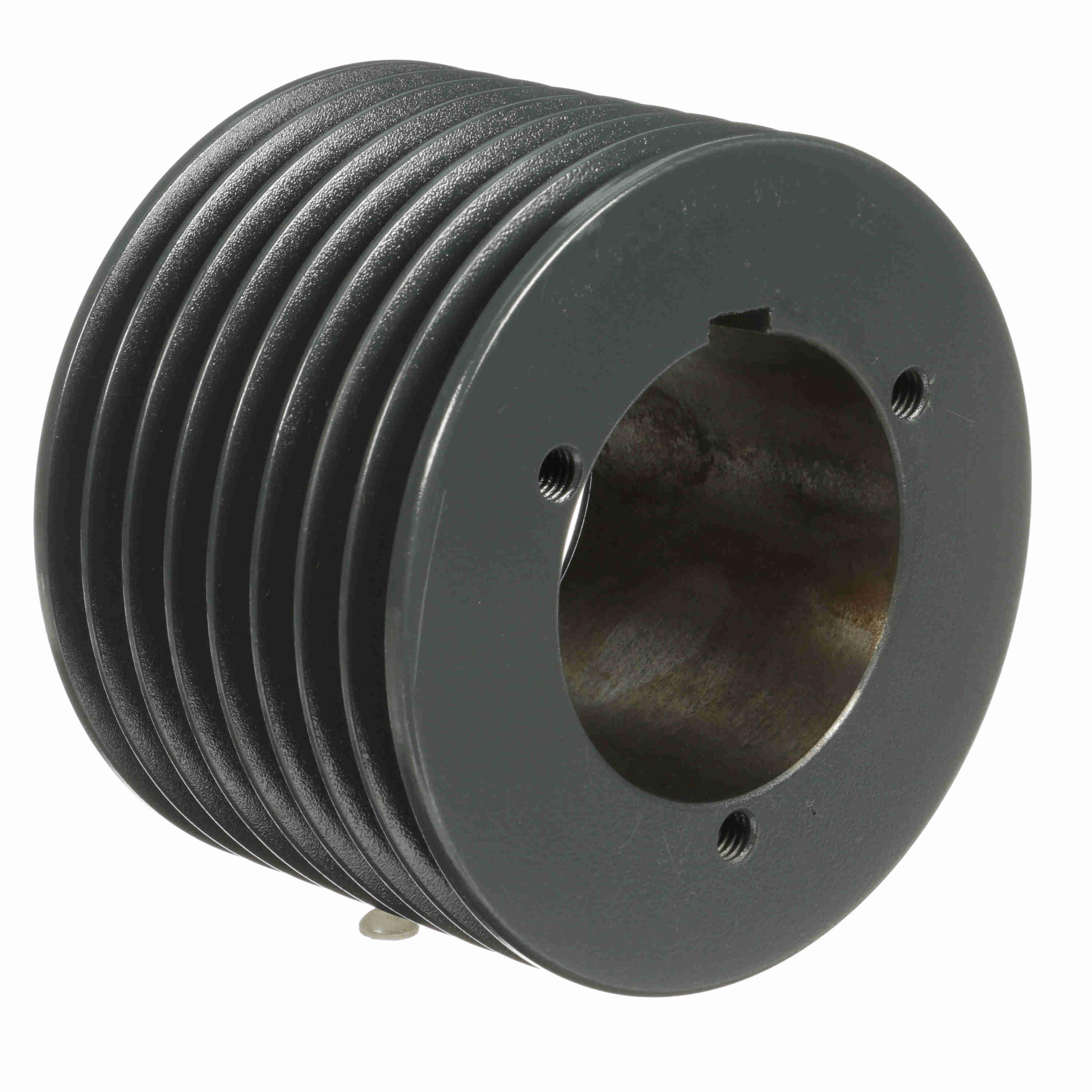

1060243 | 4.95" | 1" to 2 5/8" | Type 5 | Q2 | Cast Iron | 3 17/32" | 3V Series | 8 | €810.90 | |
 |

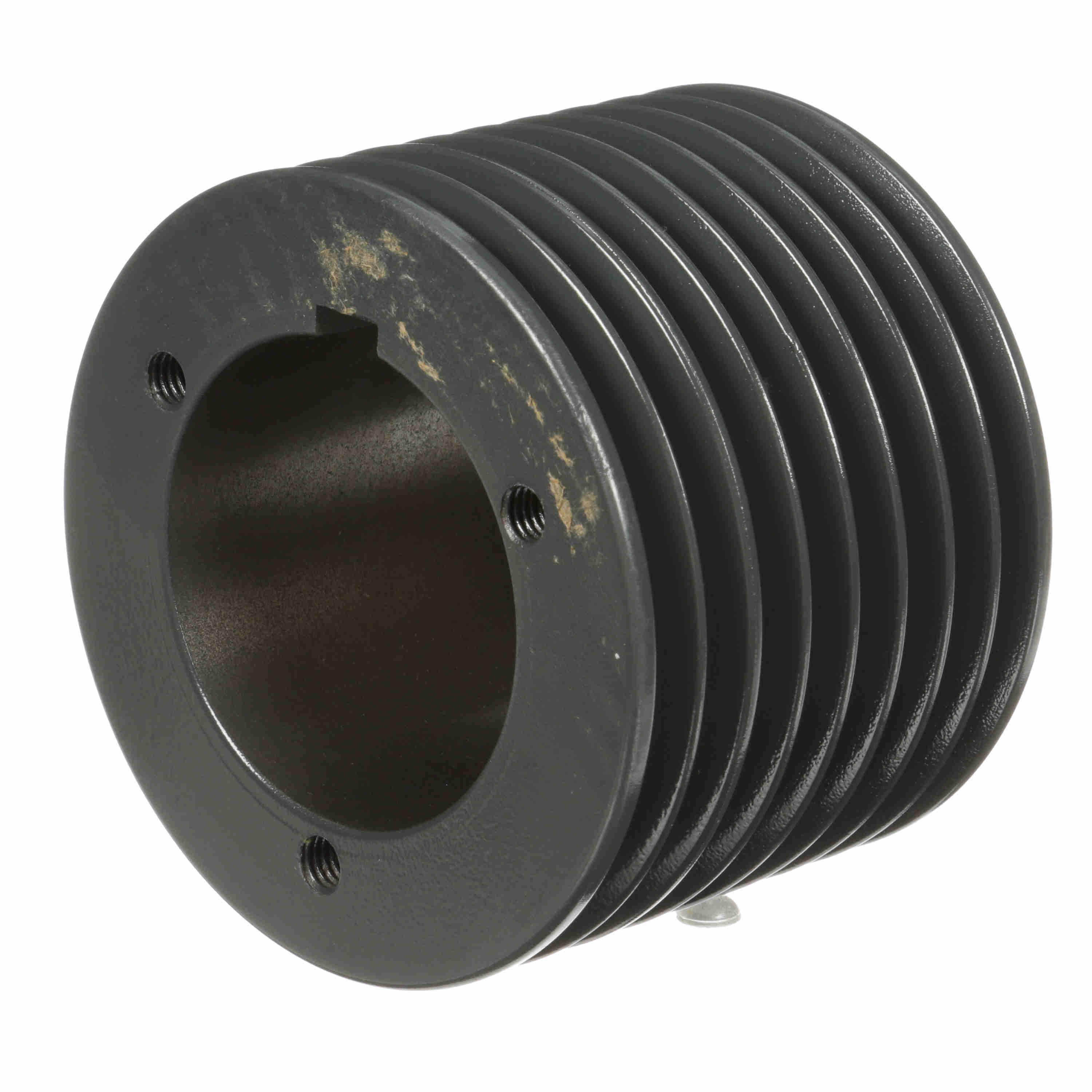

1060144 | 4.7" | 1" to 2 5/8" | Type 5 | Q2 | Cast Iron | 3 17/32" | 3V Series | 8 | €635.83 | |
|
1060862 | 10.55" | 1.13" to 3.75" | Type 13 Arm | R1 | Cast Iron | 3 17/32" | 3V Series | 8 | €1,266.21 | |
 |
1060946 | 13.95" | 1.13" to 3.75" | Type 13 Arm | R1 | Cast Iron | 3 17/32" | 3V Series | 8 | €1,503.51 |
