BROWNING 1059559 3F3V28X7/8 V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron
Item: BA4XRAModel: 1059559Cross Ref: 3F3V28X7/8
7 In Stock
Ships within 2 days via
€332.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 3V Series |
| Bore Dia. | 7/8" to 22/25" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 1 1/2" |
| Hub Dia. | 1 7/8" |
| Hub Projection | 15/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 2 3/4" |
| Min. Pitch Dia. | 2 3/4" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 2 4/5" |
| Overall Length | 1 31/32" |
| Pitch Dia. | 2 3/4" |
| Suitable For Use With | Gripbelt 3V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type F |
| Weight | 0.899 Kg |
Shipping Info:
| Ship weight (kg) | 0.89 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 5 |
| Ship width (cm) | 7.11 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Bore Type | Material | Face Width | Overall Length | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
|
1059831 | 3.35" | 1" | Finished | Cast Iron | 1 1/2" | 1 31/32" | - | €365.87 | |
|

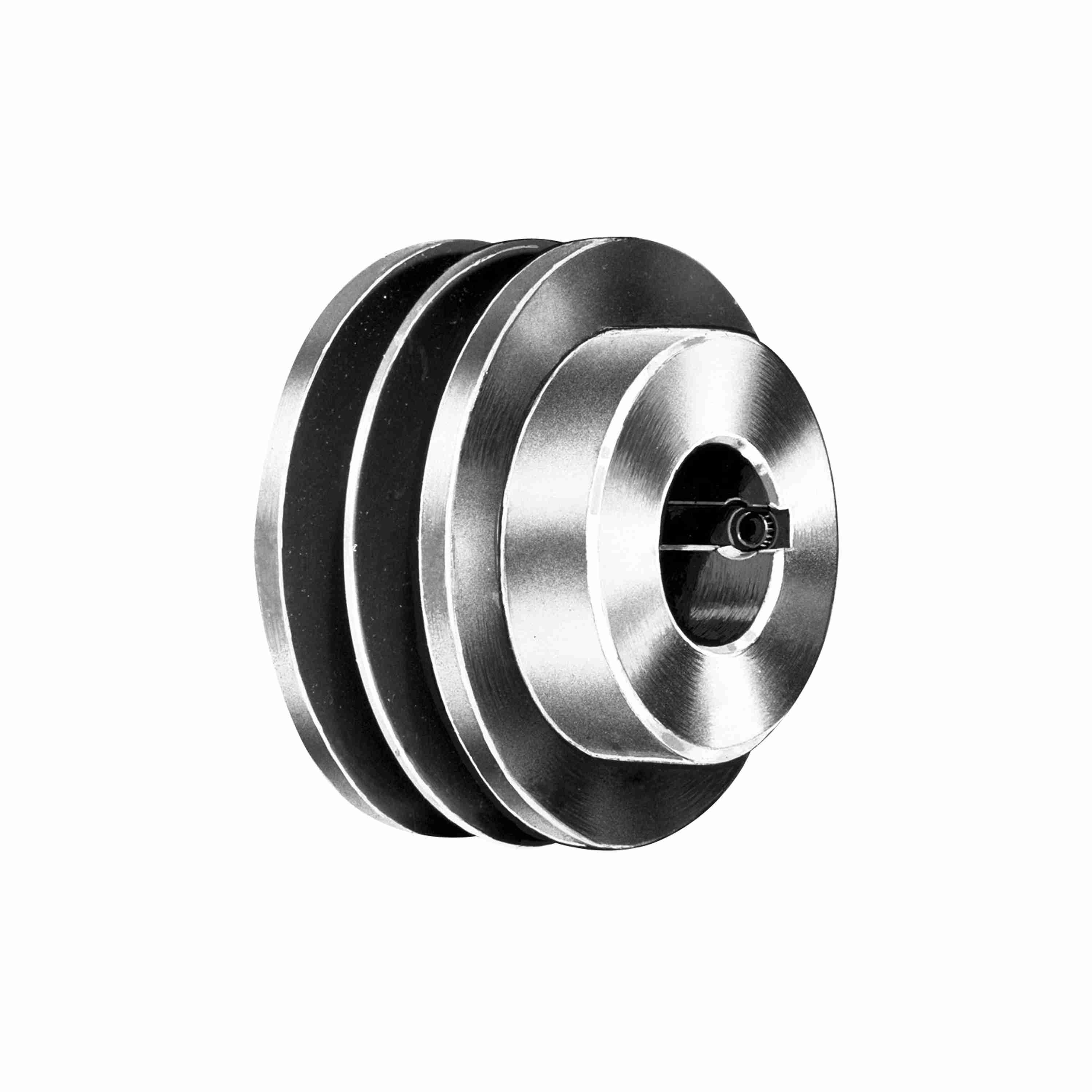

1059468 | 2.65" | 1.125" to 1.13" | Finished | Cast Iron | 1 1/2" | 1 31/32" | Type F | €301.93 | |
 |

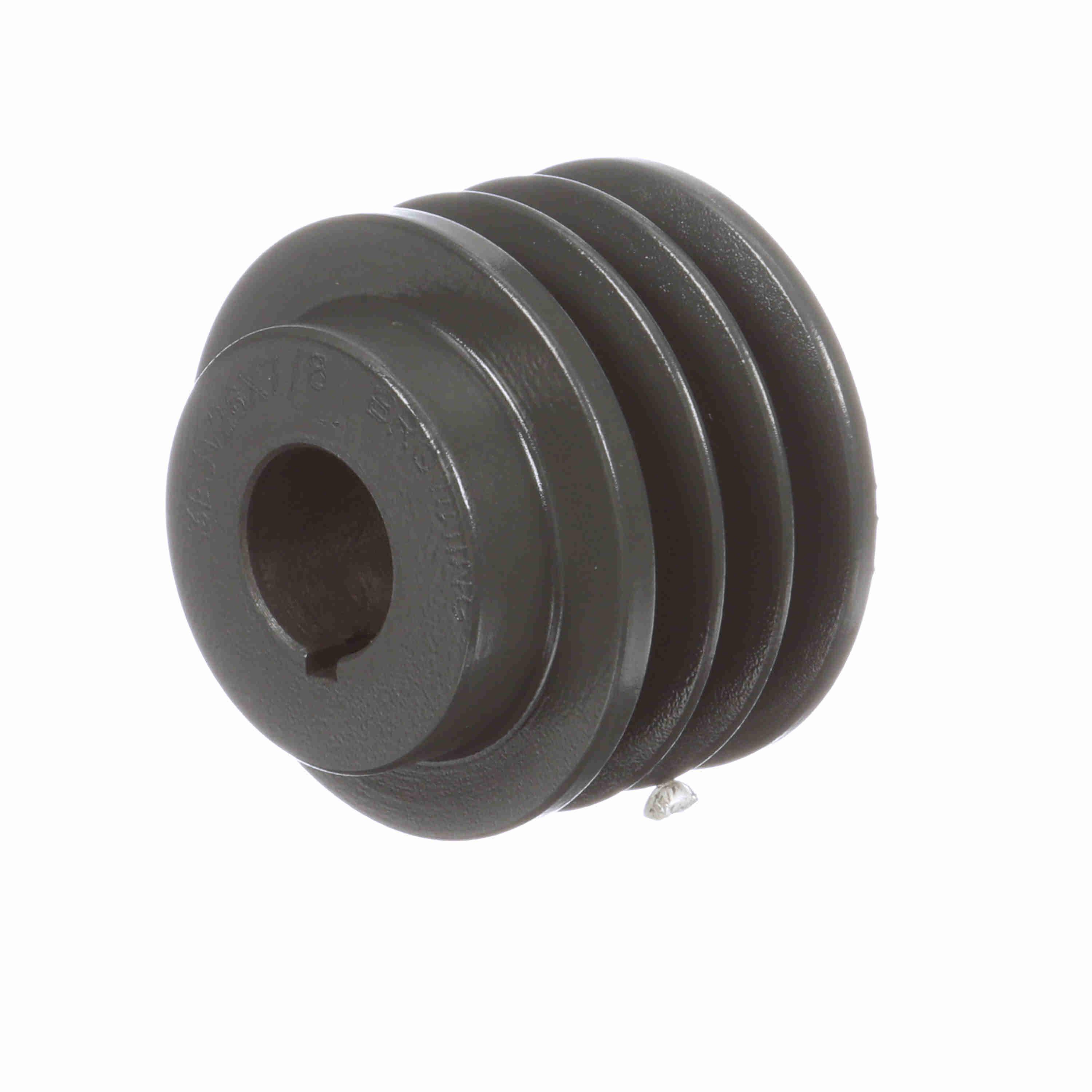

1059443 | 2.65" | 7/8" to 22/25" | Finished | Cast Iron | 1 1/2" | 1 31/32" | Type F | €151.31 | |
 |

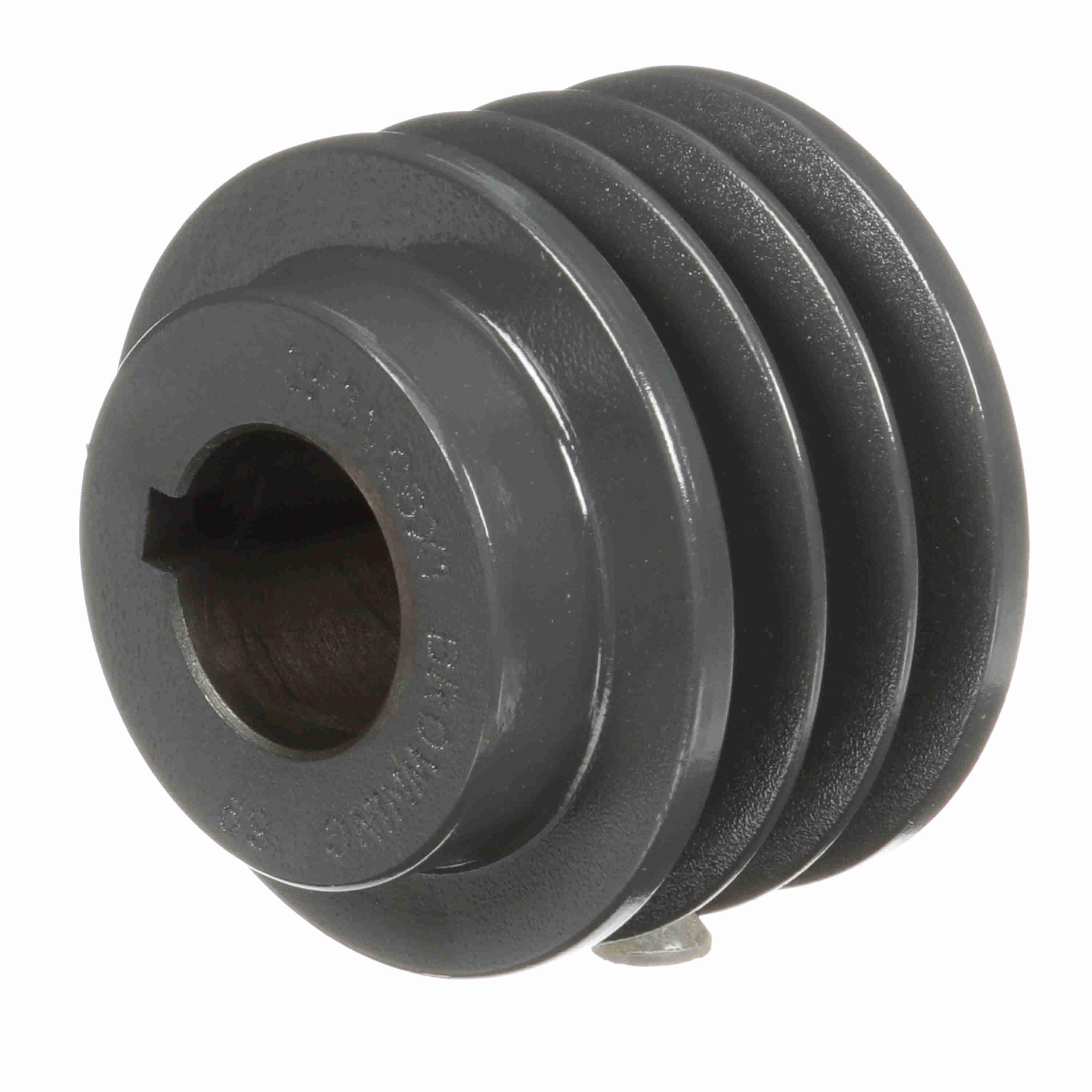

1059450 | 2.65" | 1" | Finished | Cast Iron | 1 1/2" | 1 31/32" | Type F | €147.13 | |
 |

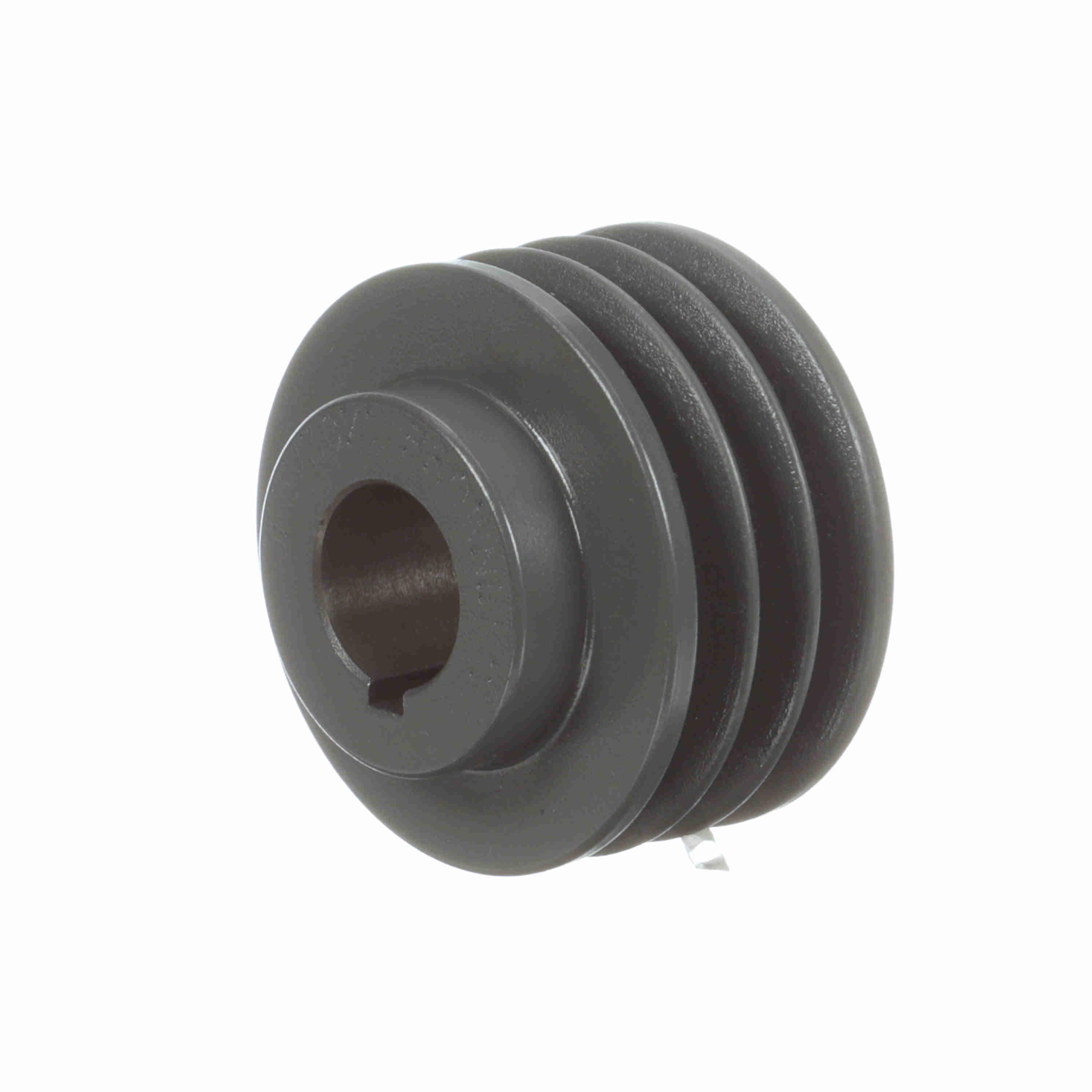

1059658 | 3" | 1" | Finished | Cast Iron | 1 1/2" | 1 31/32" | Type F | €156.45 | |
 |

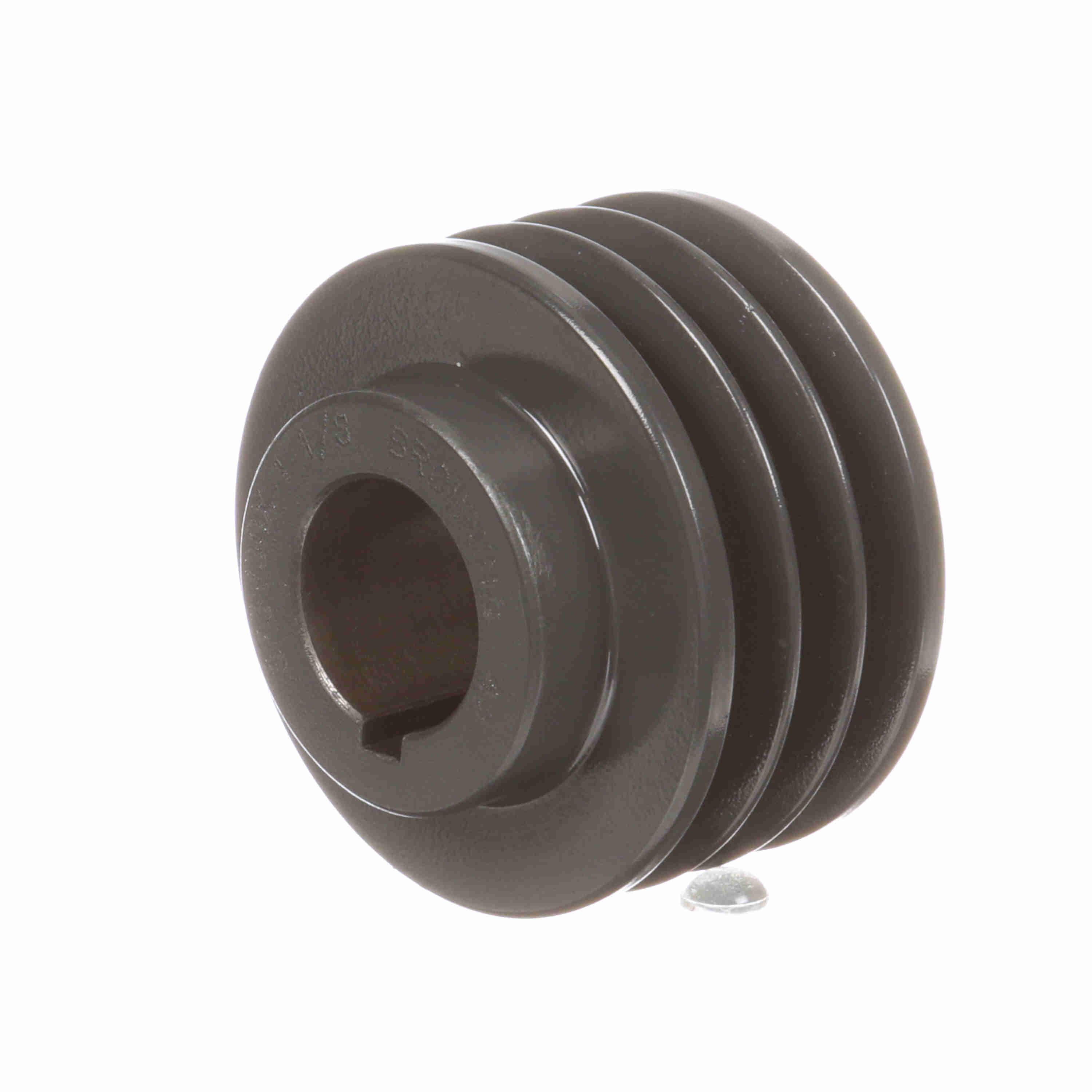

1059666 | 3" | 1.125" to 1.13" | Finished | Cast Iron | 1 1/2" | 1 31/32" | Type F | €302.46 | |
 |

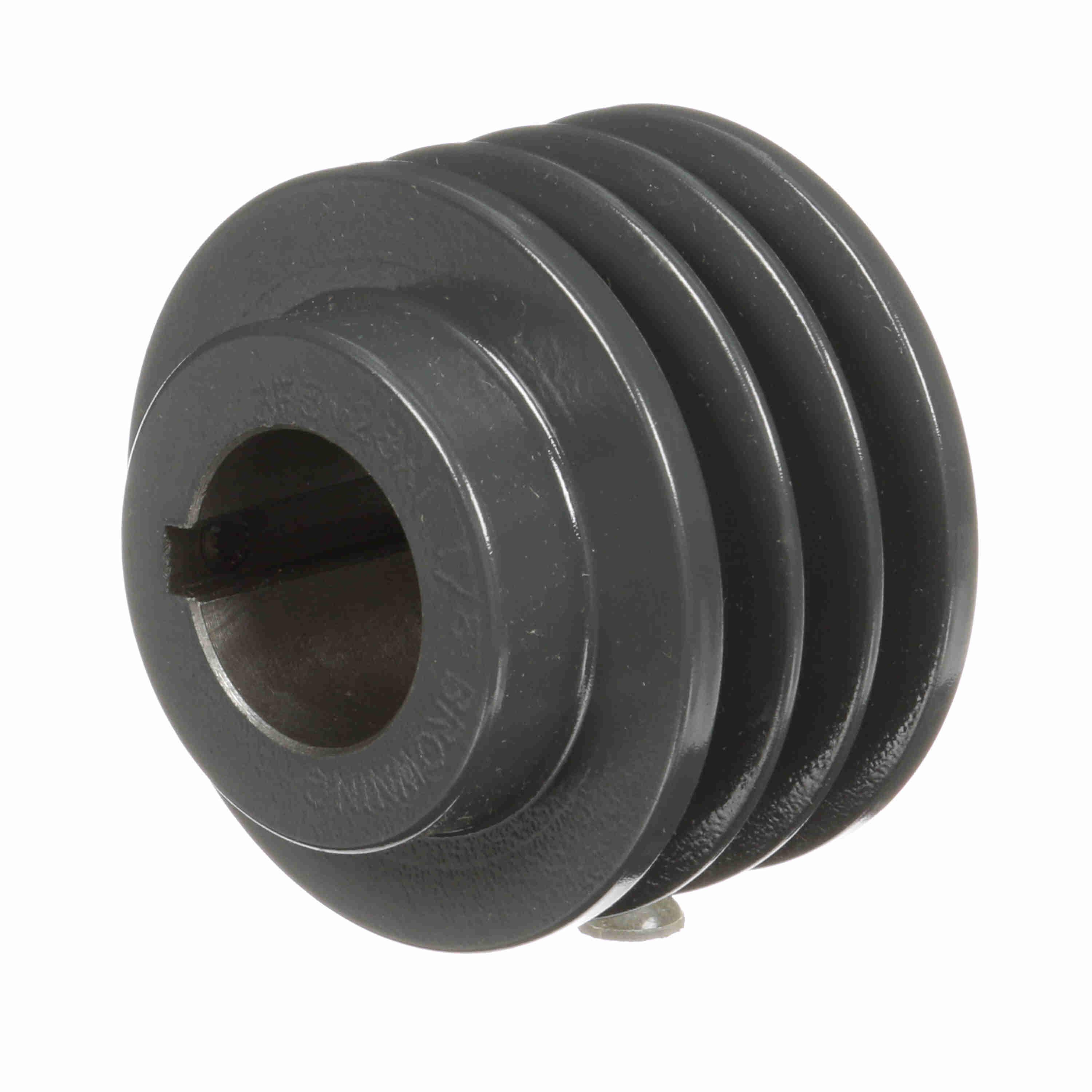

1059575 | 2 4/5" | 1.125" to 1.13" | Finished | Cast Iron | 1 1/2" | 1 31/32" | Type F | €148.74 |
