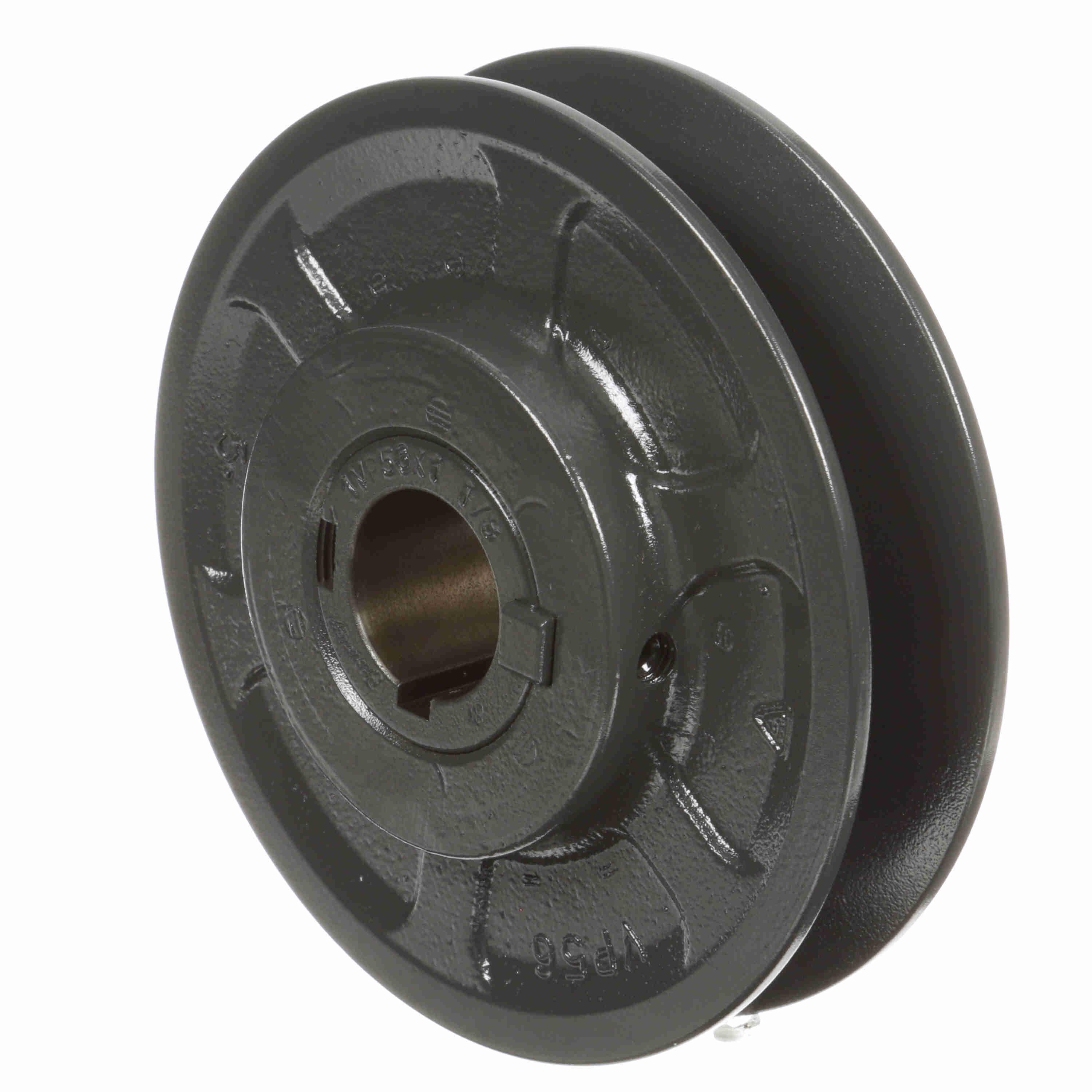

BROWNING 1045517 1VP56X 1 1/8 V-Belt Sheave, Variable Pitch, Finish Bore, 1 Groove, Cast Iron, 5.35 in OD, 1-1/8 in Bore Dia, 3/4 to 1-1/8 in face Width
Item: BA3HLPModel: 1045517Cross Ref: 1VP56X 1 1/8
7 In Stock
Ships within 2 days via
€183.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| 4l/a Pitch Dia. | 4 1/5" to 5 1/5" |
| Adjustment Method | Manual Turn |
| Belt Series | 3L, 4L, A, 5L, B Series |
| Bore Dia. | 1 1/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 3/4" to 1 1/8" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 1 1/8" |
| Max. Pitch Dia. | 5.3" |
| Min. Belt Width | 3/8" |
| Min. Face Width | 3/4" |
| Min. Pitch Dia. | 3.9" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 5.35" |
| Overall Length | 2 5/32" |
| Pitch Dia. (5l/b) | 4 2/5" to 5 2/5" |
| Pitch Dia. 3l | 3.9" to 4.7" |
| Series | VP Series |
| Suitable For Use With | Gripbelt 3L, 4L/A And 5L/B Cross Section FHP V-Belt |
| System Of Measurement | Imperial |
| Type | Type 2 |
Shipping Info:
| Ship weight (kg) | 1.98 |
| Ship height (cm) | 13.59 |
| Ship length (cm) | 5.49 |
| Ship width (cm) | 13.59 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Face Width | Type | Belt Series | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. | 4l/a Pitch Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1045236 | 1/2" | 17/32" to 25/32" | Type 1 | 3L Series | 2.7" | 1 4/5" | 1.8" to 2.7" | - | €86.28 | |
 |
1045426 | 3/4" | 11/16" to 1 1/16" | Type 1 | 3L, 4L, A, 5L, B Series | 4.7" | 3.3" | - | 3 3/5" to 4 3/5" | €144.71 | |
 |
1045293 | 7/8" | 21/32" to 1" | Type 1 | 3L, 4L, A, 5L, B Series | 3 1/5" | 1.7" | - | 2" to 3" | €74.07 | |
 |
2713915 | - | - | - | - | - | - | - | - | €119.79 | |
 |
2713923 | 7/8" | - | - | 3L, 4L, A, 5L, B Series | 4.7" | 3.3" | - | - | €136.57 | |
 |
1045459 | 1 1/8" | 3/4" to 1 1/8" | Type 2 | 3L, 4L, A, 5L, B Series | 4.7" | 3.3" | - | 3 3/5" to 4 3/5" | €136.57 | |
 |
1702885 | 1 5/8" | 7/8" to 1 1/4" | Type 2 | - | - | - | - | 5.9" to 6.9" | €451.49 |
