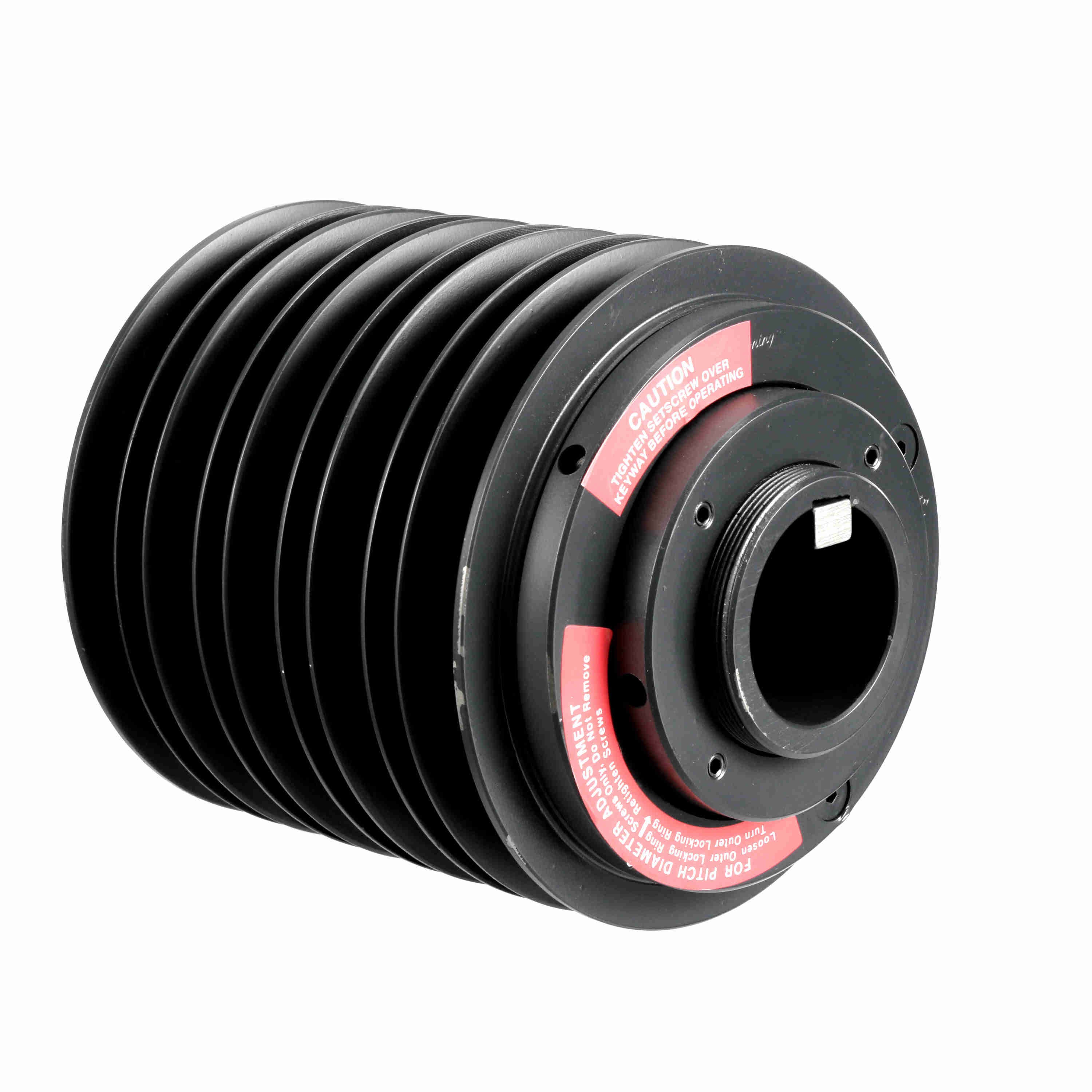

BROWNING 1020114 5MVP45B59X 1 7/8 V-Belt Sheave, Multiple, Variable Pitch, Finish Bore, 5 Groove, Cast Iron, 6.18 in OD, 1-7/8 in Bore Dia, 5.7 to 4.6 in A/6.2 to 4.8 in B Pitch Dia
Get it by Friday, Aug 14
€2,736.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | A, B Series |
| Bore Dia. | 1 7/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 5 5/16" to 5 11/16" |
| Hub Projection | 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 5.688" |
| Max. Pitch Dia. | 5.9" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 5.313" |
| Min. Pitch Dia. | 4 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 5 |
| Outside Dia. | 6.18" |
| Overall Length | 7" |
| Pitch Dia. | 4.6" to 5.7" |
| Pitch Dia. (b) | 4 4/5" to 6 1/5" |
| Product Datasheet | browning-1019868.pdf |
| Series | MVP Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 11.26 |
| Ship height (cm) | 15.7 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 15.7 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Face Width | Bore Dia. | Belt Series | Max. Pitch Dia. | Min. Pitch Dia. | Bore Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1019967 | 4.1" to 5.2" | 5 5/16" to 5 11/16" | 1 7/8" | A, B Series | 5 2/5" | 3.9" | Finished | 1/4" | €4,978.78 | |
|
1020403 | 5.6" to 6.7" | 5 5/16" to 5 11/16" | 2 1/8" | A, B Series | 6.9" | 5 2/5" | Finished | 1/4" | €2,995.58 | |
|
1020494 | 6.1" to 7.2" | 5 5/16" to 5 11/16" | 1 7/8" | A, B Series | 7 2/5" | 5.9" | Finished | 1/4" | €3,269.98 | |
 |
1020502 | 6.1" to 7.2" | 5 5/16" to 5 11/16" | 2 1/8" | A, B Series | 7 2/5" | 5.9" | Finished | 1/4" | €2,994.49 | |
 |
1020601 | 7.1" to 8.2" | 5 5/16" to 5 11/16" | 1 1/8" to 1 5/8" | A, B Series | 8 2/5" | 6.9" | Bushed | 1/4" | €6,415.69 | |
|
1020718 | 7.9" to 10.1" | 7 3/4" to 8 11/32" | 2 1/8" | C Series | 9.7" | 7 1/2" | Finished | 1/4" | €8,505.13 | |
 |
1020106 | 4.6" to 5.7" | 5 5/16" to 5 11/16" | 1 5/8" | A, B Series | 5.9" | 4 2/5" | Finished | 1/4" | €2,709.87 |
